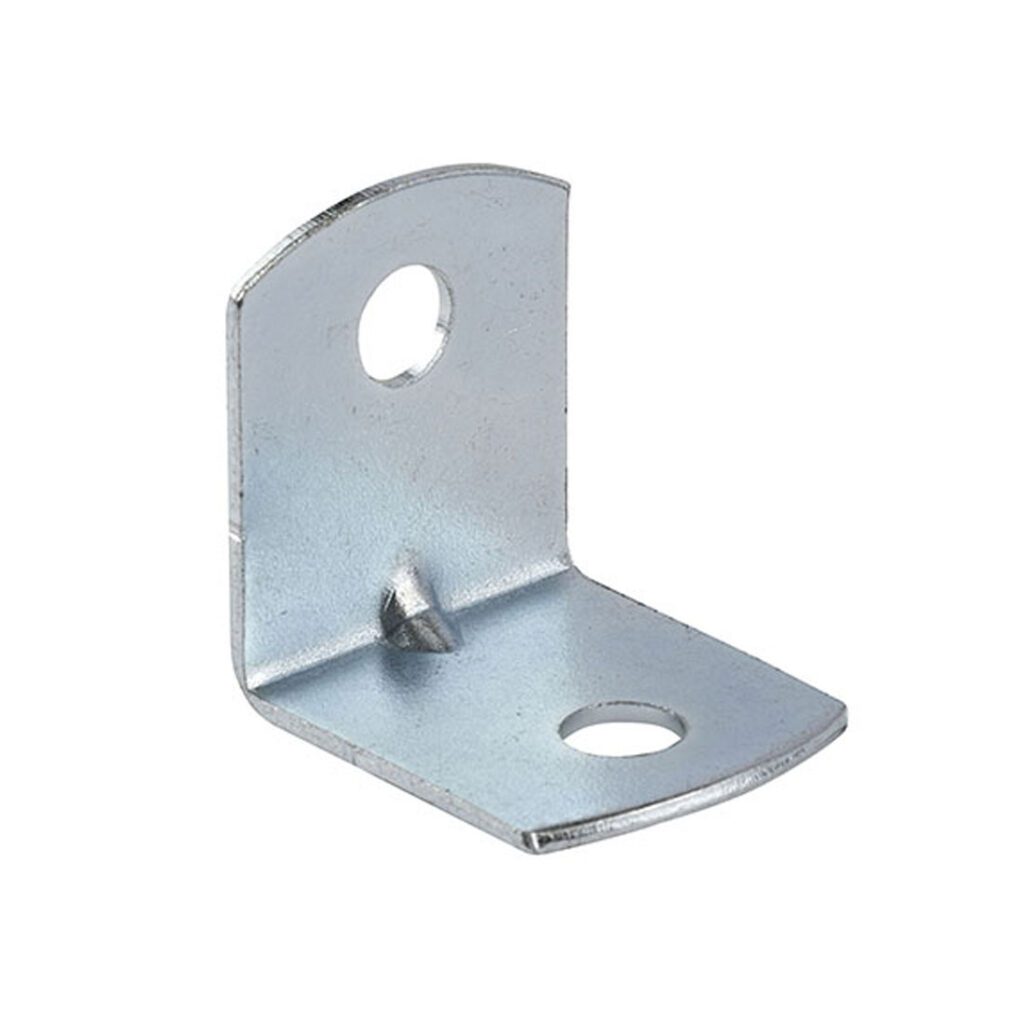

ANGLE BRACKETS

A mild steel angle bracket for suspending lightweight ceilings and services.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Can be Attached to any Base Material
Small and Lightweight
High Strength
Flexible Positioning
Simple Installation

Data SheetData Sheet

Product Information

Concrete
Brick
Blocks
Wood

  • Corner Brace for a Variety of Applications

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Size
Height mm
Length (L) mm
Width mm
Thickness mm
Hole Diameter mm
Rec Vertical Load kN
AB2020 20x20x17 20 20 17 1.2 2 x 4.7 0.2

Installation Instructions

Drill 6.0mm diameter hole x 35mm deep.

Clean hole by brushing and blowing.

Insert NP06 Nylon plug into the hole.

Secure the fixing with 4mm woodscrew.

Attached suspension wire.

>
