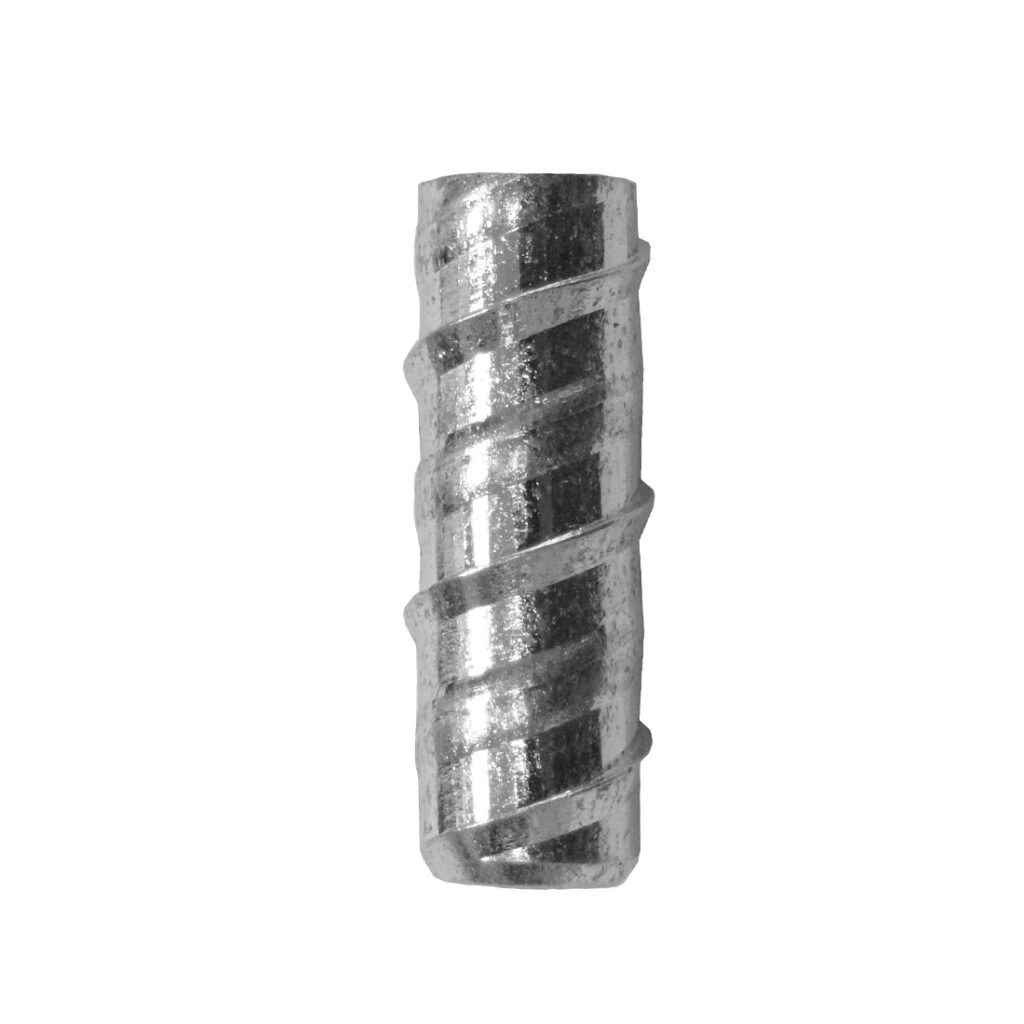

ANKERBOLT DROP IN

A self-tapping anchor providing a flush internal thread. Ideal for threaded rods or bolts. For correct installation the JABDBM10 setting tool must be used.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Undercutting Action
Provides a Flush Fixing
Zinc Plated Minimum 5µm

Product Information

Uncracked Concrete¦Hollow Concrete Planks¦ Masonry¦Aerated Concrete¦Wood

  • Suspending Threaded Rods and Screws¦M & E applications

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Range Data

Part Number
Internal Thread mm
Internal Threaded Length (Lth) mm
Fixture Clearance Hole (df) mm
Drill Diameter mm
Outside / Drill Diameter (d0) mm
Anchor Length (LH) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Driver Type (A/F) mm
Tightening Torque (Tinst) Nm
JABDBM10 M10 13 12 13 15 32 50 40 6 17

Installation Instructions

Drill correct diameter hole to correct depth.

Blow out dust and drilling debris from hole.

Insert anchor into concrete using suitable impact wrench.

Tighten with torque wrench to recommended torque.

>
