ANKERNUTS

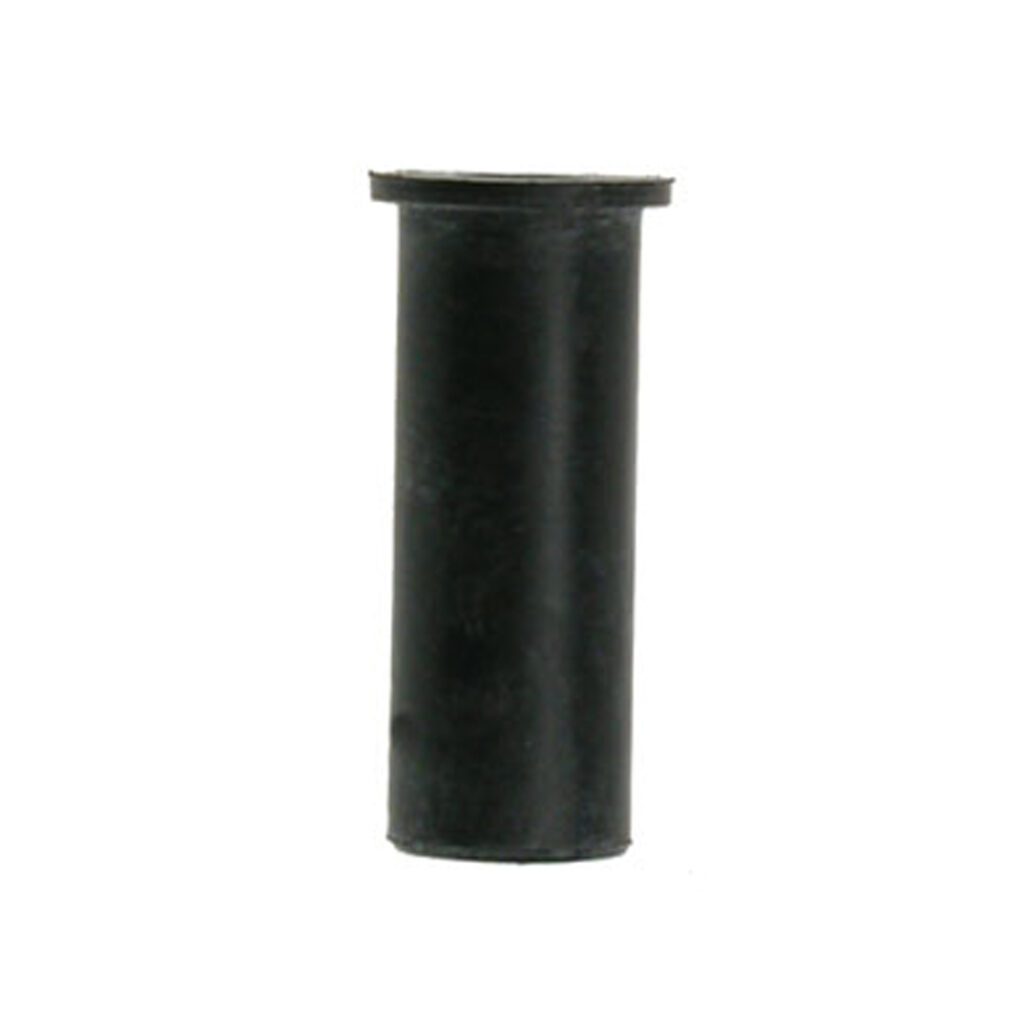

An ankernut is a synthetic rubber sleeve (EPDM) with a brass threaded insert suitable for use in hollow materials and occasional use in solid materials.

Material: EDPM rubber
For Use in Hollow Materials And Occasional Use In Solid Materials
Flange Head
Ideal For Irregular Shaped Holes
Vibration Resistant
Synthetic Rubber Sleeve (EPDM) With Brass Threaded Insert

Data SheetData Sheet

Product Information

Hollow Concrete Planks
Hollow Concrete Blocks
Perforated Bricks
Steel Sections

  • Electrical Fittings
  • Pictures
  • Curtain Rods
  • Wall Cupboards
  • Skirting Boards

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Hole Diameter mm
Wall Thickness mm
Length (L) mm
Flange Thickness mm
Flange Diameter mm
Tightening Torque (Tinst) Nm
LNN03024 3 8 2.0-15.0 24 1 11 1
LNN04011 4 8 0.4-2.0 13 1 11 1
LNN04024 4 8 2.0-15.0 25 1 11 1
LNN05015 5 10 0.4-4.0 14 1 13 1.8
LNN05025 5 10 8.0-16.0 25 1.3 14 1.8
LNN05040 5 10 20.0-30.0 40 1.3 14 1.8
LNN06015 6 13 0.4-3.0 15 1.3 16 4
LNN06025 6 13 6.0-12.0 25 1.3 16 4
LNN06035 6 13 12.0-25.0 35 1.3 16 4
LNN06050 6 13 25.0-40.0 50 1.3 16 4
LNN08025 8 18 4.0-10.0 25 1.3 22 8
LNN08050 8 18 25.0-35.0 50 1.6 20 8
LNN10055 10 20 25.0-35.0 55 1.3 22.5 10
LNN12075 12 24 35.0-45.0 75 1.3 27 15
LNN12125 12 24 35.0-45.0 125 1.3 27 15

Installation Instructions

Drill correct diameter hole through into cavity.

Insert Ankernut into drilled hole.

Position fixture over Ankernut and insert correct size screw.

Tighten screw to recommended torque to expand Ankernut and clamp fixture.

>
