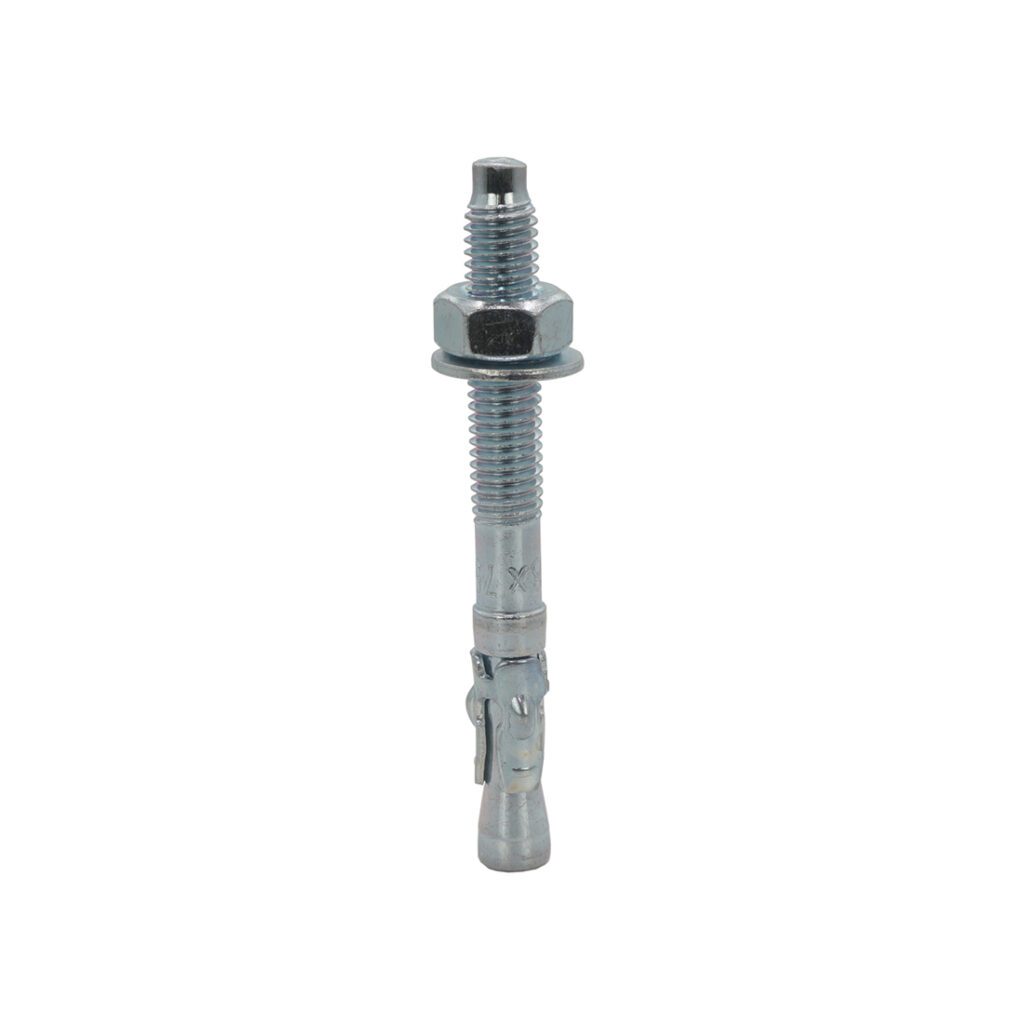

ETA OPTION 7 THROUGHBOLTS BZP

A throughbolt with an Option 7 European Technical Approval suitable for use in non-cracked concrete over C20/25.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
Three Way Expansion Sleeve
Reaction To Fire Class A1
Through Fixing
Zinc Plated Min. 5μm
Medium to High Performance
Wide Range Of Sizes

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
UKCA accreditation

Product Information

Concrete C20/25 to C50/60
Non-Cracked Concrete

  • Metal Structures
  • Brackets
  • Machines
  • Racking
  • Railings

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

Standard Embedment Depth

Part Number
Size of Thread
Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Effective Embedment Depth (hef) mm
Max Fixture Thickness (tfix) mm
Washer Nut Thickness (tw+n) mm
Total Length (L) mm
Thread Length (Lth) mm
Width Across Flats (A/F) mm
Washer Outer Diameter (d2) mm
Tightening Torque (Tinst) Nm
Description
AWA06080 M6 100 6 55 7 40 23 8 80 45 10 12 7
AWA06060 M6 100 6 55 7 40 3 8 60 25 10 12 7
AWA08050 M8 110 8 - 9 - - 10 50 17 13 16 20 Not included in the product’s ETA.
AWA08065 M8 110 8 - 9 - - 10 65 22 13 16 20
AWA08075 M8 110 8 65 9 50 3 10 75 32 13 16 20
AWA08090 M8 110 8 65 9 50 18 10 90 46 13 16 20
AWA08100 M8 110 8 65 9 50 28 10 100 50 13 16 20
AWA08115 M8 110 8 65 9 50 43 10 115 65 13 16 20
AWA08130 M8 110 8 65 9 50 58 10 130 80 13 16 20
AWA10065 M10 100 10 - 12 - - 13 65 22 17 20 35 Not included in the product’s ETA.
AWA10075 M10 100 10 - 12 - - 13 75 27 17 20 35
AWA10090 M10 100 10 75 12 55 8 13 90 43 17 20 35
AWA10100 M10 100 10 75 12 55 18 13 100 53 17 20 35
AWA10120 M10 100 10 75 12 55 38 13 120 71 17 20 35
AWA10150 M10 100 10 75 12 55 68 13 150 95 17 20 35
AWA12080 M12 130 12 - 14 - - 16 80 32 19 24 55 Not included in the product’s ETA.
AWA12090 M12 130 12 - 14 - - 16 90 35 19 24 55
AWA12100 M12 130 12 85 14 65 5 16 100 44 19 24 55
AWA12110 M12 130 12 85 14 65 15 16 110 53 19 24 55
AWA12120 M12 130 12 85 14 65 25 16 120 63 19 24 55
AWA12140 M12 130 12 85 14 65 45 16 140 83 19 24 55
AWA12160 M12 130 12 85 14 65 65 16 160 95 19 24 55
AWA12180 M12 130 12 85 14 65 85 16 180 95 19 24 55
AWA12200 M12 130 12 85 14 65 105 16 200 95 19 24 55
AWA16105 M16 170 16 - 18 - - 19 105 40 24 30 100 Not included in the product’s ETA.
AWA16125 M16 170 16 - 18 - - 19 125 60 24 30 100
AWA16145 M16 170 16 115 18 85 16 19 145 80 24 30 100
AWA16170 M16 170 16 115 18 85 41 19 170 105 24 30 100
AWA16220 M16 170 16 115 18 85 91 19 220 115 24 30 100
AWA20130 M20 210 20 - 22 - - 22 130 60 30 37 150 Not included in the product’s ETA.
AWA20170 M20 210 20 135 22 105 20 22 170 100 30 37 150
AWA20215 M20 210 20 135 22 105 65 22 215 115 30 37 150
AWA24180 M24 240 24 155 26 120 5 27 180 100 36 44 280
AWA24260 M24 240 24 155 26 120 85 27 260 150 36 44 280

Reduced Embedment Depth

Part Number
Size of Thread
Red. Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Red. Min. Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Red. Effective Embedment Depth (hef) mm
Red. Max. Fixture Thickness (tfix) mm
Washer Nut Thickness (tw+n) mm
Total Length (L) mm
Thread Length (Lth) mm
Width Across Flats (A/F) mm
Washer Outer Diameter (d2) mm
Tightening Torque (Tinst) Nm
Description
AWA06080 M6 100 6 50 7 35 28 8 80 45 10 12 7 Not included in the product’s ETA.
AWA06060 M6 100 6 50 7 35 8 8 60 25 10 12 7 Not included in the product’s ETA.
AWA08050 M8 100 8 45 9 30 3 10 50 17 13 16 20 Not included in the product’s ETA.
AWA08065 M8 100 8 50 9 35 8 10 65 22 13 16 20 Use restricted to the anchoring of structural components which are statically indeterminate.
AWA08075 M8 100 8 50 9 35 18 10 75 32 13 16 20 Use restricted to the anchoring of structural components which are statically indeterminate.
AWA08090 M8 100 8 50 9 35 33 10 90 46 13 16 20 Use restricted to the anchoring of structural components which are statically indeterminate.
AWA08100 M8 100 8 50 9 35 43 10 100 50 13 16 20 Use restricted to the anchoring of structural components which are statically indeterminate.
AWA08115 M8 100 8 50 9 35 58 10 115 65 13 16 20 Use restricted to the anchoring of structural components which are statically indeterminate.
AWA08130 M8 100 8 50 9 35 73 10 130 80 13 16 20 Use restricted to the anchoring of structural components which are statically indeterminate.
AWA10065 M10 100 10 50 12 35 3 13 65 22 17 20 35 Not included in the product’s ETA.
AWA10075 M10 100 10 60 12 40 8 13 75 27 17 20 35
AWA10090 M10 100 10 60 12 40 23 13 90 43 17 20 35
AWA10100 M10 100 10 60 12 40 33 13 100 53 17 20 35
AWA10120 M10 100 10 60 12 40 53 13 120 71 17 20 35
AWA10150 M10 100 10 60 12 40 83 13 150 95 17 20 35
AWA12080 M12 100 12 60 14 40 10 16 80 32 19 24 55 Not included in the product’s ETA.
AWA12090 M12 100 12 70 14 50 10 16 90 35 19 24 55
AWA12100 M12 100 12 70 14 50 20 16 100 44 19 24 55
AWA12110 M12 100 12 70 14 50 30 16 110 53 19 24 55
AWA12120 M12 100 12 70 14 50 40 16 120 63 19 24 55
AWA12140 M12 100 12 70 14 50 60 16 140 83 19 24 55
AWA12160 M12 100 12 70 14 50 80 16 160 95 19 24 55
AWA12180 M12 100 12 70 14 50 100 16 180 95 19 24 55
AWA12200 M12 100 12 70 14 50 120 16 200 95 19 24 55
AWA16105 M16 140 16 85 18 55 6 19 105 40 24 30 100 Not included in the product’s ETA.
AWA16125 M16 140 16 100 18 70 11 19 125 60 24 30 100
AWA16145 M16 140 16 100 18 70 31 19 145 80 24 30 100
AWA16170 M16 140 16 100 18 70 56 19 170 105 24 30 100
AWA16220 M16 140 16 100 18 70 106 19 220 115 24 30 100
AWA20130 M20 160 20 110 22 80 5 22 130 60 30 37 150 Not included in the product’s ETA.
AWA20170 M20 160 20 110 22 80 45 22 170 100 30 37 150
AWA20215 M20 160 20 110 22 80 90 22 215 115 30 37 150
AWA24180 M24 185 24 125 26 92 33 27 180 100 36 44 280
AWA24260 M24 185 24 125 26 92 113 27 260 150 36 44 280

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
