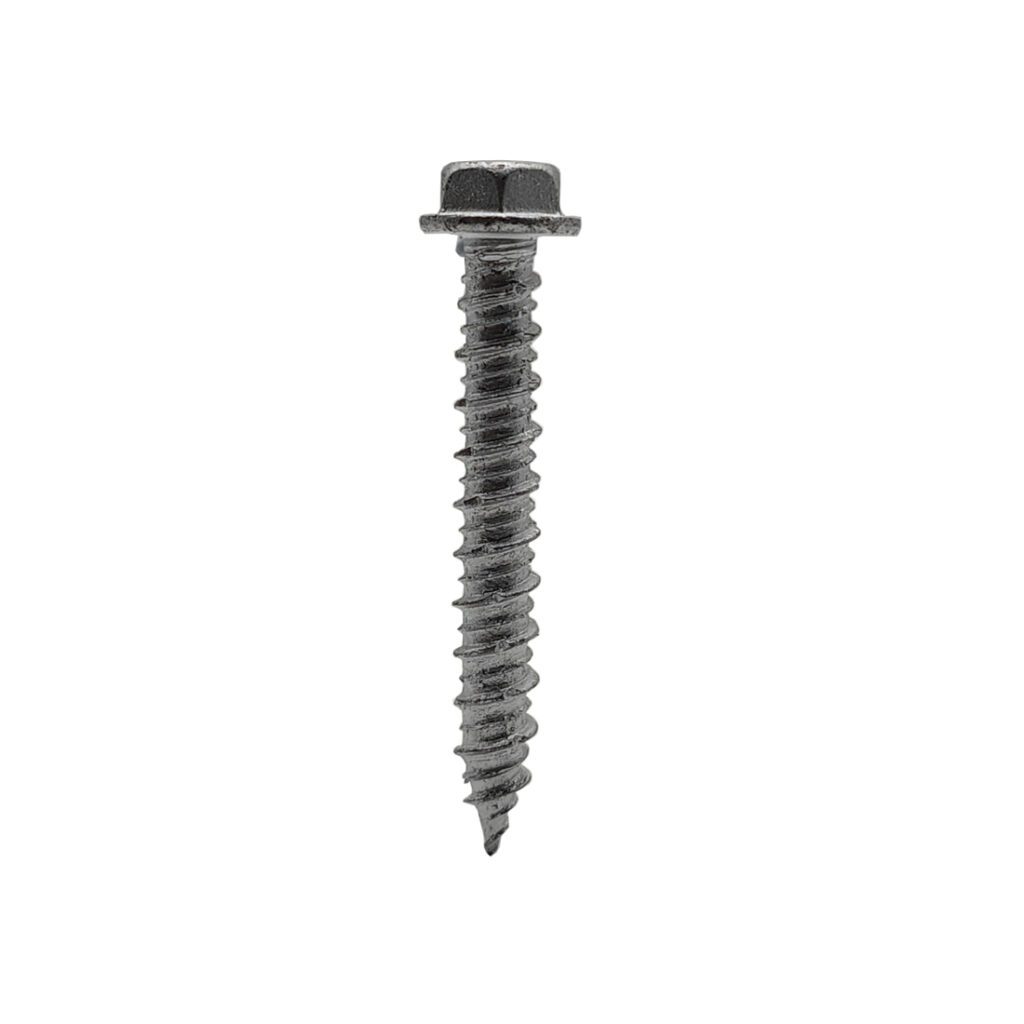

BI-METAL MASONRY SCREWS A4 STAINLESS STEEL

Material: A4-316 Stainless Steel
Fast and Secure Installation
Efficient Thread Cutting
Excellent Corrosion Resistance
Bi-Metallic
Undercutting Action
Expansion Free
Reaction to Fire Class A1

Data SheetData Sheet

Product Information

Non-Cracked Solid Concrete
Hard Concrete Block
Hard Natural Stone
Solid Block

  • Window and Door Frames
  • Plumbing and Electrical Fixings
  • General Concrete and Masonry Fixings

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Anchor Hole Size (d0) mm
Anchor Length (L) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Across Flats (A/F) Inches
MS63045SS 5 45 15 40 8
MS63057SS 5 57 27 40 8
MS63070SS 5 70 40 40 8

Installation Instructions

Drill correct diameter hole to corresponding depth

Clean hole by brushing and blowing to remove drilling debris and dust

Insert anchor through fixture into concrete and Finish by tightening with torque wrench to recommended torque

>
