COUNTERSUNK HEAD ANKERBOLTS BZP

A countersunk self-tapping anchor which cuts its own thread in the base material. Suitable for use in solid concrete, hollow concrete, bricks, dense blocks and most natural stone.

Finish: Bright Zinc Plated (BZP)
Material: Steel

Fast and Secure Installation

Expansion Free

Undercutting Action

Through Fixing

High Performance

Zinc Plated Minimum 5µm (For Dry, Internal Applications Only)

Data Sheet

Product Information

Concrete C20/25 To C50/60

Non-Cracked Concrete

Hollow Concrete Planks

Solid Brickwork

Concrete Block

Natural Stone

Railings and Handrails
Wooden Beams
Brackets
Pipeline and Cable Routes
Suspended Ceilings
Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data Sheet

Range Data
Installation Instructions

Shallow Embedment

Part Number	Drill Hole Diameter (d₀) mm	Thread Diameter (d_nom) mm	Anchor Length (L_H) mm	Fixture Clearance Hole (d_f) mm	Max Fixture Thickness (t_fix) mm	Min Hole Depth (h₁) mm	Embedment Depth (h_nom) mm	Min. Structure Thickness (h_c) mm	Drive Size	Tightening Torque (T_inst) Nm
JAB05/06030CS	5	6	30	8	5	35	25	100	Torx Drive T25	15
JAB05/06050CS	5	6	50	8	25	35	25	100	Torx Drive T25	15
JAB05/06075CS	5	6	75	8	50	35	25	100	Torx Drive T25	15
JAB05/06100CS	5	6	100	8	75	35	25	100	Torx Drive T25	15
JAB06/08030CS	6	8	30	10	5	35	25	100	Torx Drive T30	25
JAB06/08050CS	6	8	50	10	20	40	30	100	Torx Drive T30	25
JAB06/08075CS	6	8	75	10	45	40	30	100	Torx Drive T30	25
JAB06/08100CS	6	8	100	10	70	40	30	100	Torx Drive T30	25
JAB06/08130CS	6	8	130	10	100	40	30	100	Torx Drive T30	25
JAB06/08150CS	6	8	150	10	120	40	30	100	Torx Drive T30	25
JAB08/10060CS	8	10	60	12	20	55	40	120	Torx Drive T45	40
JAB08/10075CS	8	10	75	12	35	55	40	120	Torx Drive T45	40
JAB08/10100CS	8	10	100	12	60	55	40	120	Torx Drive T45	40
JAB10/12060CS	10	12	60	14	10	70	50	125	Torx Drive T50	60
JAB10/12075CS	10	12	75	14	25	70	50	125	Torx Drive T50	60
JAB10/12100CS	10	12	100	14	50	70	50	125	Torx Drive T50	60

Deep Embedment

Part Number	Drill Hole Diameter (d₀) mm	Thread Diameter (d_nom) mm	Anchor Length (L) mm	Fixture Clearance Hole (d_f) mm	Max Fixture Thickness (t_fix) mm	Min Hole Depth (h₁) mm	Embedment Depth (h_nom) mm	Min. Structure Thickness (h_c) mm	Driver Size	Tightening Torque (T_inst) Nm
JAB05/06030CS	5	6	30	8	N/A	50	37	100	Torx Drive T25	15
JAB05/06050CS	5	6	50	8	13	50	37	100	Torx Drive T25	15
JAB05/06075CS	5	6	75	8	38	50	37	100	Torx Drive T25	15
JAB05/06100CS	5	6	100	8	63	50	37	100	Torx Drive T25	15
JAB06/08030CS	6	8	30	10	N/A	55	45	100	Torx Drive T30	25
JAB06/08050CS	6	8	50	10	5	55	45	100	Torx Drive T30	25
JAB06/08075CS	6	8	75	10	30	55	45	100	Torx Drive T30	25
JAB06/08100CS	6	8	100	10	55	55	45	100	Torx Drive T30	25
JAB06/08130CS	6	8	130	10	85	55	45	100	Torx Drive T30	25
JAB06/08150CS	6	8	150	10	105	55	45	100	Torx Drive T30	25
JAB08/10060CS	8	10	60	12	N/A	75	60	120	Torx Drive T45	40
JAB08/10075CS	8	10	75	12	15	75	60	120	Torx Drive T45	40
JAB08/10100CS	8	10	100	12	40	75	60	120	Torx Drive T45	40
JAB10/12060CS	10	12	60	14	N/A	95	75	125	Torx Drive T50	60
JAB10/12075CS	10	12	75	14	N/A	95	75	125	Torx Drive T50	60
JAB10/12100CS	10	12	100	14	25	95	75	125	Torx Drive T50	60

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

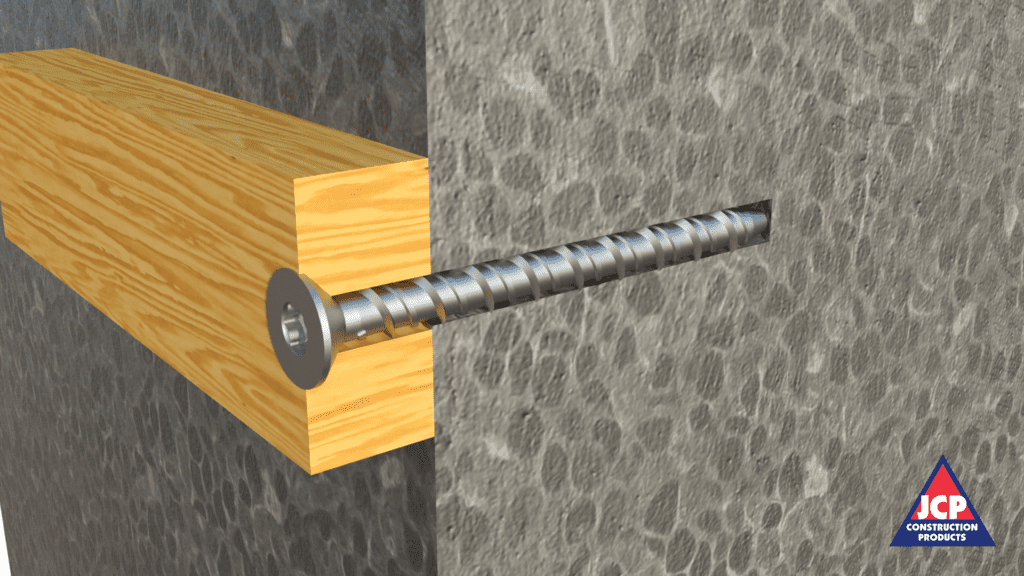

Insert anchor through fixture into concrete using suitable impact wrench and stop before the anchor touches the fixture.

Finish by tightening with torque wrench to recommended torque.
