COUNTERSUNK HEAD CONCRETE SCREWS NO COVER CAPS ZYP

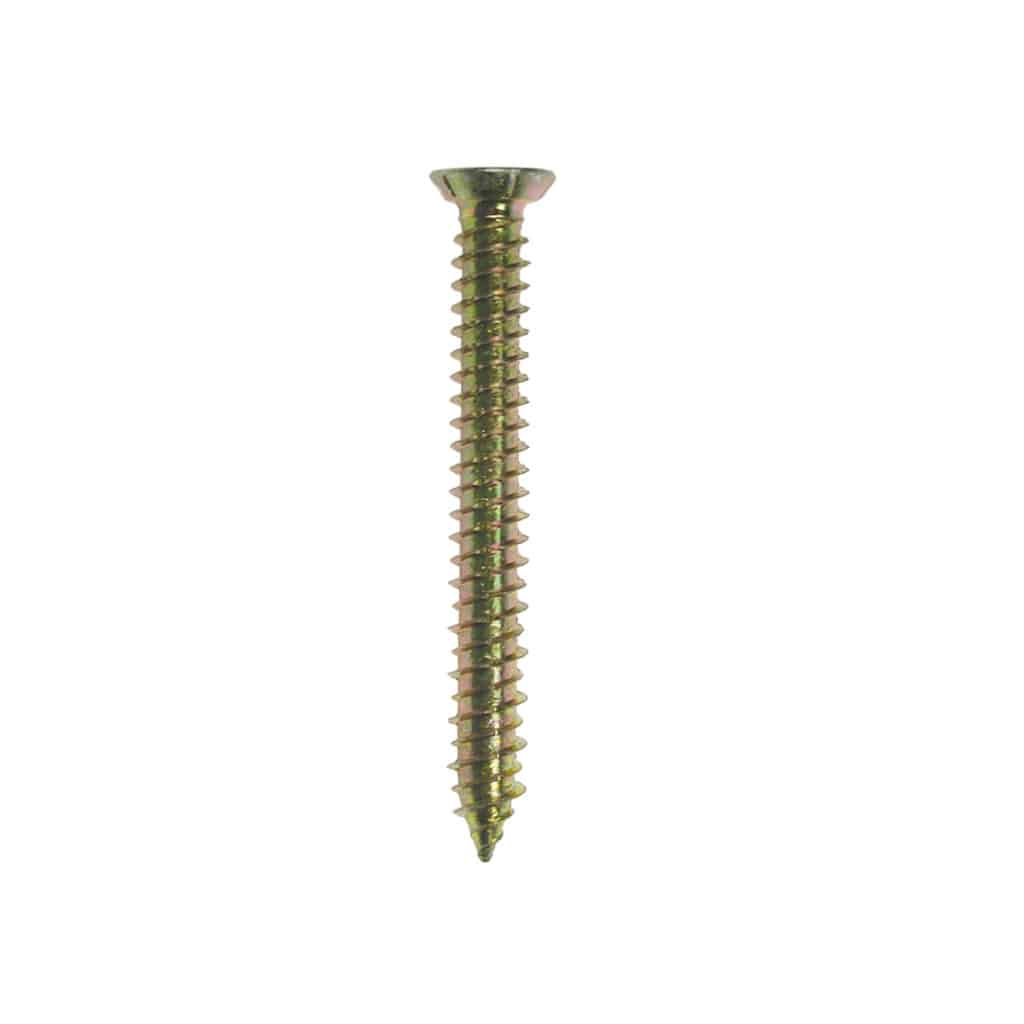

A countersunk self-tapping screw, zinc plated and yellow passivated, suitable for use in concrete, concrete blocks and masonry.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Reaction to Fire Class A1
Good Performance
Locking Ribs Under Head
T30 Drive Bit Included
Fast and Secure Installation
Expansion Free
Undercutting Action
Zinc Plated Minimum 5µm

Data SheetData Sheet

Product Information

Solid Concrete
Concrete Blocks
Solid Brickwork
Natural Stone
Hollow Base Materials

  • Fixing Back Windows
  • Door Frames
  • Timber Construction

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (LH) mm
Fixture Clearance Hole (df) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Head Depth (H) mm
Head Outside Diameter (OD) mm
Drive Size
Recommended Tensile Resistance (NRa) kN
Recommended Shear Resistance (VRa) kN
CS75040A 6 7.5 40 8 - 45 40 3.5 11 Torx Drive T30 2 2.2
CS75060A 6 7.5 60 8 20 45 40 3.5 11 Torx Drive T30 2 2.2
CS75080A 6 7.5 80 8 40 45 40 3.5 11 Torx Drive T30 2 2.2
CS75100A 6 7.5 100 8 60 45 40 3.5 11 Torx Drive T30 2 2.2
CS75120A 6 7.5 120 8 80 45 40 3.5 11 Torx Drive T30 2 2.2
CS75150A 6 7.5 150 8 110 45 40 3.5 11 Torx Drive T30 2 2.2
CS75180A 6 7.5 180 8 140 45 40 3.5 11 Torx Drive T30 2 2.2

Installation Instructions

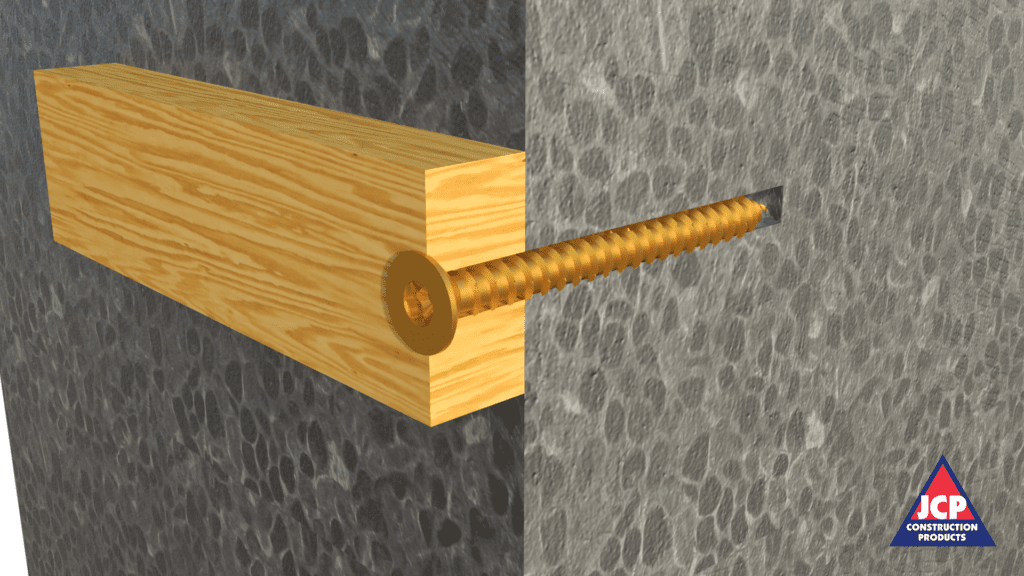

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert screw through fixture into base material and screw down.

>
