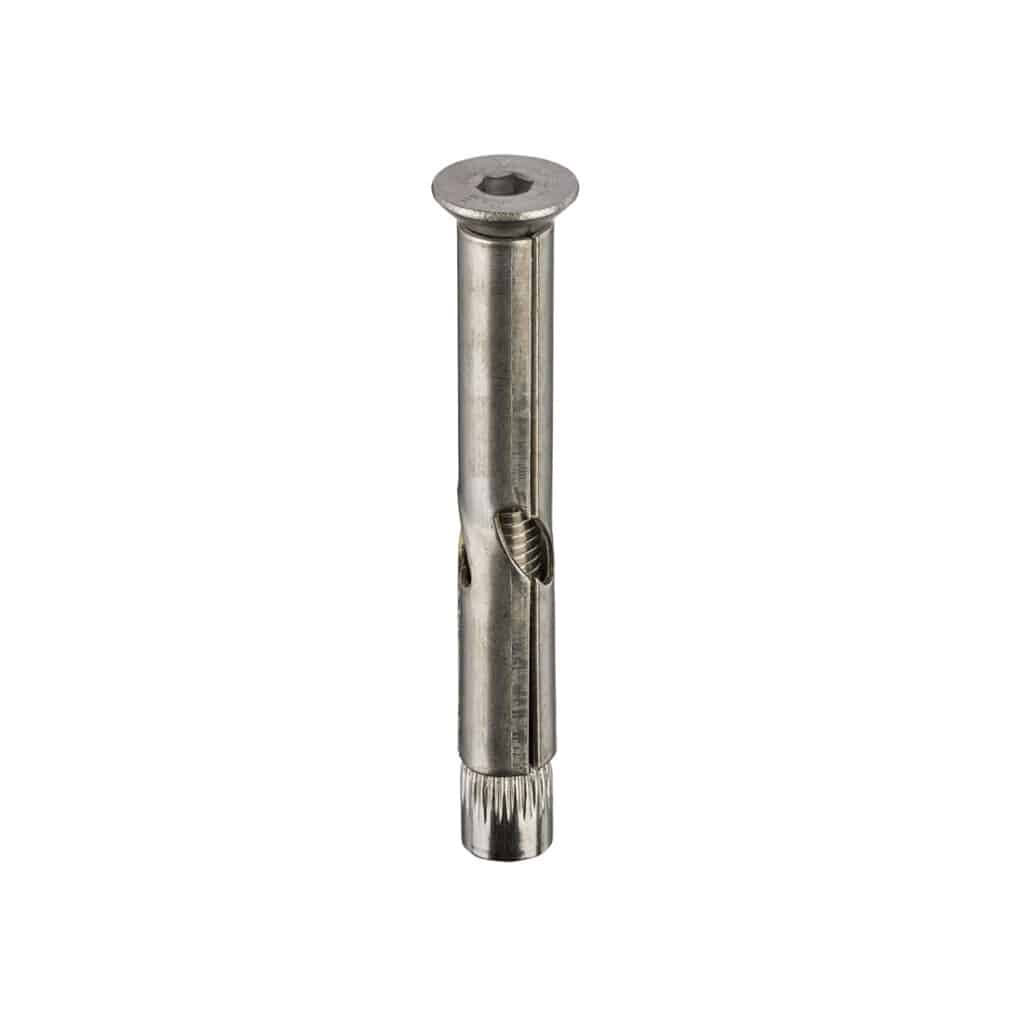

COUNTERSUNK HEAD SLEEVE ANCHORS A2 STAINLESS STEEL

The stainless steel A2-304 sleeve anchor is a thin-walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks. The oval hole enables the small gaps to be pulled down and a positive clamping force to be exerted through the fixture.

Material: A2-304 Stainless Steel
Through Fixing
Torque Controlled Expansion
Countersunk Head Gives Flush Finish
Supplied Pre-Assembled For Rapid Installation
Suitable for External Use
Hex Drive

Product Information

Non-Cracked Concrete
Dense Concrete Blocks
Solid Bricks
Stone
Perforated Bricks

  • Plates
  • Hand Rails
  • Racking
  • Stadium Seating
  • Signs

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Outside / Drill Diameter (d0) mm
Anchor Length (LH) mm
Head Diameter mm
Max Fixture Thickness (tfix) mm
Fixture Clearance Hole (df) mm
Min Hole Depth (h1) mm
Hex Socket Drive A/F mm
Min. Structure Thickness (h) mm
Installation Torque Concrete (Tinst) Nm
Installation Torque Brick (Tinst) Nm
Installation Torque Block (Tinst) Nm
SLC08045SS 8 45 12 8 9 50 4 100 10 9 6
SLC08060SS 8 60 12 18 9 60 4 100 10 9 6
SLC10060SS 10 60 16 9 12 60 5 100 20 18 10
SLC10080SS 10 80 16 19 12 80 5 105 20 18 10
SLC12070SS 12 70 20 10 14 75 6 100 35 32 25
SLC12100SS 12 100 20 30 14 100 6 125 35 32 25

Installation Instructions

Position fixture and drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Tighten to recommended torque.

>
