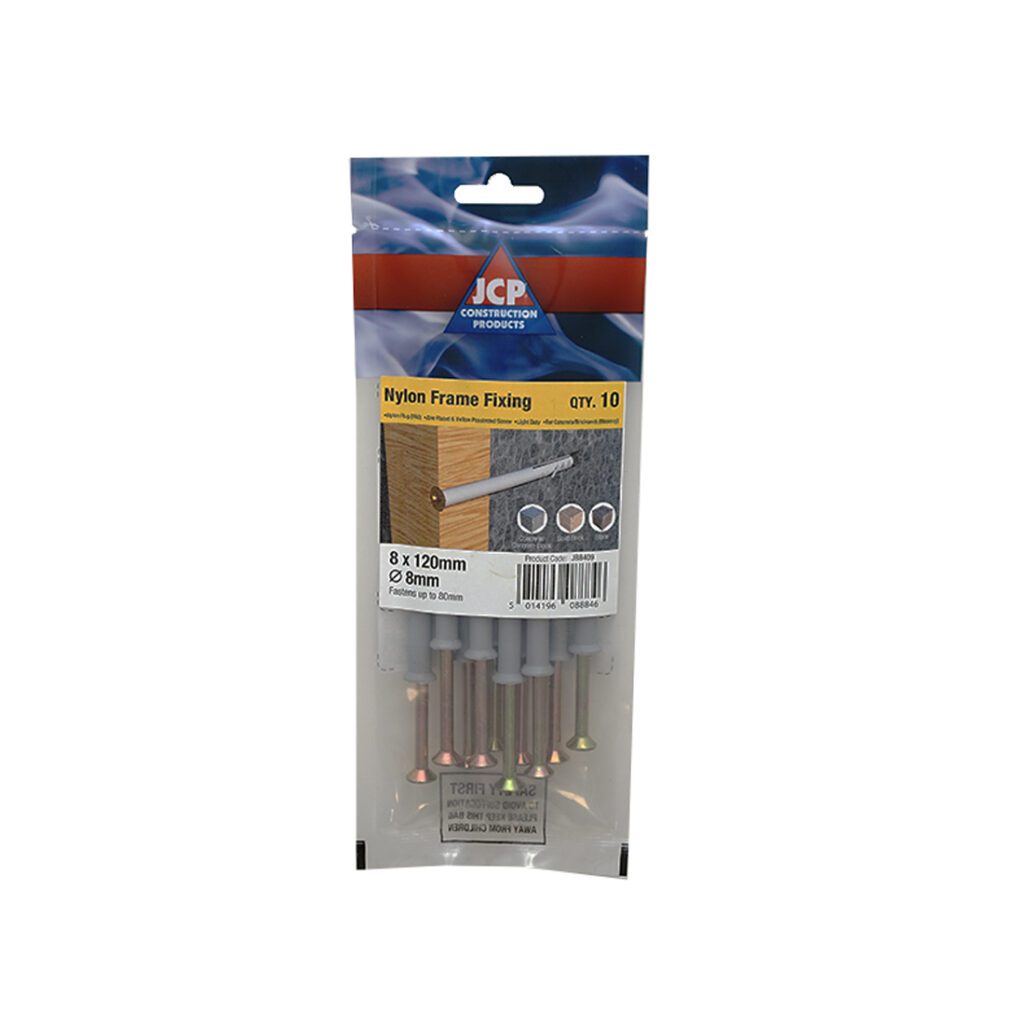

COUNTERSUNK NYLON FRAME FIXINGS ZYP

The nylon frame fixing has a countersunk screw. The frame anchor provides a matched screw and extended plug for anchoring timber to a wide variety of materials. A strong grip in weaker materials is achieved by the use of a high expansion ratio and heavy ribbing on the expander which digs in to materials such as aerated concrete or lightweight aggregate blocks.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Through Fixing
High-Expansion Ratio
Countersunk Head
Ribbed Plug Manufactured From Polyamide PA6 Nylon
Strong Grip In Weaker Materials

Product Information

Non-Cracked Concrete
Masonry

  • Timber Frames
  • Battens
  • Windows and Other Wooden Products to Concrete and Masonry

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
Drill Diameter mm
JB8400 8mm x 60mm 8
JB8403 8mm x 80mm 8
JB8406 8mm x 100mm 8
JB8409 8mm x 120mm 8
JB8412 10mm x 100mm 10
JB8415 10mm x 120mm 10
JB8418 10mm x 140mm 10
JB8421 10mm x 160mm 10

Installation Instructions

Drill correct diameter hole through fixture to correct depth in base material.

Clean hole by brushing and blowing.

Insert frame fixing through fixture into base material and tighten screw.

>
