DROP IN ANCHORS ZYP

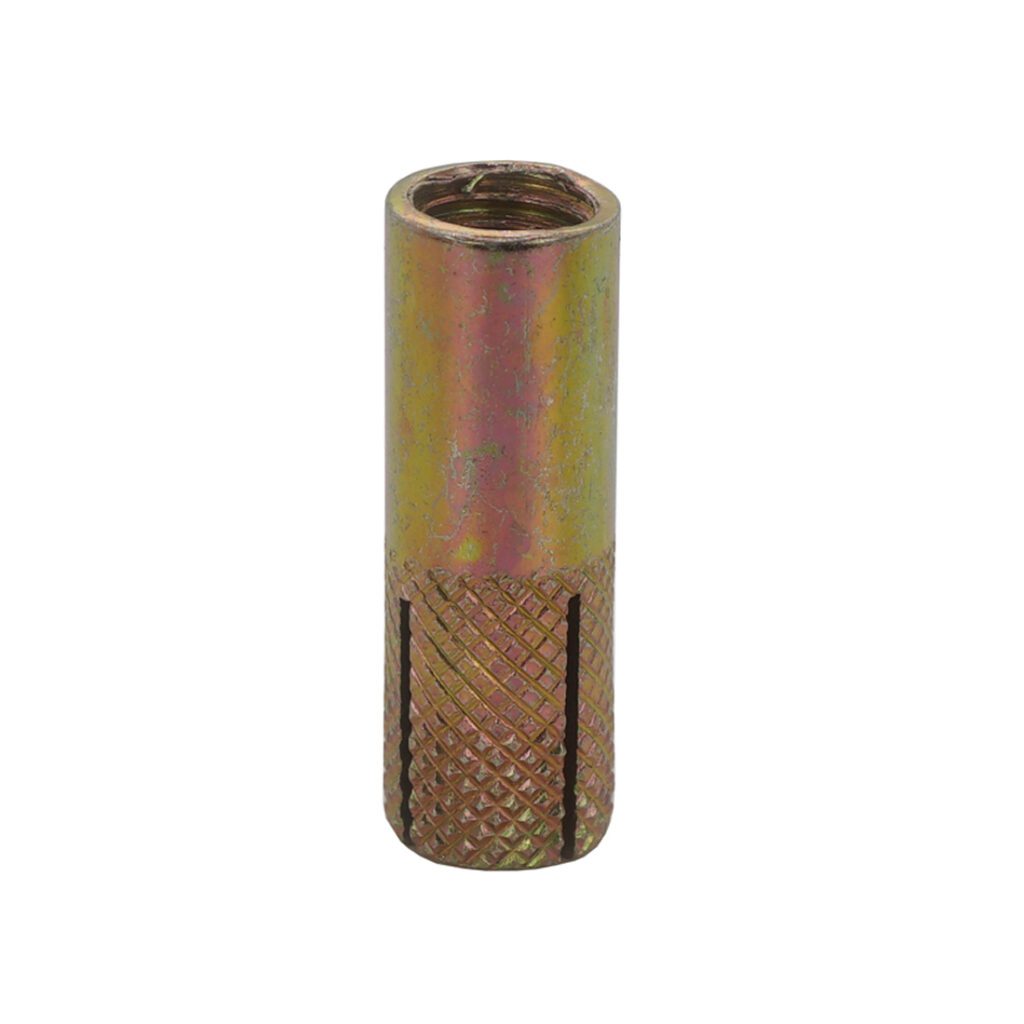

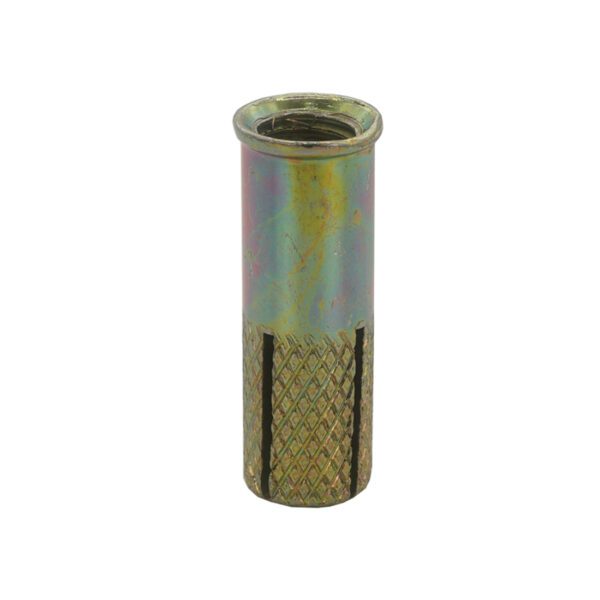

A deformation-controlled internally threaded socket anchor suitable for multiple use. The anchor can be accurately set independent of the hole depth, preventing the anchor from being inserted too far. The internal thread is suitable for bolts or threaded studs.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel

Fast and Secure Installation

Deformation-Controlled Expansion

Reaction To Fire Class A1

Zinc Plated and Yellow Passivated Minimum 5µm

Permanent Socket Allows For Removal And Replacement of The Fixture

Data Sheet

Product Information

Concrete C20/25 To C50/60

Non-Cracked Concrete

Dry Internal Conditions

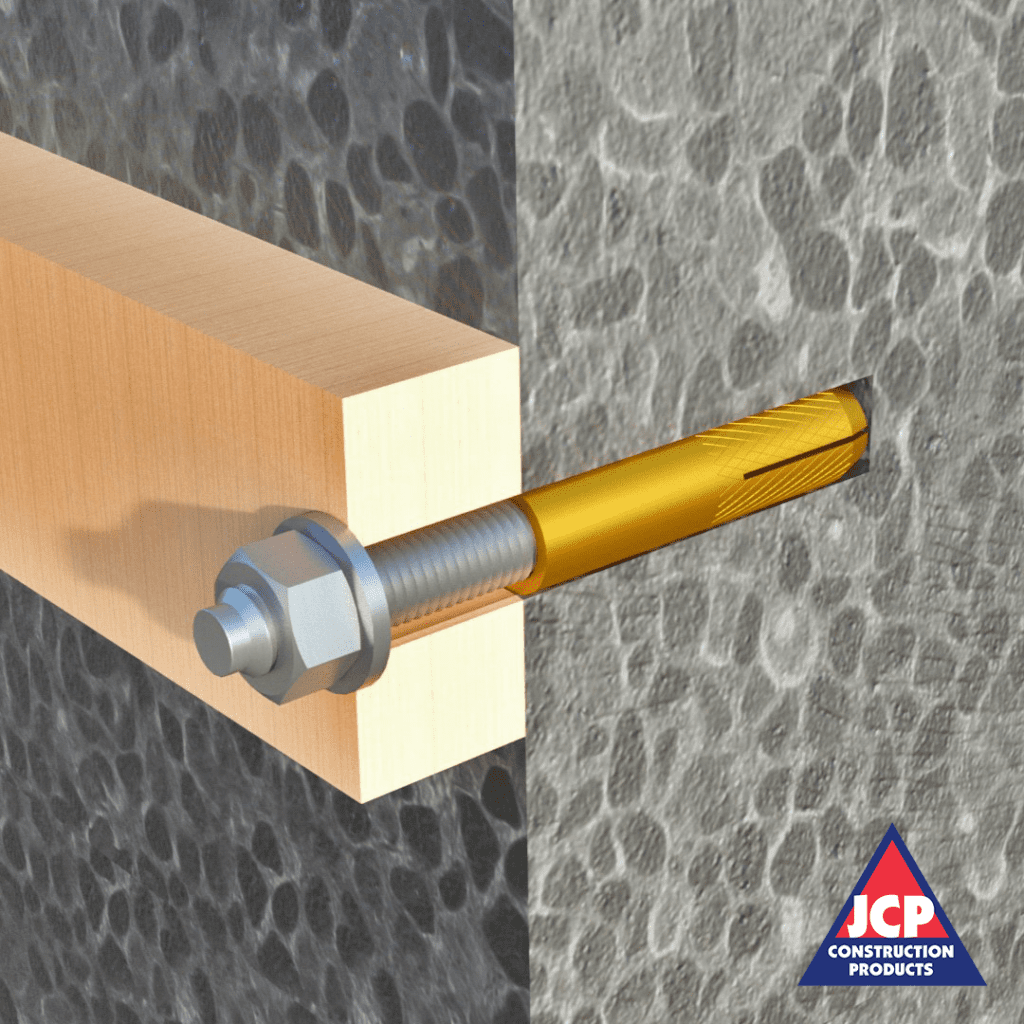

Suspending Services with Threaded Rods and Bolts
A Permanent Set Socket to Allow Fixture to be Removed
Scaffold Ring Bolts

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data Sheet

Range Data
Installation Instructions

Range Data

Part Number	Drill Hole Diameter (d₀) mm	Depth of Drill Hole (h₀) mm	Overall Embedment Depth (hnom=hef) mm	Anchor Length (L_H) mm	Thread Diameter (d_nom) mm	Internal Threaded Length (L_th) mm	Fixture Clearance Hole (d_f) mm	Minimum Member Thickness (h_min) mm	Setting Punch	Tightening Torque (T_inst) Nm
DBM06	8	25	25	25	6	10	7	100	DZSP06	4
DBM08	10	30	30	30	8	13	9	100	DZSP08	9
DBM10	12	40	40	40	10	15	12	130	DZSP10	17
DBM12	15	50	50	50	12	18	14	140	DZSP12	30
DBM16	20	65	65	65	16	23	18	160	DZSP16	75
DBM20	25	80	80	80	20	30	22	200	DZSP20	144
