ETA APPROVED MULTIPLE USE DROP-IN ANCHORS BZP

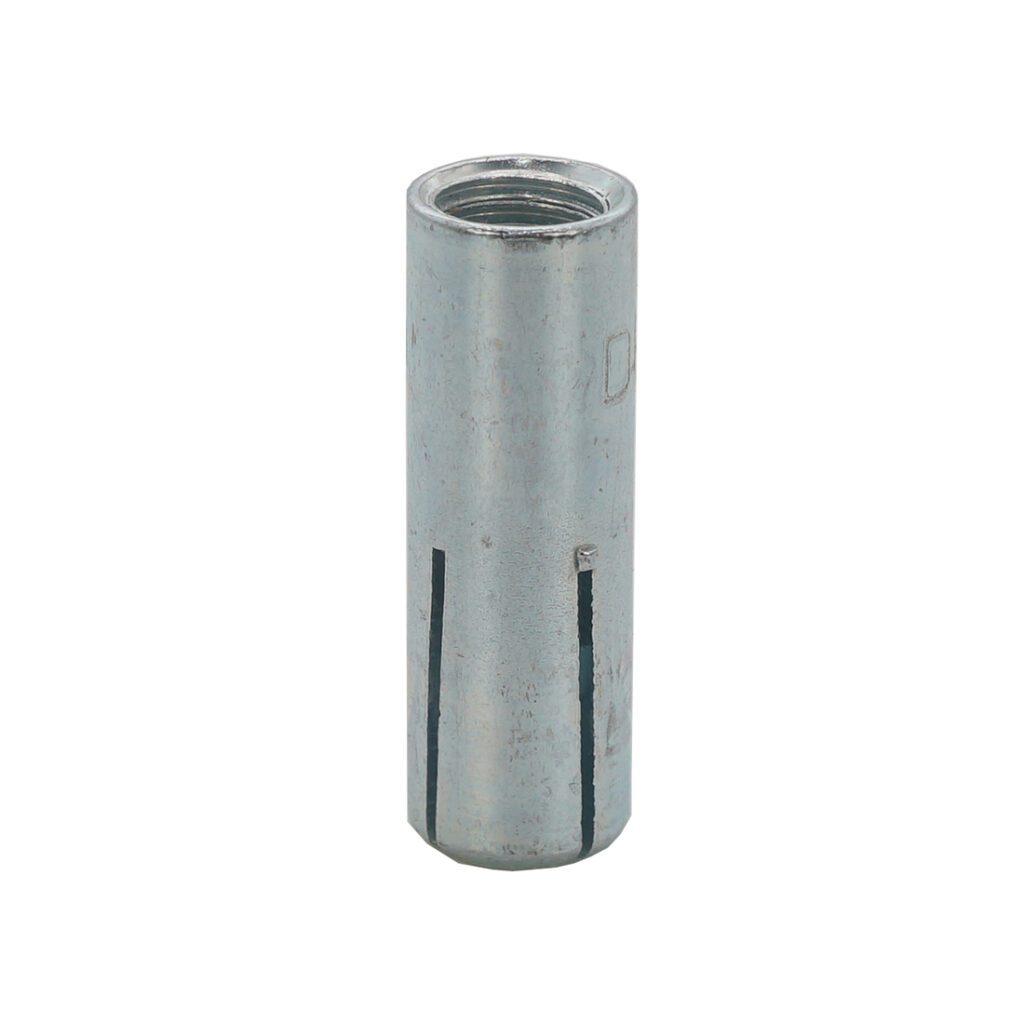

Deformation-controlled zinc plated anchor suitable for multiple use, non-structural applications in concrete. The specific design gives flexibility of using the anchor for applications with limited embedment depths such as pre-cast, pre-stressed hollow core slabs. The internal thread is suitable for bolts or threaded studs.

Finish: Bright Zinc Plated (BZP)
Material: Steel

Solid Cracked Concrete C20/25 To C50/60

Solid Non-Cracked Concrete C20/25 To C50/60

ETAG 001-6

Fire Resistance Loading

Minimum 5µm

Cost-Effective Solution

Data Sheet

Approvals

Product Information

Solid Cracked Concrete C20/25 To C50/60

Solid Non-Cracked Concrete C20/25 To C50/60

Suspending Services With Threaded Rods And Bolts
A Permanent Set Socket To Allow Fixture To Be Removed

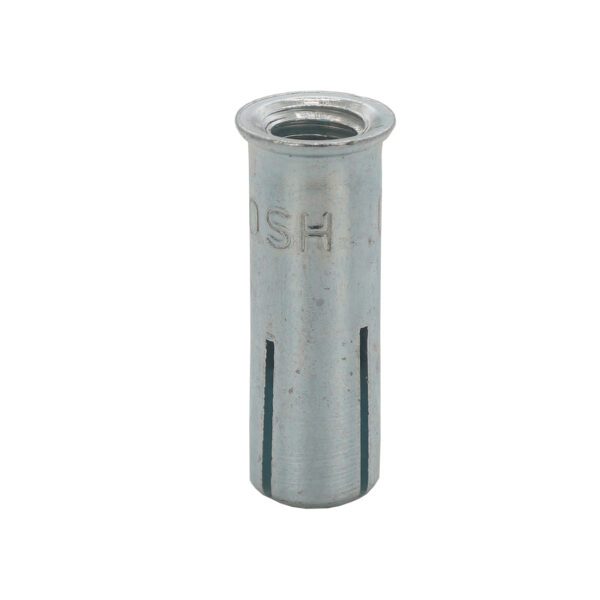

Lipped Version Allows The Anchor To Only Be Set Flush Avoiding Over Drilling

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data Sheet

ETA

Range Data
Installation Instructions

Range Data

Part Number	Finish	Material	Internal Threaded Diameter mm	Drill Hole Diameter (d₀) mm	Depth of Drill Hole (h₀) mm	Anchor Length (L) mm	Internal Threaded Length (L_th) mm	Fixture Clearance Hole (d_f) mm	Minimum Member Thickness (h_min) mm	Minimum Spacing (S_min) mm	Minimum Edge Distance (C_min) mm	Tightening Torque (T_inst) Nm
DBM0830	Bright Zinc Plated (BZP)	Steel	8	10	30	30	13	9	80	200	150	11
DBM1040	Bright Zinc Plated (BZP)	Steel	10	12	40	40	19	12	80	200	150	17
DBM1250	Bright Zinc Plated (BZP)	Steel	12	16	50	50	18	14	100	250	150	38
