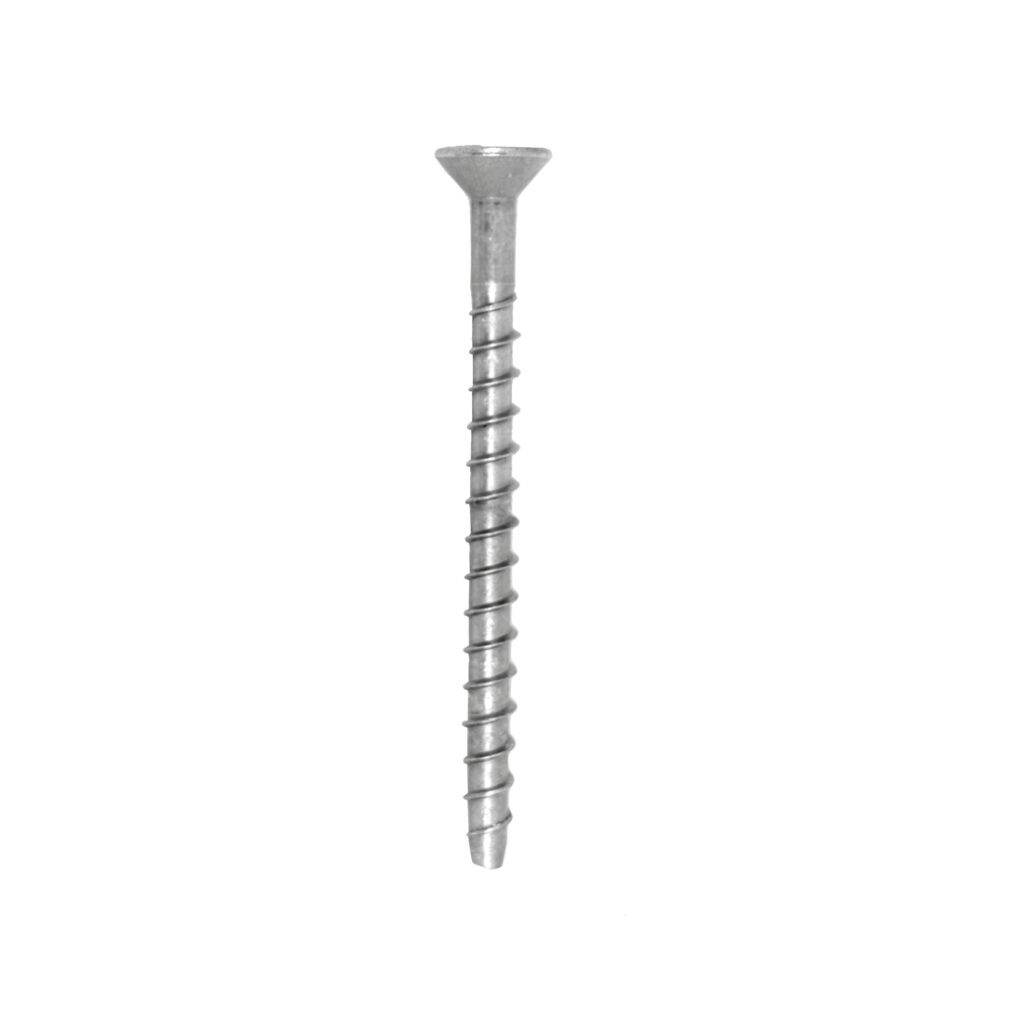

ETA COUNTERSUNK ANKERBOLTS A4 STAINLESS STEEL

A bi-metallic A4-316 stainless steel self-tapping ankerbolt with a carbon steel tip with leading threads to cut into concrete.

Material: A4-316 Stainless Steel
Fast and Secure Installation
Expansion Free
Undercutting Action
Through Fixing
High-Performance
ETAG 001-6
Fire Resistant Loading
Carbon Steel Tip With Leading Threads To Cut Into Concrete
Bi-Metallic
Suitable for External Use and Marine Environments

Data SheetData Sheet

Approvals

ETA accreditation
FR accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete
Hollow Concrete Planks
Solid Brickwork
Concrete Block
Natural Stone

  • Railings and Handrails
  • Wooden Beams
  • Brackets
  • Pipeline and Cable Routes
  • Suspended Ceilings
  • Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

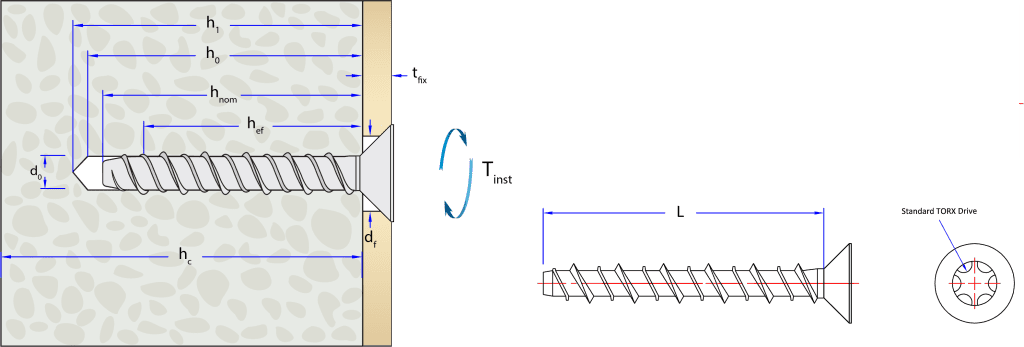

Shallow Embedment

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (LH) mm
Fixture Clearance Hole (df) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Min. Structure Thickness (hc) mm
Head Diameter mm
Drive Size
Tightening Torque (Tinst) Nm
Description
JAB06/08050CSSS 6 8 50 9 5 55 45 90 15.5 Torx Drive T40 -
JAB06/08075CSSS 6 8 75 9 20 65 55 100 15.5 Torx Drive T40 -
JAB06/08100CSSS 6 8 100 9 45 65 55 100 15.5 Torx Drive T40 -
JAB08/10050CSSS 8 10 50 11 5 55 45 90 18 Torx Drive T45 -
JAB08/10060CSSS 8 10 60 11 15 55 45 90 18 Torx Drive T45 -
JAB08/10075CSSS 8 10 75 11 20 65 55 100 18 Torx Drive T45 -
JAB08/10100CSSS 8 10 100 11 45 65 55 100 18 Torx Drive T45 -

Deep Embedment

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (L) mm
Fixture Clearance Hole (df) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Min. Structure Thickness (hc) mm
Head Diameter mm
Driver Size
Tightening Torque (Tinst) Nm
Description
JAB06/08050CSSS 6 8 50 9 N/A N/A N/A N/A 15.5 Torx Drive T40 -
JAB06/08075CSSS 6 8 75 9 N/A N/A N/A N/A 15.5 Torx Drive T40 -
JAB06/08100CSSS 6 8 100 9 30 80 70 110 15.5 Torx Drive T40 -
JAB08/10050CSSS 8 10 50 11 N/A N/A N/A N/A 18 Torx Drive T45 -
JAB08/10060CSSS 8 10 60 11 N/A N/A N/A N/A 18 Torx Drive T45 -
JAB08/10075CSSS 8 10 75 11 N/A N/A N/A N/A 18 Torx Drive T45 -
JAB08/10100CSSS 8 10 100 11 15 95 85 125 18 Torx Drive T45 -

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete using suitable impact wrench (maximum power setting according to the table below) and stop before the anchor touches the fixture.

Finish by tightening with torque wrench to recommended torque.

>
