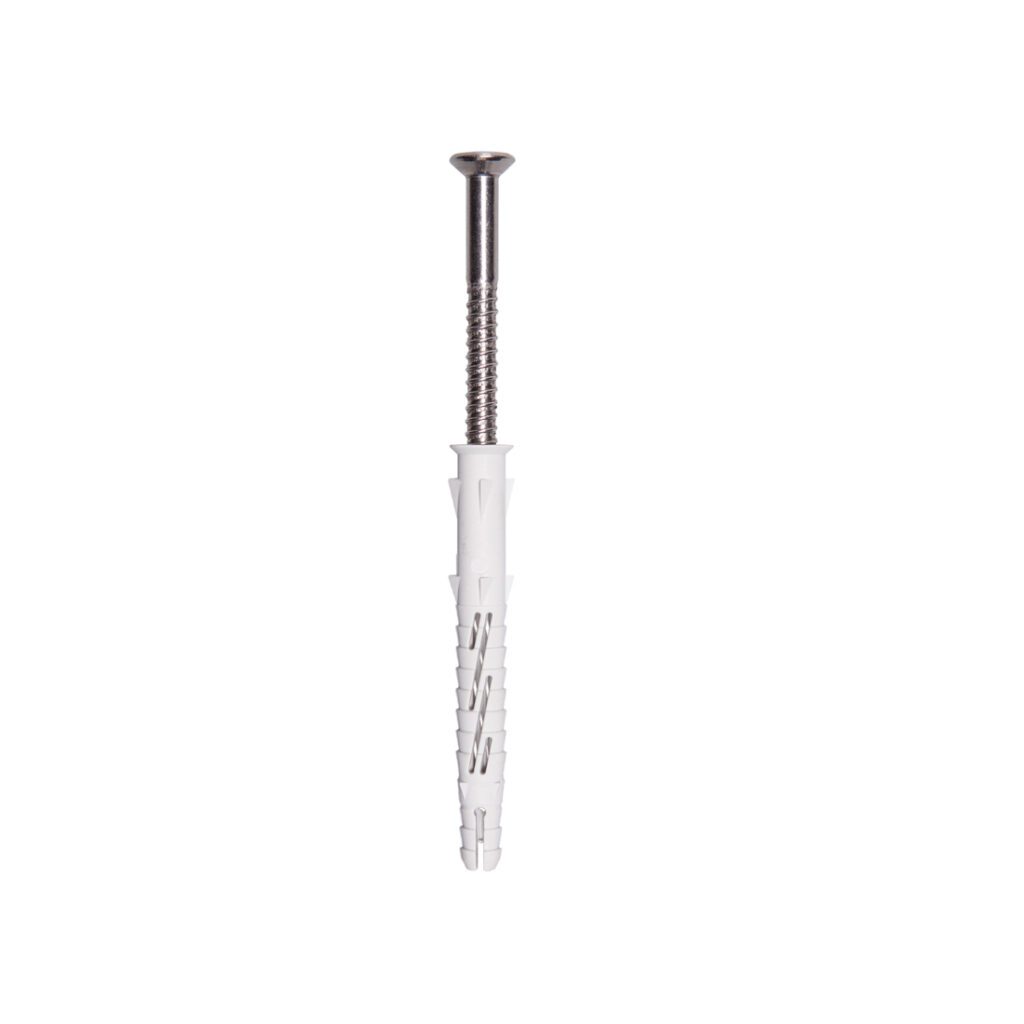

ETA COUNTERSUNK HEAD NYLON FRAME FIXINGS A4 STAINLESS STEEL

An ETA countersunk head nylon frame fixing includes a matched screw and extended plug for anchoring timber to a wide variety of materials. The European Technical Approval allows for the use in a number of base materials for multiple fixings in non-structural applications

Material: A4-316 Stainless Steel
Ribbed Plug Manufactured From Polyamide PA6 Nylon
Through Fixing
High-Expansion Ratio
For Use In Solid And Hollow Base Material
Countersunk Head Gives A Flush Finish
Fire Resistance Loading
TX Drive: 8mm - T30, 10mm -T40
Suitable For External Use And Marine Environments
Tested to ETAG 020-01, Plastic Anchors For Multiple Use For Non-Structural Application

Data SheetData Sheet

Approvals

ETA accreditation
FR accreditation
CE accreditation

Product Information

Concrete
Masonry

  • Timber Frames
  • Battens
  • Windows and Other Wooden Products to Concrete and Masonry
  • Suitable for External Use

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Anchor Hole Size (d0) mm
Anchor Plug Length (Lplug) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
NFF08080ETASS 8 80 10 90
NFF08100ETASS 8 100 30 90
NFF08120ETASS 8 120 50 90
NFF08140ETASS 8 140 70 90
NFF10080ETASS 10 80 10 90
NFF10100ETASS 10 100 30 90
NFF10120ETASS 10 120 50 90
NFF10140ETASS 10 140 70 90
NFF10160ETASS 10 160 90 90

Installation Instructions

Drill correct diameter hole through fixture to correct depth in base material.

Clean hole by brushing and blowing.

Insert frame fixing through fixture into base material and tighten screw.

>
