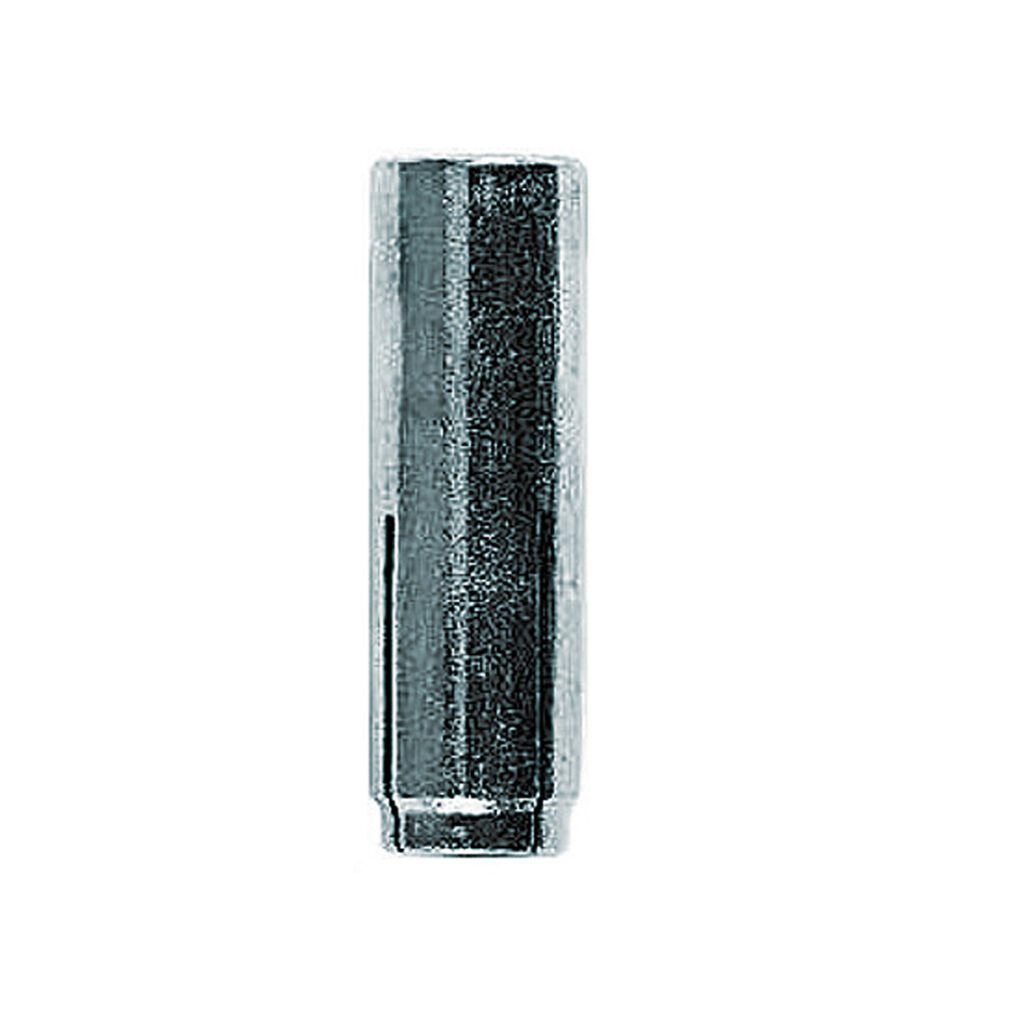

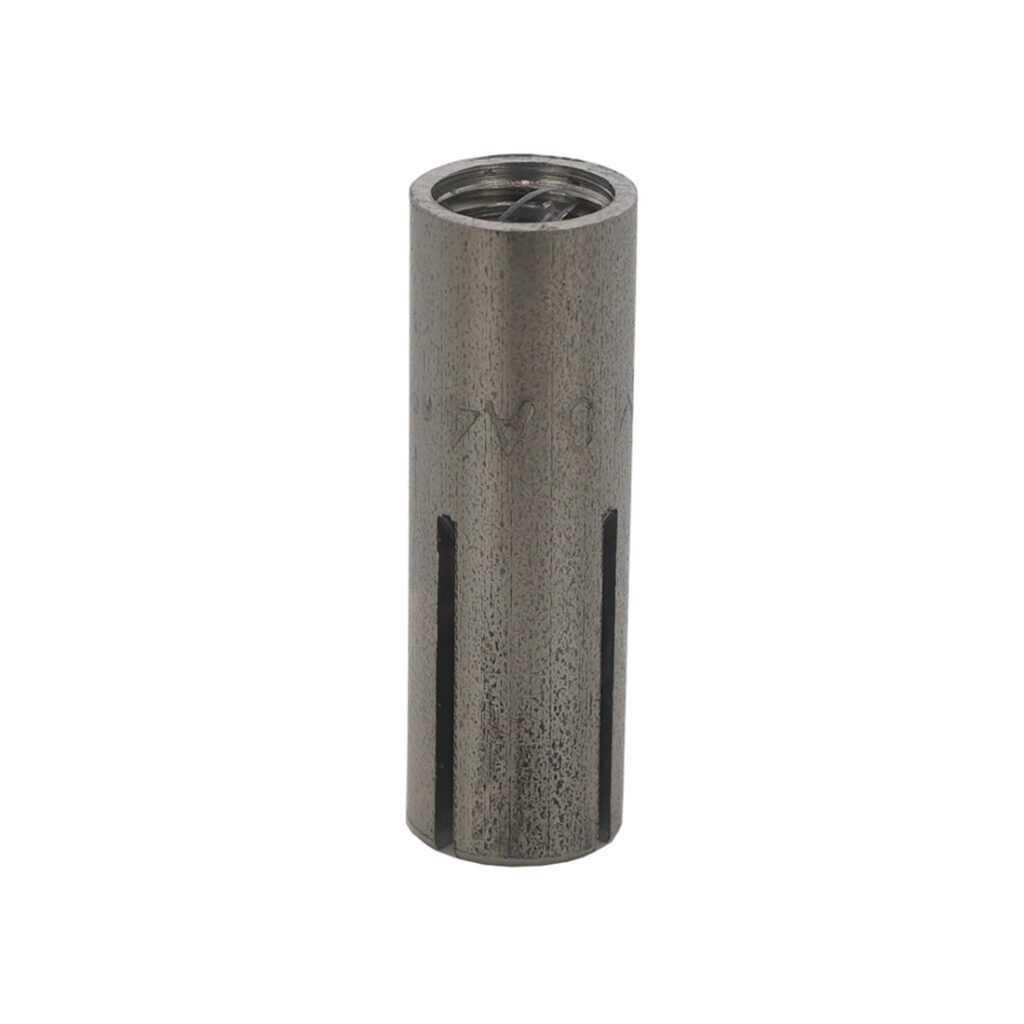

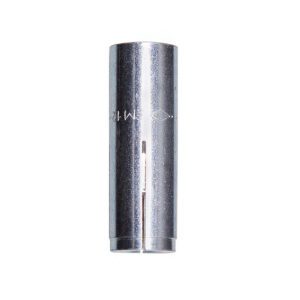

ETA DROP IN ANCHORS A4 STAINLESS STEEL

Deformation-controlled A4 stainless steel anchor suitable for multiple use for non-structural applications in both cracked and non-cracked concrete and requires the use of the right setting punch to ensure correct installation. The specific design gives flexibility of using the anchor for applications with embedment depths greater than 30mm in solid concrete. The internal thread is suitable for bolts or threaded studs.

Material: A4-316 Stainless Steel
Fast And Secure Installation
Deformation-controlled Expansion
Fire Resistant Loading
Manufactured in Europe
ETAG 001-6
Use Conditions: Check The ETA
Permanent Socket Allows For Removal And Replacement Of The Fixture
SUITABLE FOR EXTERNAL USE AND MARINE ENVIRONMENTS

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
FR accreditation

Product Information

Solid Cracked Concrete C20/25 To C50/60
Solid Non-Cracked Concrete C20/25 To C50/60

  • External Applications
  • Suspending Services with Threaded Rods and Bolts
  • A permanent set Socket to Allow Fixture to be Removed
  • Scaffold Ring Bolts

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

Range Data

Part Number
Drill Hole Diameter (d0) mm
Depth of Drill Hole (h0) mm
Anchor Length (LH) mm
Internal Threaded Length (Lth) mm
Fixture Clearance Hole (df) mm
Minimum Member Thickness (hmin) mm
Minimum Spacing (Smin) mm
Minimum Edge Distance (Cmin) mm
Tightening Torque (Tinst) Nm
DSSM06 8 30 30 13 7 100 50 80 4
DSSM08 10 30 30 13 9 100 60 95 8
DSSM10 12 40 40 15 12 130 100 135 15
DSSM12 15 50 50 18 14 140 120 165 35
DSSM16 20 65 65 23 18 160 150 200 60

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through concrete using suitable hammer.

Hammer wedge home using correct setting punch.

Tighten with torque wrench to recommended torque.

>
