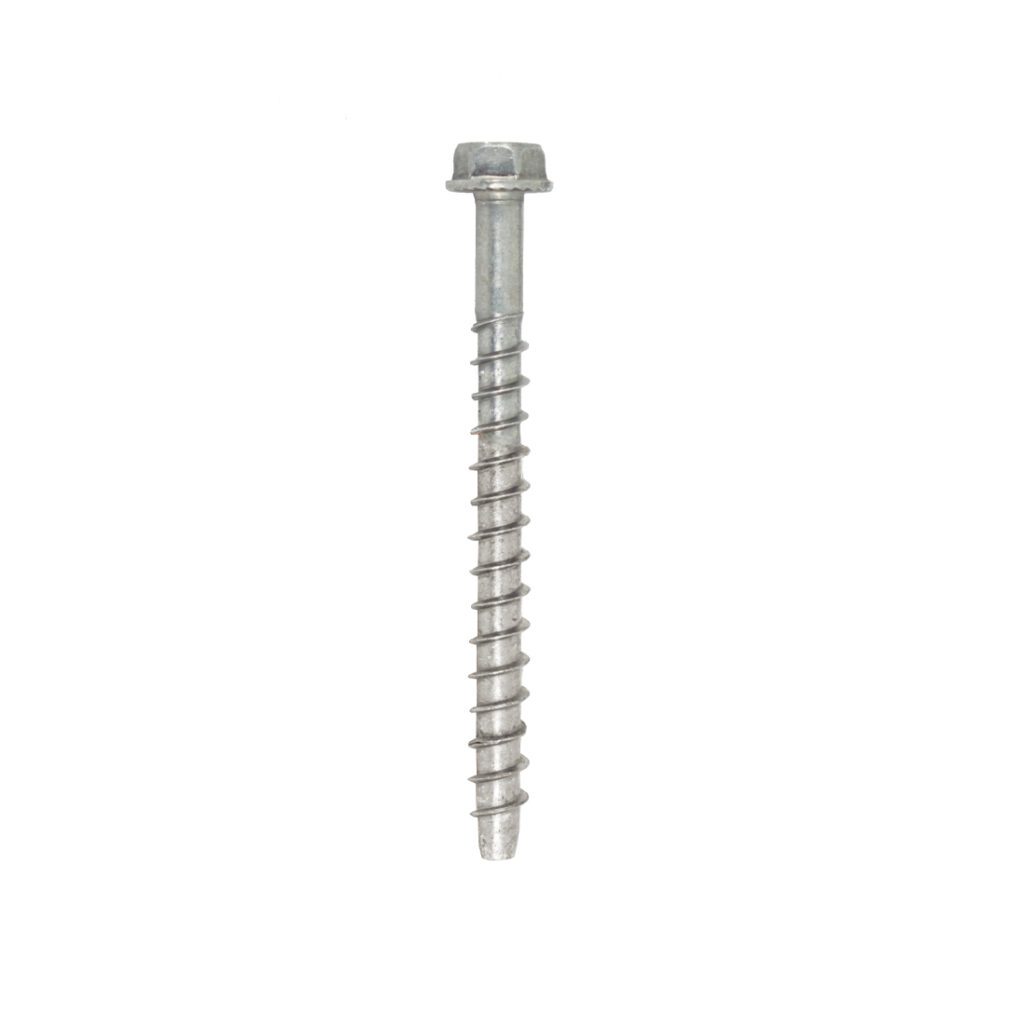

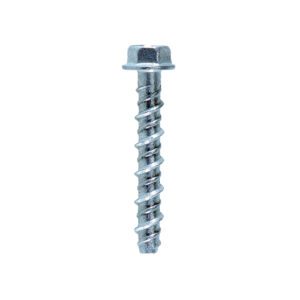

ETA HEXAGON FLANGE HEAD ANKERBOLTS A4 STAINLESS STEEL

A bi-metallic A4-316 stainless steel self-tapping ankerbolt with carbon steel tip with leading threads to cut into concrete.

Material: A4-316 Stainless Steel
Fast and Secure Installation
Expansion Free
Undercutting Action
Through Fixing
High-Performance
ETAG 001-6
Fire Resistant Loading
Bi-Metallic
Carbon Steel Tip With Leading Threads To Cut Into Concrete
Suitable for External Use and Marine Environments

Data SheetData Sheet

Approvals

ETA accreditation
FR accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete
Hollow Concrete Planks
Solid Brickwork
Concrete Block
Natural Stone

  • Railings and Handrails
  • Wooden Beams
  • Brackets
  • Pipeline and Cable Routes
  • Suspended Ceilings
  • Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Shallow Embedment

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (LH) mm
Fixture Clearance Hole (df) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Min. Structure Thickness (hc) mm
Width Across Flats (A/F) mm
Tightening Torque (Tinst) Nm
Description
JAB06/08050SS 6 8 50 9 5 55 45 90 10 20 Not included in ETA
JAB06/08075SS 6 8 75 9 30 55 45 90 10 20
JAB06/08100SS 6 8 100 9 55 55 45 90 10 20
JAB08/10060SS 8 10 60 11 8 65 52 100 13 31
JAB08/10075SS 8 10 75 11 23 65 52 100 13 31
JAB08/10100SS 8 10 100 11 48 65 52 100 13 31
JAB10/12075SS 10 12 75 13 0 85 75 125 17 60 Not included in ETA
JAB10/12100SS 10 12 100 13 25 85 75 125 17 60 Not included in ETA
JAB10/12135SS 10 12 135 13 60 85 75 125 17
JAB10/12150SS 10 12 150 13 75 85 75 125 17 60 Not included in ETA
JAB12/14100SS 12 14 100 15 25 85 75 125 19 80 Not included in ETA

Deep Embedment

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (L) mm
Fixture Clearance Hole (df) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Min. Structure Thickness (hc) mm
Width Across Flats (A/F) mm
Tightening Torque (Tinst) Nm
Description
JAB06/08050SS 6 8 50 9 N/A N/A N/A N/A 10 20 Not included in ETA
JAB06/08075SS 6 8 75 9 5 80 70 110 10 20
JAB06/08100SS 6 8 100 9 30 80 70 110 10 20
JAB08/10060SS 8 10 60 11 N/A N/A N/A N/A 13 31
JAB08/10075SS 8 10 75 11 N/A N/A N/A N/A 13 31
JAB08/10100SS 8 10 100 11 15 95 85 125 13 31
JAB10/12075SS 10 12 75 13 N/A N/A N/A N/A 17 60 Not included in ETA
JAB10/12100SS 10 12 100 13 N/A N/A N/A N/A 17 60 Not included in ETA
JAB10/12135SS 10 12 135 13 35 110 100 140 17
JAB10/12150SS 10 12 150 13 50 110 100 140 17 60 Not included in ETA
JAB12/14100SS 12 14 100 15 N/A 130 120 170 19 80 Not included in ETA

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor throug fixture into concrete using suitable impact wrench (maximum power setting according to the table below) and stop before the anchor touches the fixture.

Finish by tightening with torque wrench to recommended torque.

>
