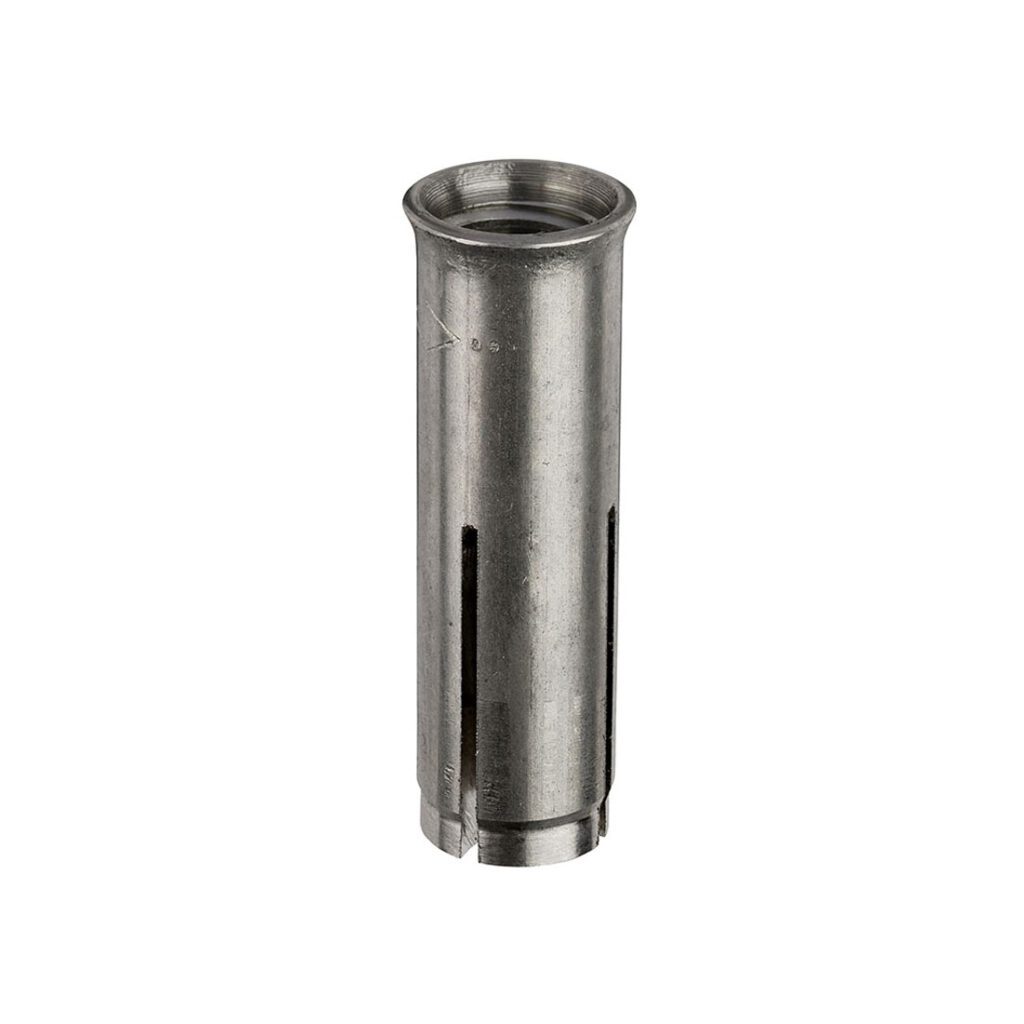

ETA LIPPED DROP IN ANCHORS A4 STAINLESS STEEL

Deformation-controlled A4 stainless steel anchor suitable for multiple use, non-structural applications in concrete. The specific design gives flexibility of using the anchor for applications with limited embedment depths. The internal thread is suitable for bolts or threaded studs.

Material: A4-316 Stainless Steel
Fast and Secure Installation
Deformation-controlled Expansion
Fire Resistant Loading
Manufactured in Europe
ETAG 001-6
Use Conditions: Check The ETA
Permanent Socket Allows For Removal and Replacement Of The Fixture
Suitable for External Use and Marine Environments

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
FR accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete
Solid Concrete C12/15 To C50/60
Pre-cast Pre-stressed Hollow Core Slabs C30/37 to C50/60

  • External Applications Suspending Services With Threaded Rods And Bolts
  • A Permanent Set Socket To Allow Fixture To Be Removed
  • Scaffold Ring Bolts
  • Lipped Version Allows The Anchor To Only Be Set Flush Avoiding Over Drilling

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

Range Data

Part Number
Drill Hole Diameter (d0) mm
Depth of Drill Hole (h0) mm
Anchor Length (LH) mm
Internal Threaded Length (Lth) mm
Fixture Clearance Hole (df) mm
Minimum Member Thickness (hmin) mm
Minimum Spacing (Smin) mm
Minimum Edge Distance (Cmin) mm
Tightening Torque (Tinst) Nm
ADSSM08SH 10 30 30 13 9 100 60 95 8
ADSSM10SH 12 40 40 15 12 130 100 135 15
ADSSM12SH 15 50 50 18 14 140 120 165 35

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through concrete using suitable hammer.

Hammer wedge home using correct setting punch.

Tighten with torque wrench to recommended torque.

>
