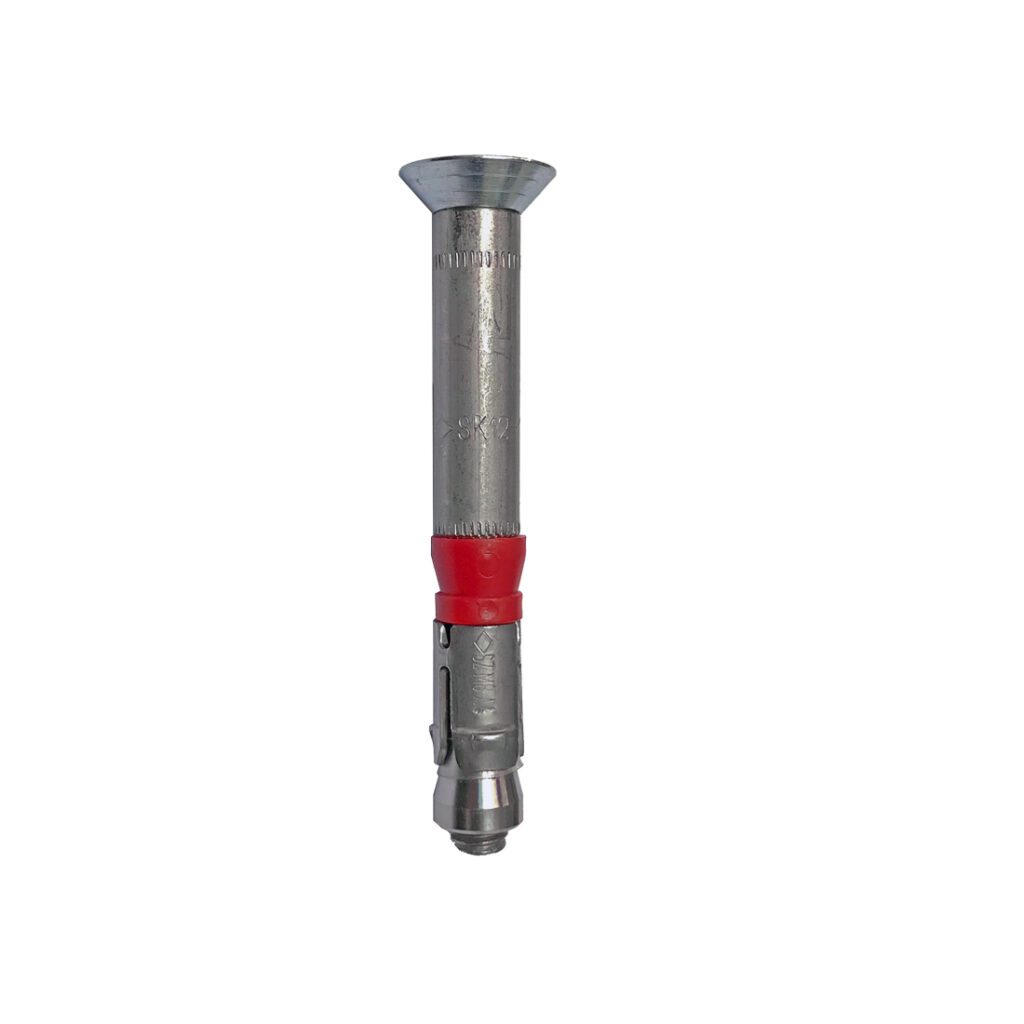

ETA OPTION 1 COUNTERSUNK HEAVY DUTY ANCHORS A4 STAINLESS STEEL

A high-performance anchor with a three-part expansion sleeve allowing for smaller spacings and edge distances in cracked and non-cracked concrete. A torque-controlled heavy-duty, stainless steel, countersunk anchor suitable for use in cracked and non-cracked concrete over C20/25. The plastic compression ring ensures the clamping of the mounted piece to the work surface.

Material: A4-316 Stainless Steel
Fast and Secure Installation
Three Way Expansion Sleeve
High-Performance
Through Fixing
Fire Resistant Loading
Stainless Steel A4-316
Wide Range of Sizes
Suitable for External Use and Marine Environments

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
FR accreditation
SEISMIC accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete

  • Racking
  • Trusses
  • Machines
  • Cranes
  • Shuttering

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Certificate of ConformityCertificate of Conformity

Range Data

Part Number
Size of Thread
Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Cone Length (Lc) mm
Effective Embedment Depth (hef) mm
Max Fixture Thickness (tfix) mm
Countersunk Thickness (tsk) mm
Total Length (L) mm
CSK Bolt Hexagon Drive (A/F) mm
Countersunk Diameter (dsk) mm
Tightening Torque (Tinst) Nm
SLSK12/10SS M8 120 12 80 14 11 60 10 5 80 5 20 17.5
SLSK12/25SS M8 120 12 80 14 11 60 25 5 95 5 20 17.5
SLSK12/50SS M8 120 12 80 14 11 60 50 5 120 5 20 17.5
SLSK15/15SS M10 140 15 95 17 14 71 15 5.7 100 6 25 42.5
SLSK15/25SS M10 140 15 95 17 14 71 25 5.7 110 6 25 42.5
SLSK15/50SS M10 140 15 95 17 14 71 50 5.7 135 6 25 42.5
SLSK18/20SS M12 160 18 105 20 16 80 20 6.7 115 7 30 50
SLSK18/40SS M12 160 18 105 20 16 80 40 6.7 135 7 30 50

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque

>
