• ETA OPTION 1 STUD AND NUT HEAVY DUTY ANCHORS A4 STAINLESS STEEL video thumbnail

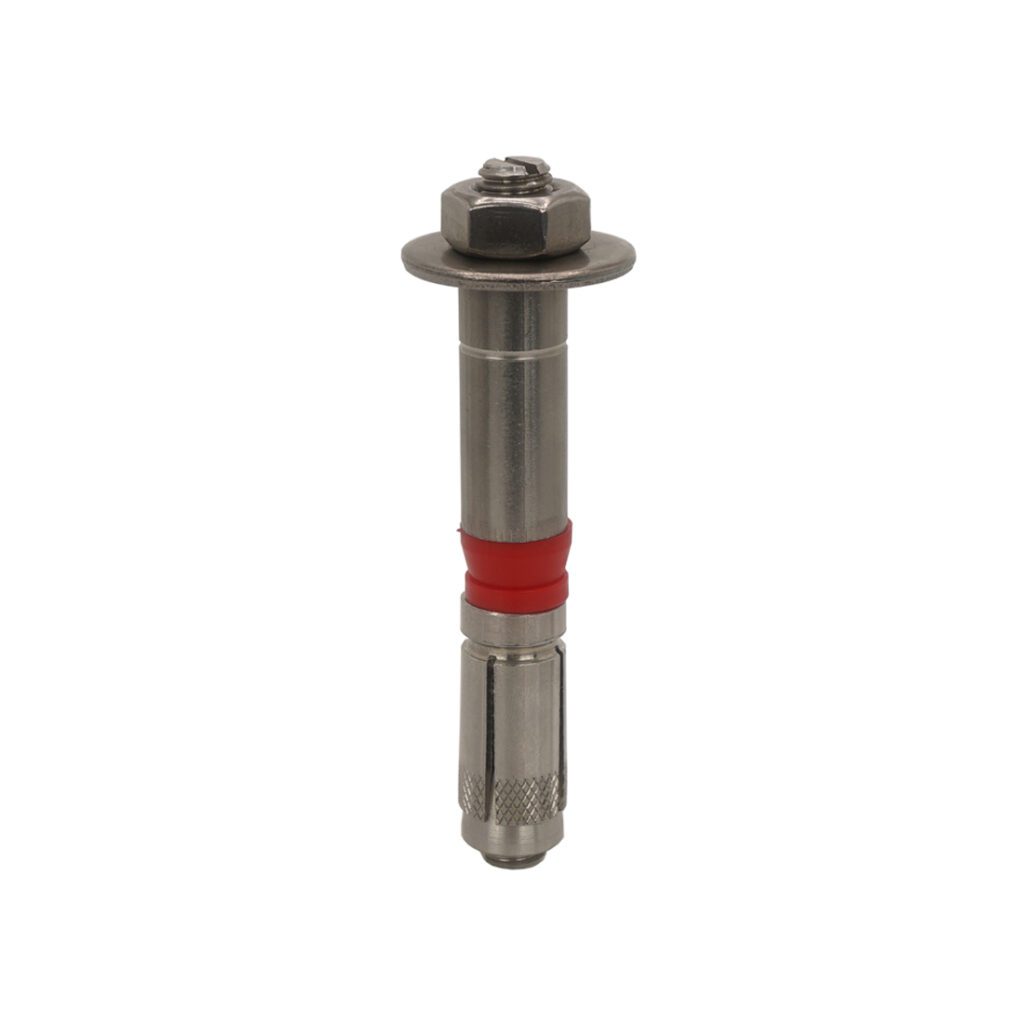

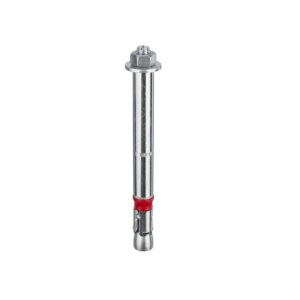

ETA OPTION 1 STUD AND NUT HEAVY DUTY ANCHORS A4 STAINLESS STEEL

A high-performance anchor with a three-part expansion sleeve allowing for smaller spacings and edge distances. The plastic compression ring ensures the clamping of the mounted piece to the work surface. A torque-controlled heavy-duty, stainless steel, hex nut anchor suitable for use in cracked and non-cracked concrete over C20/25.

Material: A4-316 Stainless Steel
Fast and Secure Installation
Three Way Expansion Sleeve
High-Performance
Through Fixing
Fire Resistant Loading
Stainless Steel A4/316
Wide Range of Sizes
Suitable For External Use And Marine Environments

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
FR accreditation
SEISMIC accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete

  • Racking
  • Trusses
  • Machines
  • Cranes
  • Shuttering

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

Range Data

Part Number
Size of Thread
Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Cone Length (Lc) mm
Effective Embedment Depth (hef) mm
Max Fixture Thickness (tfix) mm
Washer and Screw Thickness (tw+s)
Total Length (L) mm
Width Across Flats (A/F) mm
Washer Outer Diameter (d2) mm
Tightening Torque (Tinst) Nm
SLB12/10SS M8 120 12 80 14 11 60 10 8.8 90 13 20 35
SLB12/30SS M8 120 12 80 14 11 60 30 8.8 110 13 20 35
SLB14/15SS M10 140 15 95 17 14 71 15 10.9 111 17 25 55
SLB14/25SS M10 140 15 95 17 14 71 25 10.9 121 17 25 55
SLB18/20SS M12 160 18 105 20 16 80 20 13.8 132 19 30 90
SLB18/40SS M12 160 18 105 20 16 80 40 13.8 152 19 30 90

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque

>
