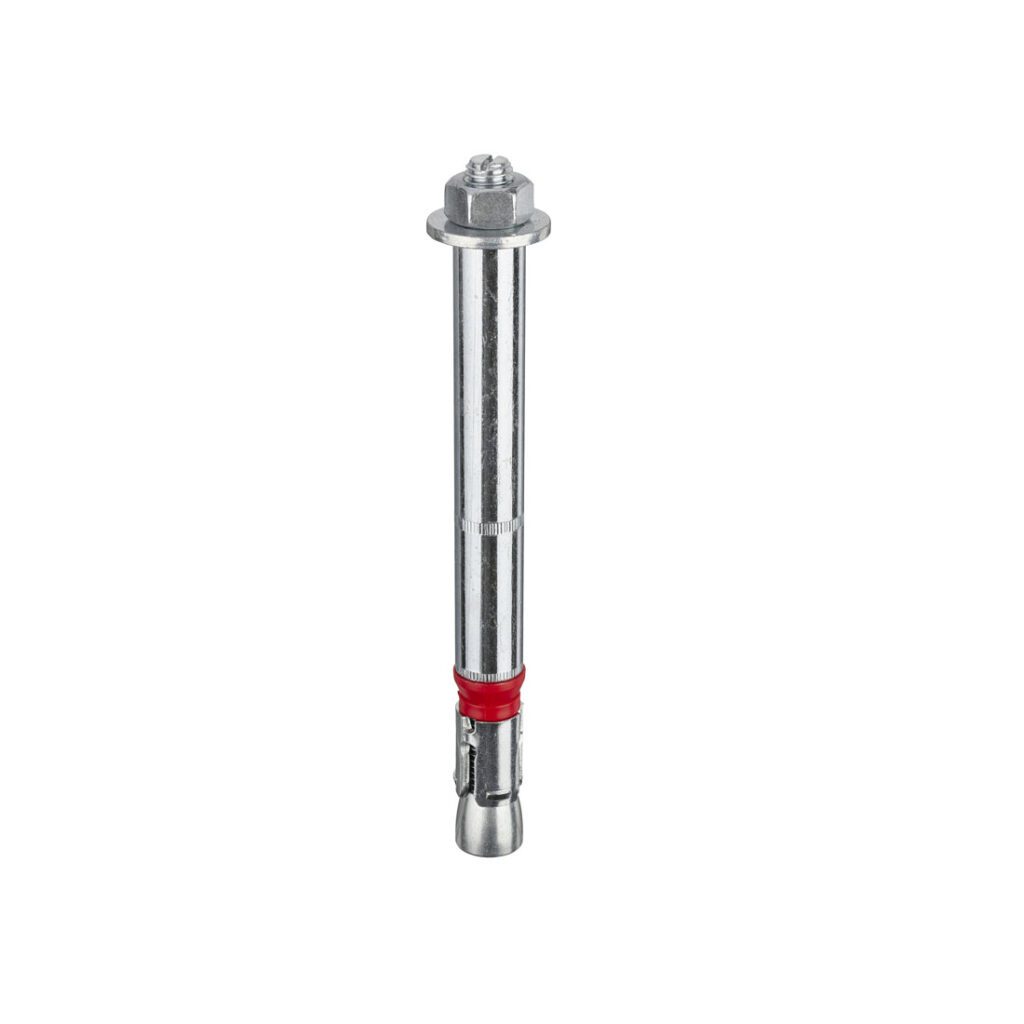

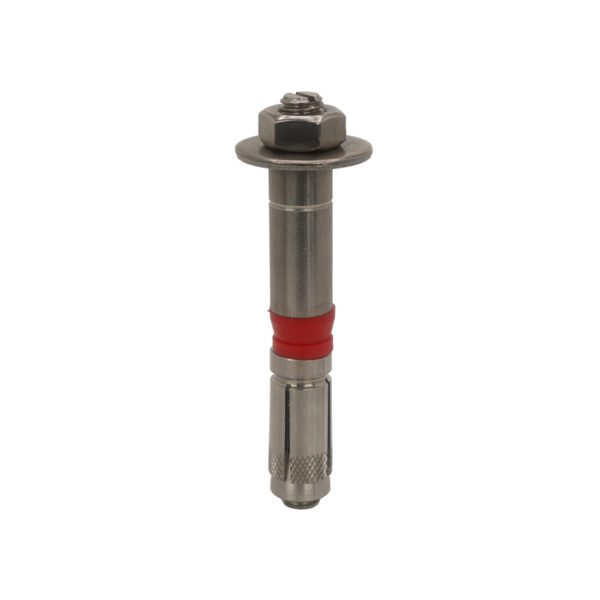

ETA OPTION 1 STUD AND NUT HEAVY DUTY ANCHORS BZP

A high-performance heavy-duty torque-controlled stud and nut anchor with a three-part expansion sleeve allowing for smaller spacings and edge distances. The plastic compression ring ensures the clamping of the mounted piece to the work surface. The C1 and C2 Seismic performances are available.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
Three Way Expansion Sleeve
High-Performance
Through Fixing
Fire Resistant Loading
Wide Range of Sizes
Zinc Plated Minimum 5µm

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
FR accreditation
SEISMIC accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete

  • Racking
  • Trusses
  • Machines
  • Cranes
  • Shuttering

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

Range Data

Part Number
Size of Thread
Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Cone Length (Lc) mm
Effective Embedment Depth (hef) mm
Max Fixture Thickness (tfix) mm
Washer and Screw Thickness (tw+s)
Total Length (L) mm
Width Across Flats (A/F) mm
Washer Outer Diameter (d2) mm
Tightening Torque (Tinst) Nm
NHD0810 M8 120 12 80 14 11 60 10 8.8 90 13 20 30
NHD0830 M8 120 12 80 14 11 60 30 8.8 110 13 20 30
NHD0850 M8 120 12 80 14 11 60 50 8.8 130 13 20 30
NHD1015 M10 140 15 95 17 14 71 15 10.9 111 17 25 50
NHD1025 M10 140 15 95 17 14 71 25 10.9 121 17 25 50
NHD1045 M10 140 15 95 17 14 71 45 10.9 141 17 25 50
NHD1210 M12 160 18 105 20 16 80 10 13.8 122 19 30 80
NHD1220 M12 160 18 105 20 16 80 20 13.8 132 19 30 80
NHD1240 M12 160 18 105 20 16 80 40 13.8 152 19 30 80
NHD1270 M12 160 18 105 20 16 80 70 13.8 182 19 30 80
NHD1620 M16 200 24 130 26 22 100 20 18.8 157 24 40 160
NHD1650 M16 200 24 130 26 22 100 50 18.8 187 24 40 160

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
