ETA OPTION 1 THROUGHBOLTS A4 STAINLESS STEEL

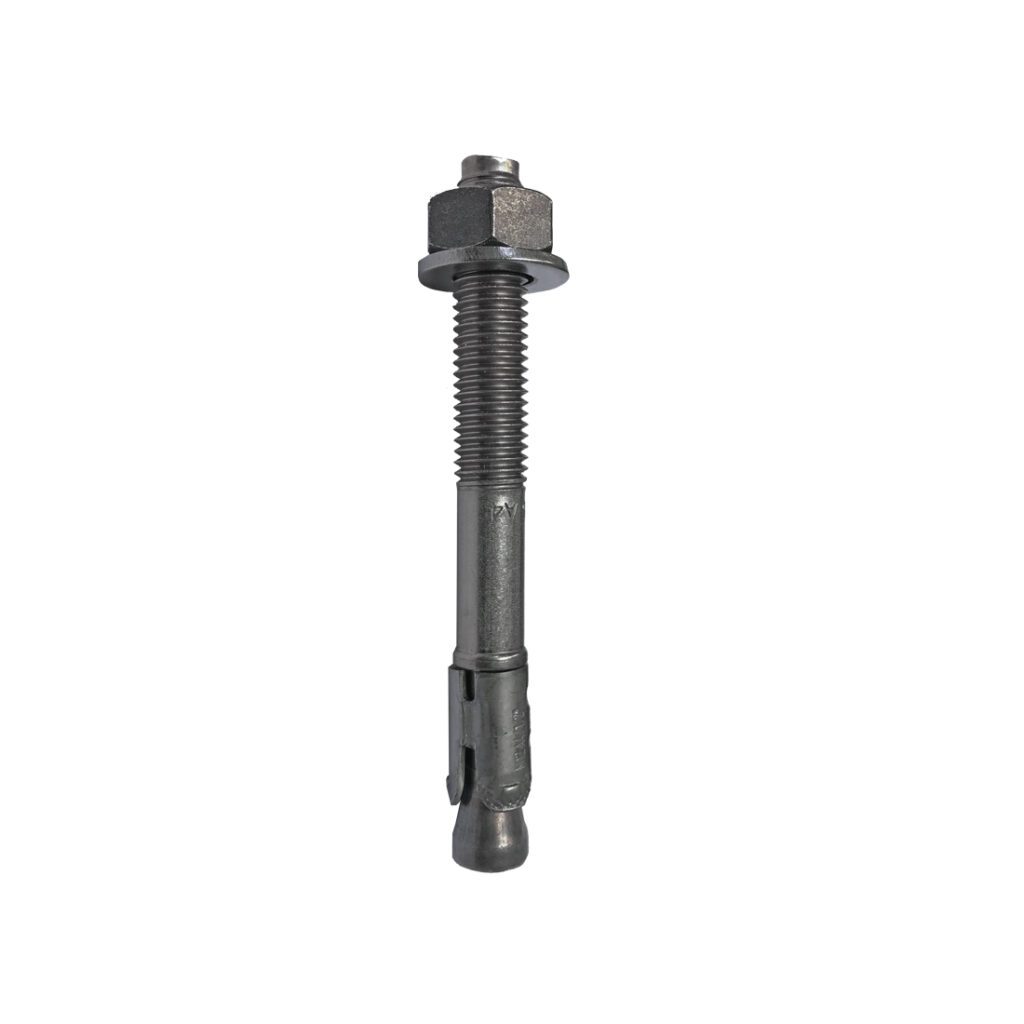

A fire rated stainless steel A4-316 throughbolt with an Option 1 ETA, suitable for use in cracked and uncracked concrete. The C1 and C2 seismic performances are available.

Material: A4-316 Stainless Steel
Stainless Steel A4-316
High Performance
Fire Resistant Loading
Fast and Secure Installation
Three Way Expansion Sleeve
Through Fixing
Suitable for External and Marine Environments
Wide Range of Sizes

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
FR accreditation
SEISMIC accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete

  • Supports
  • Steel Beams
  • Facade Substructures
  • Railing Fixings
  • Gates
  • Pipe Trays
  • Wooden Structures
  • Brackets
  • Stadium Seating
  • Fastenings in Earthquake Zones

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

Standard Embedment Depth

Part Number
Size of Thread
Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Min Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Cone Length (Lc) mm
Effective Embedment Depth (hef) mm
Max Fixture Thickness (tfix) mm
Washer Nut Thickness (tw+n) mm
Total Length (L) mm
Thread Length (Lth) mm
Width Across Flats (A/F) mm
Washer Outer Diameter (d2) mm
Tightening Torque (Tinst) Nm
ETA08065SS N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
ETA08080SS M8 100 8 60 9 11 46 15 8 80 37 13 16 20
ETA08095SS M8 100 8 60 9 11 46 30 8 95 52 13 16 20
ETA08115SS M8 100 8 60 9 11 46 50 8 115 72 13 16 20
ETA10080SS N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
ETA10100SS M10 120 10 75 12 10 60 20 10 100 52 17 20 35
ETA10130SS M10 120 10 75 12 10 60 50 10 130 82 17 20 35
ETA10180SS M10 120 10 75 12 10 60 100 10 180 132 17 20 35
ETA12095SS N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
ETA12110SS M12 140 12 90 14 14 70 15 13 110 51 19 24 50
ETA12125SS M12 140 12 90 14 14 70 30 13 125 66 19 24 50
ETA12160SS M12 140 12 90 14 14 70 65 13 160 101 19 24 50
ETA12200SS M12 140 12 90 14 14 70 105 13 200 135 19 24 50
ETA16115SS N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
ETA16135SS M16 160 16 110 18 17 85 15 16 135 56 24 30 110
ETA16170SS M16 160 16 110 18 17 85 50 16 170 91 24 30 110
ETA16220SS M16 160 16 110 18 17 85 100 16 220 80 24 30 110
ETA20165SS M20 200 20 125 22 21 100 30 21 165 50 30 37 200
ETA20195SS M20 200 20 125 22 21 100 60 21 195 70 30 37 200
ETA20235SS M20 200 20 125 22 21 100 100 21 235 80 30 37 200

Reduced Embedment Depth

Part Number
Size of Thread
Red. Min. Structure Thickness (hc) mm
Drill Hole Diameter (d0) mm
Red. Min. Hole Depth (h1) mm
Fixture Clearance Hole (df) mm
Cone Length (Lc) mm
Red. Effective Embedment Depth (hef) mm
Red. Max. Fixture Thickness (tfix) mm
Washer Nut Thickness (tw+n) mm
Total Length (L) mm
Thread Length (Lth) mm
Width Across Flats (A/F) mm
Washer Outer Diameter (d2) mm
Tightening Torque (Tinst) Nm
ETA08065SS M8 80 8 49 9 11 35 11 8 65 22 13 16 20
ETA08080SS M8 80 8 49 9 11 35 26 8 80 37 13 16 20
ETA08095SS M8 80 8 49 9 11 35 41 8 95 52 13 16 20
ETA08115SS M8 80 8 49 9 11 35 61 8 115 72 13 16 20
ETA10080SS M10 80 10 55 12 10 40 20 10 80 32 17 20 35
ETA10100SS M10 80 10 55 12 10 40 40 10 100 52 17 20 35
ETA10130SS M10 80 10 55 12 10 40 70 10 130 82 17 20 35
ETA10180SS M10 80 10 55 12 10 40 120 10 180 132 17 20 35
ETA12095SS M12 100 12 70 14 11.7 50 20 13 95 36 19 24 50
ETA12110SS M12 100 12 70 14 11.7 50 35 13 110 51 19 24 50
ETA12125SS M12 100 12 70 14 11.7 50 50 13 125 66 19 24 50
ETA12160SS M12 100 12 70 14 11.7 50 85 13 160 101 19 24 50
ETA12200SS M12 100 12 70 14 11.7 50 125 13 200 135 19 24 50
ETA16115SS M16 140 16 90 18 17 65 15 17 115 36 24 30 110
ETA16135SS M16 140 16 90 18 17 65 35 17 135 56 24 30 110
ETA16170SS M16 140 16 90 18 17 65 70 17 170 91 24 30 110
ETA16220SS N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
ETA20165SS N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
ETA20195SS N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
ETA20235SS N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
