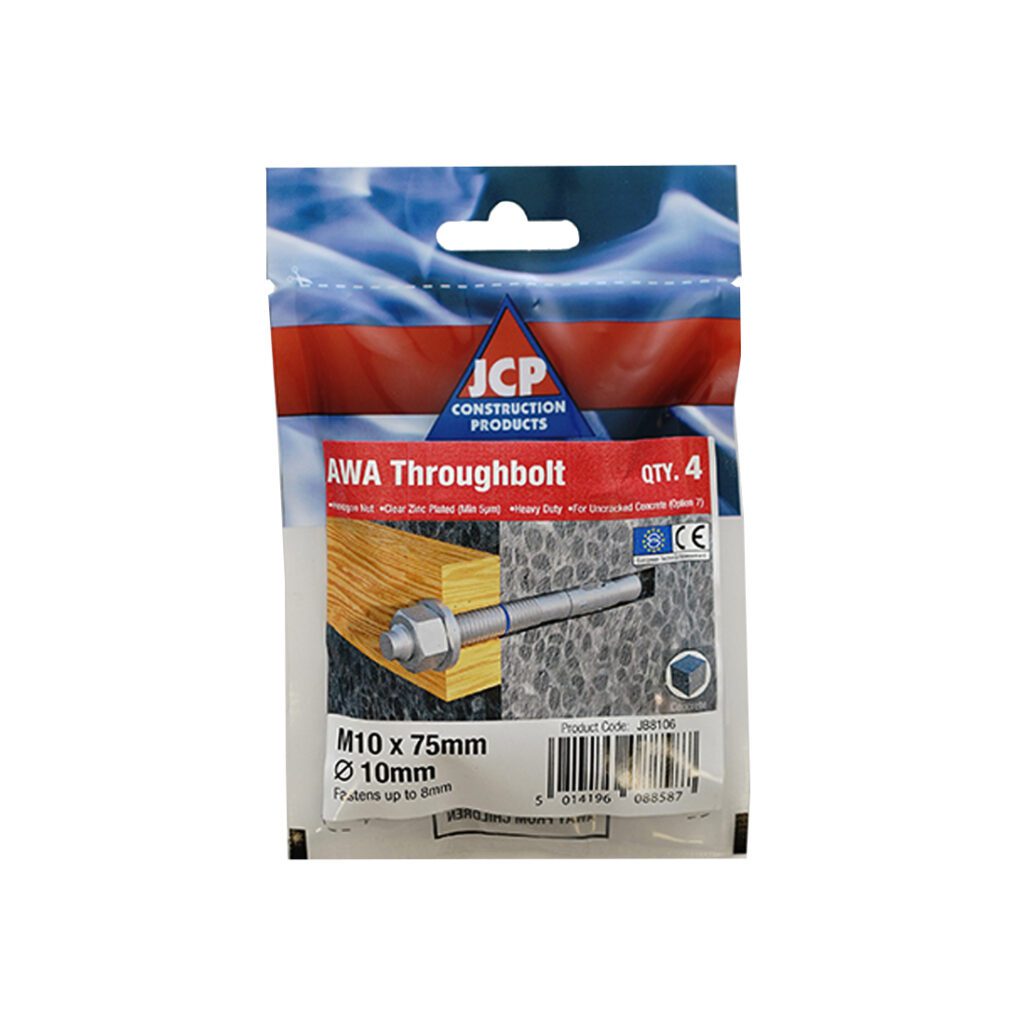

ETA OPTION 7 THROUGHBOLTS BZP

A throughbolt with an Option 7 European Technical Approval suitable for use in non-cracked concrete over C20/25.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Medium to High Performance
Wide Range Of Sizes
Fast and Secure Installation
Through Fixing
Three Way Expansion Sleeve
Zinc Plated Min. 5μm
Reaction To Fire Class A1

Approvals

ETA accreditation
CE accreditation

Product Information

Concrete C20/25 to C50/60
Non-Cracked Concrete

  • Metal Structures
  • Brackets
  • Machines
  • Racking
  • Railings

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
Drill Diameter mm
JB8100 M8 x 65mm 8
JB8103 M8 x 100mm 8
JB8106 M10 x 75mm 10
JB8109 M10 x 90mm 10
JB8112 M10 x 120mm 10
JB8115 M12 x 100mm 12
JB8118 M16 x 125mm 16

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth

Clean hole by blowing to remove drilling debris and dust

Insert anchor through fixture into concrete and lightly hammer into concrete

Tighten with torque wrench to recommended torque

>
