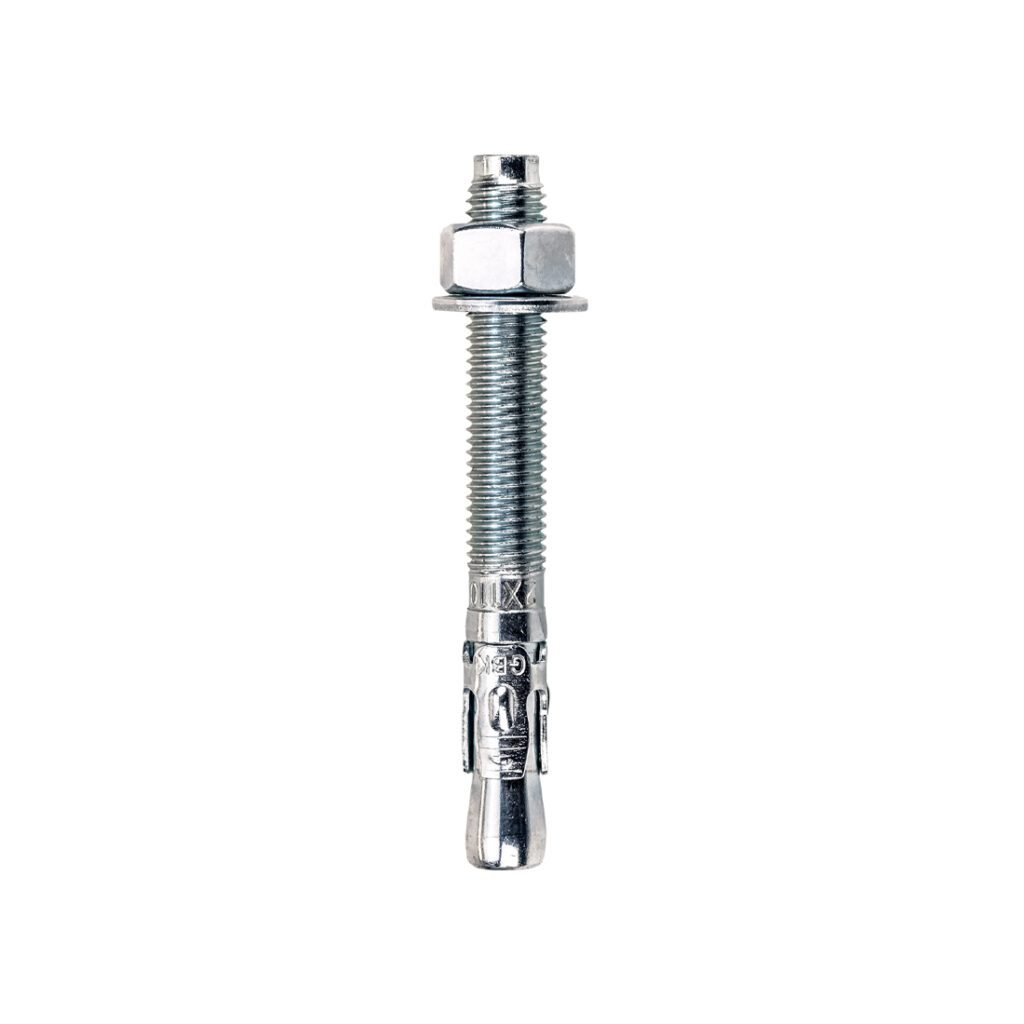

ETA OPTION 7 THROUGHBOLTS BZP

A throughbolt with an Option 7 European Technical Approval suitable for use in non-cracked concrete over C20/25.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Medium to High Performance
Wide Range of Sizes
Fast and Secure Installation
Through Fixing
Three Way Expansion Sleeve
Zinc Plated Min. 5μm
Reaction To Fire Class A1

Approvals

ETA accreditation
CE accreditation

Product Information

Concrete C20/25 to C50/60
Non-Cracked Concrete

  • Metal Structures
  • Brackets
  • Machines
  • Racking
  • Railings

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
Drill Diameter mm
JP3042 M8 x 50mm 8
JP3045 M10 x 100mm 10
JP3048 M12 x 100mm 12
JP3051 M12 x 140mm 12
JP3054 M12 x 180mm 12

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete and lightly hammer into concrete.

Tighten with torque wrench to recommended torque.

>
