EYE BOLT SHIELD ANCHORS ZYP

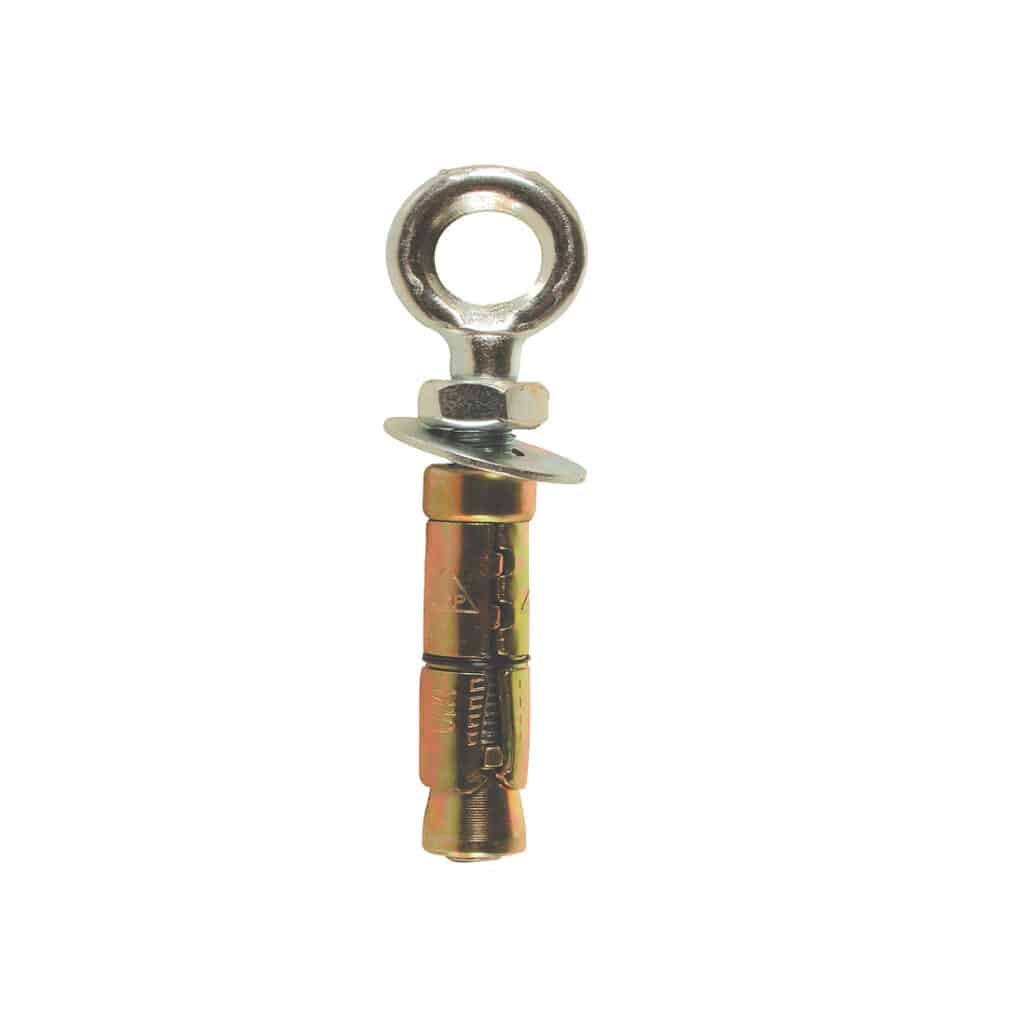

The eye bolt shield anchor is a three way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brick work.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion
Forged Eye for Extra Strength
Zinc Plated and Yellow Passivated Minimum 5µm

Product Information

Non-Cracked Concrete C20/25 & C50/60
Solid Brickwork
Solid Concrete Blocks

  • Attaching Wires
  • Bird Deterrents
  • Ladder Restraints.

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
Drill Diameter mm

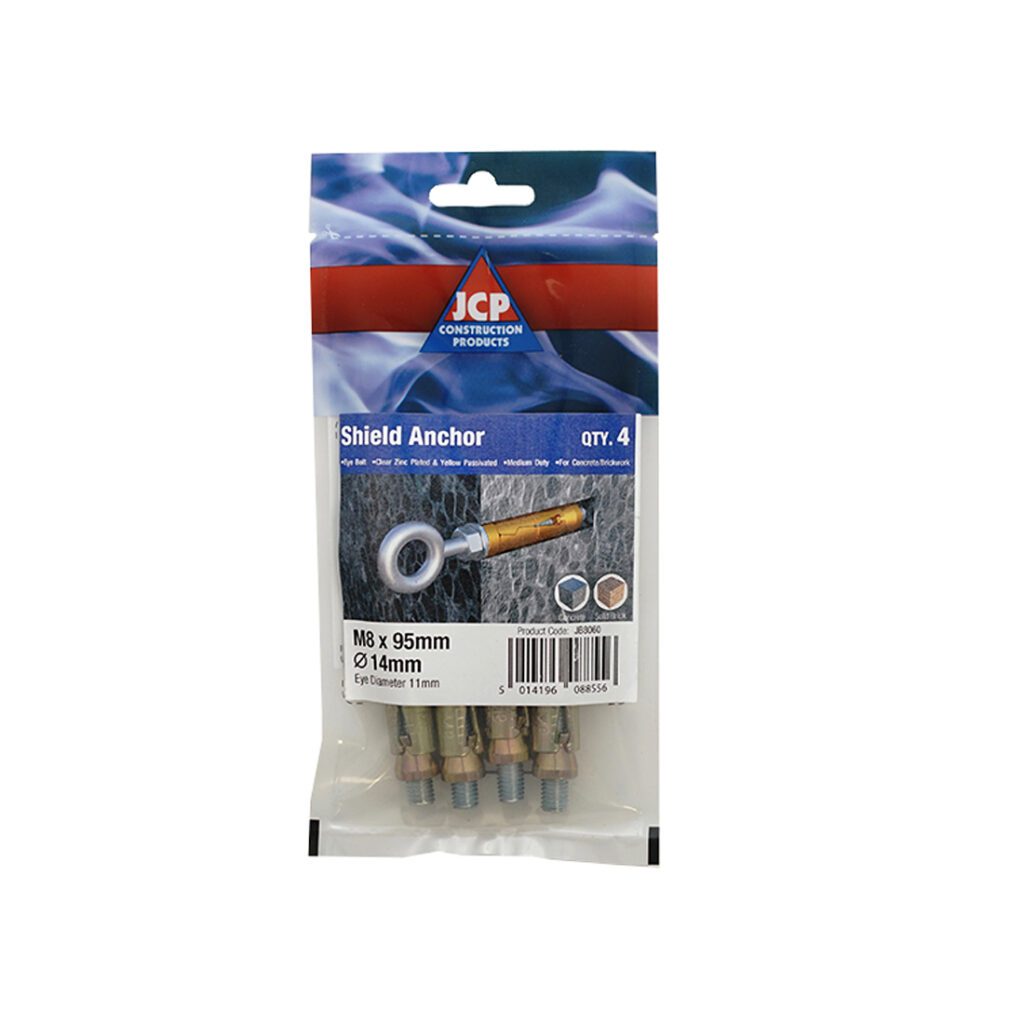

JB8060 M8 Eye Bolt 14

Installation Instructions

Drill correct diameter hole to correct depth.

Clean the hole by brushing and blowing to remove all dust and drilling debris.

Insert shield with hook or eye assembled, into hole.

Tighten nut to recommended torque.

>
