Range Data

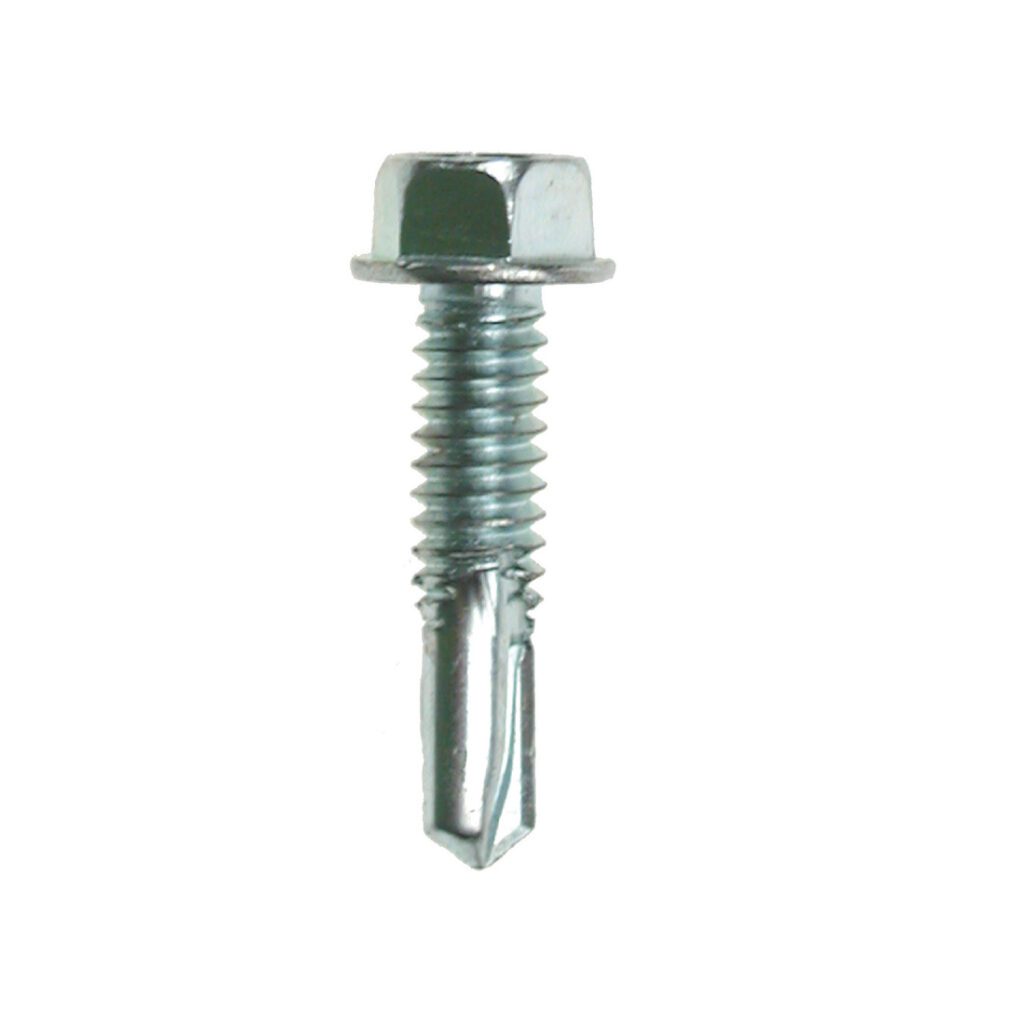

| Part Number |
Thread Diameter
(dnom) mm
|
Length
(L) mm
|
Point Type
|
Steel Thickness
(tsteel)
|
Max Fixture Thickness
(tfix) mm
|
|---|---|---|---|---|---|
| GP42013 | 4.2 | 13 | 2 | 1.2-2.5 | 5 |
| GP42016 | 4.2 | 16 | 2 | 1.2-2.5 | 8 |
| GP42019 | 4.2 | 19 | 2 | 1.2-2.5 | 11 |
| GP42025 | 4.2 | 25 | 2 | 1.2-2.5 | 17 |
| GP48016 | 4.8 | 16 | 3 | 1.2-3.0 | 2 |
| GP48019 | 4.8 | 19 | 3 | 1.2-3.0 | 5 |
| GP48025 | 4.8 | 25 | 3 | 1.2-3.0 | 11 |
