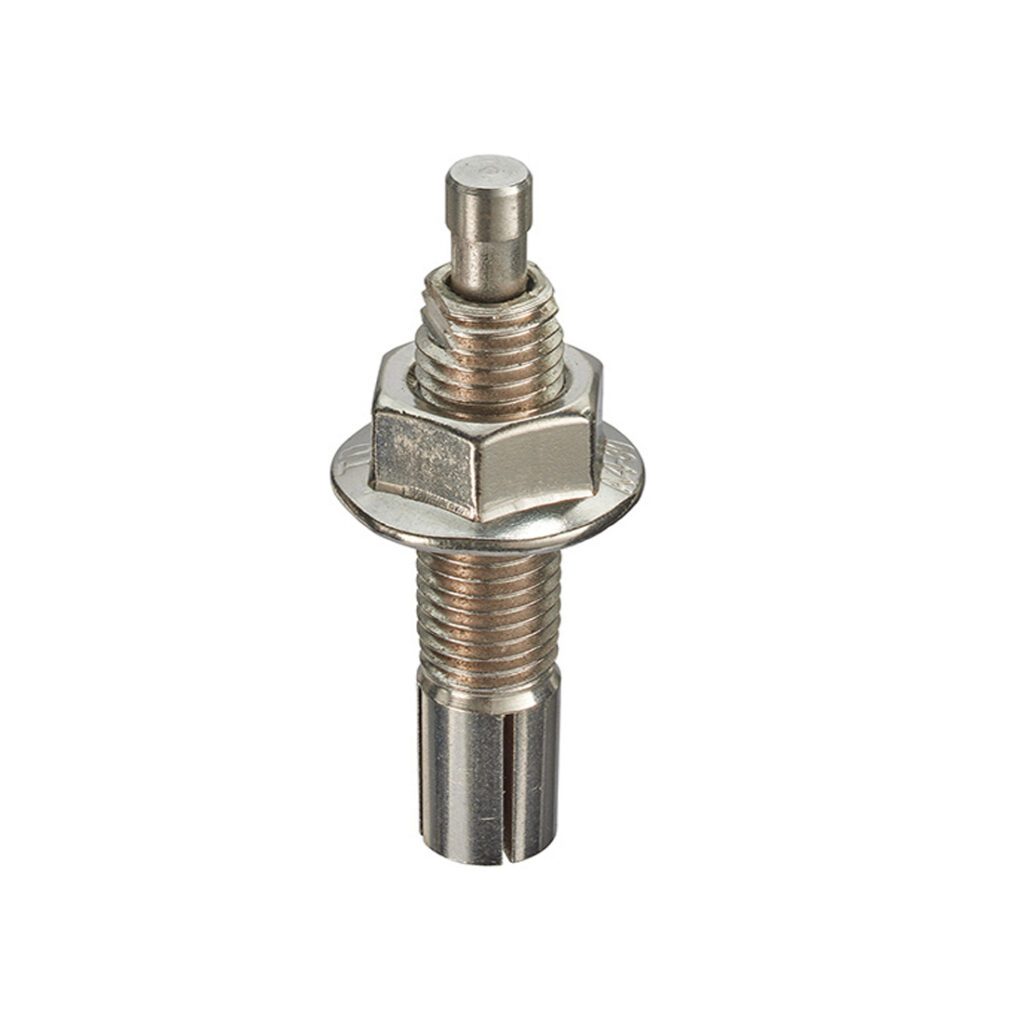

HEAVY DUTY BLIND BOLTS A4 STAINLESS STEEL

With its expanding base and unique pin-locking mechanism, the Heavy Duty Blind Bolt is the idea fixing solution between heavy-weight steel sections. The Heavy Duty Blind Bolt employs a simple activation method designed to reduce installation time and expense. The wide range of sizes gives flexibility of choosing the correct bolt according to the fixture thickness.

Material: A4-70 Stainless Steel
Fast And Secure Installation
Reaction To Fire Class A1
High-Performance
No Over-Sized Hole Required
Increased Assembly Efficiency
Unique Pin Locking Design

Data SheetData Sheet

Product Information

  • Box Sections
  • Vertical Cylindrical Sections
  • Hollow Profiles
  • Simple Connections

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Size
Length (L) mm
Hole Diameter mm
Min Fixture Thickness (tfix) mm
Max Fixture Thickness (tfix) mm
Depth Clearance (D0) mm
Width Across Flats (A/F) mm
Width Across Corners (A/C) mm
Washer Diameter (d2) mm
BBHD0845A4 M8 45 8 7 25 10 13 15 18
BBHD1045A4 M10 45 10 7 25 12 16 17 22
BBHD1060A4 M10 60 10 7 40 12 16 17 22
BBHD1245A4 M12 45 12 8 22 15 18 20.5 26
BBHD1260A4 M12 60 12 8 37 15 18 20.5 26
BBHD1660A4 M16 60 16 12 30 25 24 27.5 34.5
BBHD2070A4 M20 70 20 15 32 30 30 33 43
>
