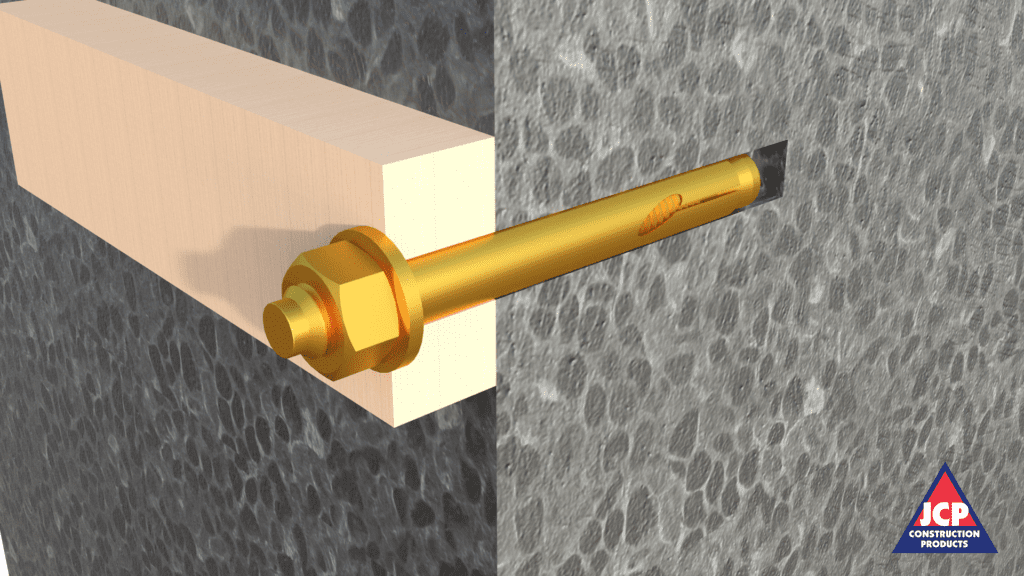

• HEXAGON FLANGE NUT SLEEVE ANCHORS ZYP video thumbnail

HEXAGON FLANGE NUT SLEEVE ANCHORS ZYP

The hex nut sleeve anchor is a thin walled sleeve anchor suitable for use in most types of non-cracked concrete or masonry. The diagonal slot enables the small gaps to be pulled down and a positive clamping force to be exerted through the fixture.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Through Fixing
Torque Controlled Expansion
Supplied Pre-Assembled For Rapid Installation
Zinc Plated Minimum 5µm

Data SheetData Sheet

Product Information

Non-Cracked Concrete
Stone
Brickwork
Perforated Bricks
Dense Concrete Bricks

  • Plates
  • Hand Rails
  • Racking
  • Stadium Seating
  • Signs

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Outside / Drill Diameter (d0) mm
Anchor Length (LH) mm
Thread Diameter (dnom) mm
Max Fixture Thickness (tfix) mm
Fixture Clearance Hole (df) mm
Embedment Depth (hnom) mm
Min Hole Depth (h1) mm
Min Structure Thickness (h) mm
Installation Torque (Tinst) Nm
SLN08040 8 40 6 5 9 30 35 100 10
SLN08085 8 80 6 45 9 35 40 100 10
SLN08065 8 65 6 30 9 35 40 100 10
SLN10050 10 45 8 5 12 40 45 100 20
SLN10075 10 70 8 30 12 40 45 100 20
SLN10100 10 95 8 55 12 40 45 100 20
SLN10125 10 120 8 80 12 40 45 100 20
SLN12060 12 60 10 15 14 45 50 100 35
SLN12075 12 70 10 20 14 50 60 100 35
SLN12100 12 95 10 50 14 50 60 100 35
SLN12125 12 120 10 65 14 50 60 100 35
SLN16065 16 65 12 10 18 50 60 100 45
SLN16110 16 105 12 50 18 55 65 100 45
SLN16150 16 150 12 90 18 55 65 100 45
SLN20080 20 75 16 15 22 60 70 100 70
SLN20110 20 100 16 45 22 60 70 100 70
SLN20150 20 140 16 85 22 60 70 100 70

Installation Instructions

Position fixture and drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Tighten with torque wrench to recommended torque.

>
