HEXAGON HEAD ANKERBOLTS BZP

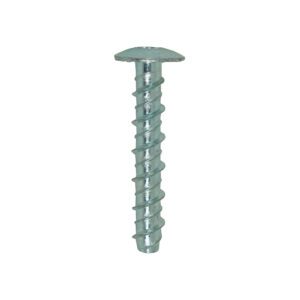

The hexagon head ankerbolt is a self is a self tapping anchor which cuts it’s own thread in the base material. Suitable for use in solid concrete, hollow concrete, bricks, dense blocks and most natural stone.

Finish: Bright Zinc Plated (BZP)
Material: Steel

Fast and Secure Installation

Expansion Free

Undercutting Action

Through Fixing

High Performance

Zinc Plated Minimum 5µm (For Dry, Internal Applications Only)

Data Sheet

Product Information

Concrete C20/25 To C50/60

Non-Cracked Concrete

Hollow Concrete Planks

Solid Brickwork

Concrete Block

Natural Stone

Railings and Handrails
Wooden Beams
Brackets
Pipeline and Cable Routes
Suspended Ceilings
Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data Sheet

Range Data
Installation Instructions

Shallow Embedment

Part Number	Drill Hole Diameter (d₀) mm	Thread Diameter (d_nom) mm	Anchor Length (L_H) mm	Fixture Clearance Hole (d_f) mm	Max Fixture Thickness (t_fix) mm	Min Hole Depth (h₁) mm	Embedment Depth (h_nom) mm	Min. Structure Thickness (h_c) mm	Width Across Flats (A/F) mm	Tightening Torque (T_inst) Nm	Description
JAB08/10060	8	10	60	12	20	55	40	120	15	40
JAB08/10075	8	10	75	12	35	55	40	120	15	40
JAB08/10100	8	10	100	12	60	55	40	120	15	40
JAB08/10130	8	10	130	12	90	55	40	120	15	40
JAB08/10150	8	10	150	12	110	55	40	120	15	40
JAB10/12060	10	12	60	14	10	70	50	125	17	60
JAB10/12075	10	12	75	14	25	70	50	125	17	60
JAB10/12100	10	12	100	14	50	70	50	125	17	60
JAB10/12130	10	12	130	14	80	70	50	125	17	60
JAB10/12150	10	12	150	14	100	70	50	125	17	60
JAB12/14075	12	14	75	16	15	85	60	140	19	80
JAB12/14100	12	14	100	16	40	85	60	140	19	80
JAB12/14130	12	14	130	16	70	85	60	140	19	80
JAB12/14150	12	14	150	16	90	85	60	140	19	80
JAB12/14200	12	14	200	16	140	85	60	140	19	80
JAB14/16075	14	16	75	18	5	100	70	170	24	90
JAB14/16100	14	16	100	18	30	100	70	170	24	90
JAB14/16130	14	16	130	18	60	100	70	170	24	90
JAB14/16150	14	16	150	18	80	100	70	170	24	90
JAB14/16200	14	16	200	18	130	100	70	170	24	90
JAB16/18100	16	18	100	20	20	110	80	190	27	100	Mechanical Galvanised minimum 40µm.
JAB16/18150	16	18	150	20	70	110	80	190	27	100	Mechanical Galvanised minimum 40µm.
JAB16/18200	16	18	200	20	120	110	80	190	27	100	Mechanical Galvanised minimum 40µm.

Deep Embedment

Part Number	Drill Hole Diameter (d₀) mm	Thread Diameter (d_nom) mm	Anchor Length (L) mm	Fixture Clearance Hole (d_f) mm	Max Fixture Thickness (t_fix) mm	Min Hole Depth (h₁) mm	Embedment Depth (h_nom) mm	Min. Structure Thickness (h_c) mm	Width Across Flats (A/F) mm	Tightening Torque (T_inst) Nm	Description
JAB08/10060	8	10	60	12	N/A	75	60	120	15	40
JAB08/10075	8	10	75	12	15	75	60	120	15	40
JAB08/10100	8	10	100	12	40	75	60	120	15	40
JAB08/10130	8	10	130	12	70	75	60	120	15	40
JAB08/10150	8	10	150	12	90	75	60	120	15	40
JAB10/12060	10	12	60	14	N/A	95	75	125	17	60
JAB10/12075	10	12	75	14	N/A	95	75	125	17	60
JAB10/12100	10	12	100	14	25	95	75	125	17	60
JAB10/12130	10	12	130	14	55	95	75	125	17	60
JAB10/12150	10	12	150	14	75	95	75	125	17	60
JAB12/14075	12	14	75	16	N/A	115	90	140	19	80
JAB12/14100	12	14	100	16	10	115	90	140	19	80
JAB12/14130	12	14	130	16	40	115	90	140	19	80
JAB12/14150	12	14	150	16	60	115	90	140	19	80
JAB12/14200	12	14	200	16	110	115	90	140	19	80
JAB14/16075	14	16	75	18	N/A	125	95	170	24	90
JAB14/16100	14	16	100	18	5	125	95	170	24	90
JAB14/16130	14	16	130	18	35	125	95	170	24	90
JAB14/16150	14	16	150	18	55	125	95	170	24	90
JAB14/16200	14	16	200	18	105	125	95	170	24	90
JAB16/18100	16	18	100	20	N/A	145	115	190	27	100	Mechanical Galvanised minimum 40µm.
JAB16/18150	16	18	150	20	35	145	115	190	27	100	Mechanical Galvanised minimum 40µm.
JAB16/18200	16	18	200	20	85	145	115	190	27	100	Mechanical Galvanised minimum 40µm.

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete using suitable impact wrench and stop before the anchor touches the fixture.

Finish by tightening with torque wrench to recommended torque.
