• HEXAGON HEAD ANKERBOLTS BZP video thumbnail

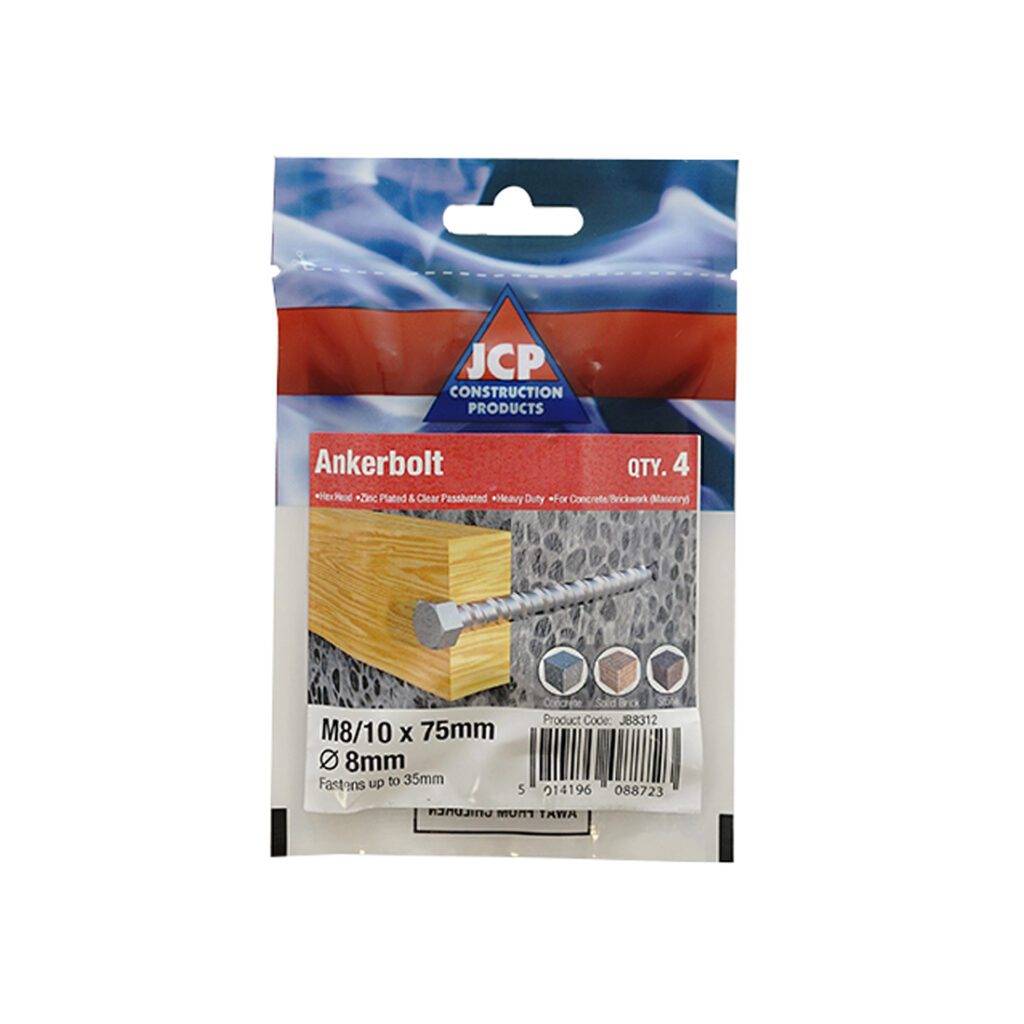

HEXAGON HEAD ANKERBOLTS BZP

The hexagon head ankerbolt is a self-tapping anchor which cuts its own thread in the base material. Suitable for use in solid concrete, hollow concrete, bricks, dense blocks and most natural stone.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Undercutting Action
Fast and Secure Installation
Expansion Free
Through Fixing
High Performance
Zinc Plated Minimum 5µm (For Dry, Internal Applications Only)

Product Information

Concrete C20/25 to C50/60
Non-Cracked Concrete
Hollow Concrete Planks
Solid Brickwork
Concrete Block
Natural Stone

  • Railings and Handrails
  • Wooden Beams
  • Brackets
  • Pipeline and Cable Routes
  • Suspended Ceilings
  • Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
Drill Diameter mm
JB8309 8mm x 60mm 8
JB8312 8mm x 75mm 8
JB8315 8mm x 100mm 8
JB8317 8mm x 150mm 8
JB8318 10mm x 75mm 10
JB8321 10mm x 100mm 10
JB8324 10mm x 150mm 10

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete using suitable impact wrench and stop before the anchor touches the fixture.

Finish by tightening with torque wrench to recommended torque.

>
