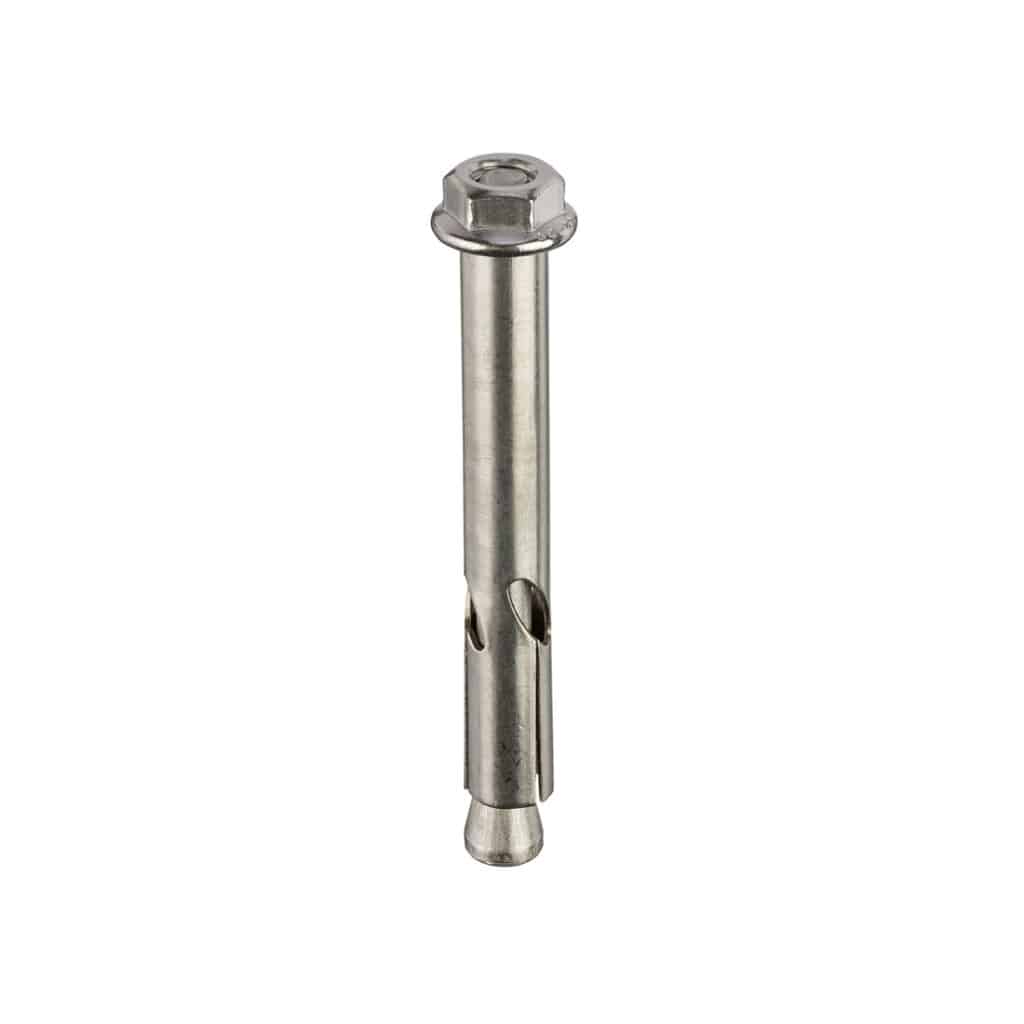

HEXAGON FLANGE NUT SLEEVE ANCHORS A4 STAINLESS STEEL

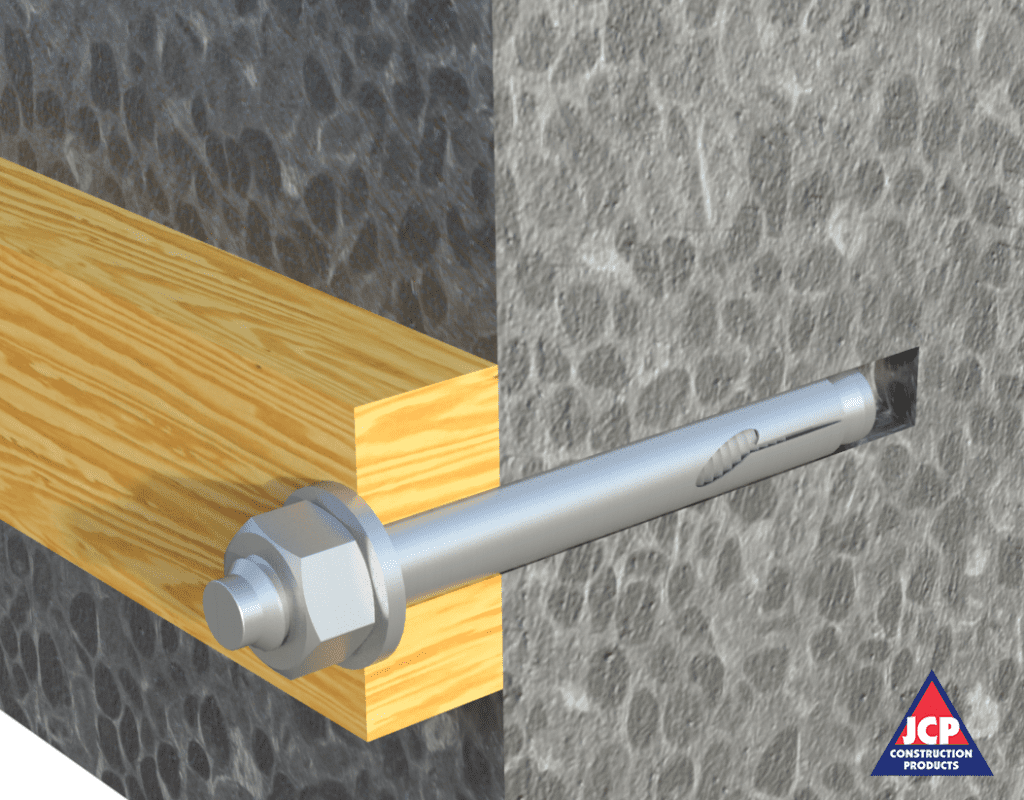

The stainless steel A4-316 sleeve anchor is a thin-walled sleeve anchor suitable for use in concrete, stone, brickwork, perforated bricks and dense concrete blocks. The diagonal slot enables the small gaps to be pulled down and a positive clamping force to be exerted through the fixture.

Material: A4-316 Stainless Steel
Through Fixing
Torque Controlled Expansion
Suitable for External Use and Marine Environments
Supplied Pre-Assembled For Rapid Installation

Data SheetData Sheet

Product Information

Non-Cracked Concrete
Stone
Brickwork
Perforated Bricks
Dense Concrete Blocks

  • Plates
  • Hand Rails
  • Racking
  • Stadium Seating
  • Signs

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Outside / Drill Diameter (d0) mm
Anchor Length (LH) mm
Thread Diameter (dnom) mm
Max Fixture Thickness (tfix) mm
Fixture Clearance Hole (df) mm
Embedment Depth (hnom) mm
Min Hole Depth (h1) mm
Min Structure Thickness (h) mm
Installation Torque (Tinst) Nm
SLSS06060 6 55 4.5 25 7 30 35 100 7
SLSS08040 8 40 6 5 10 35 40 100 10
SLSS08065 8 65 6 30 10 35 40 100 10
SLSS10050 10 50 8 10 12 40 45 100 20
SLSS10075 10 75 8 35 12 40 45 100 20
SLSS10100 10 95 8 55 12 40 45 100 20
SLSS12060 12 55 10 10 14 45 60 100 35
SLSS12075 12 65 10 20 14 45 60 100 35
SLSS12100 12 95 10 50 14 45 60 100 35

Installation Instructions

Position fixture and drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Tighten with torque wrench to recommended torque.

>
