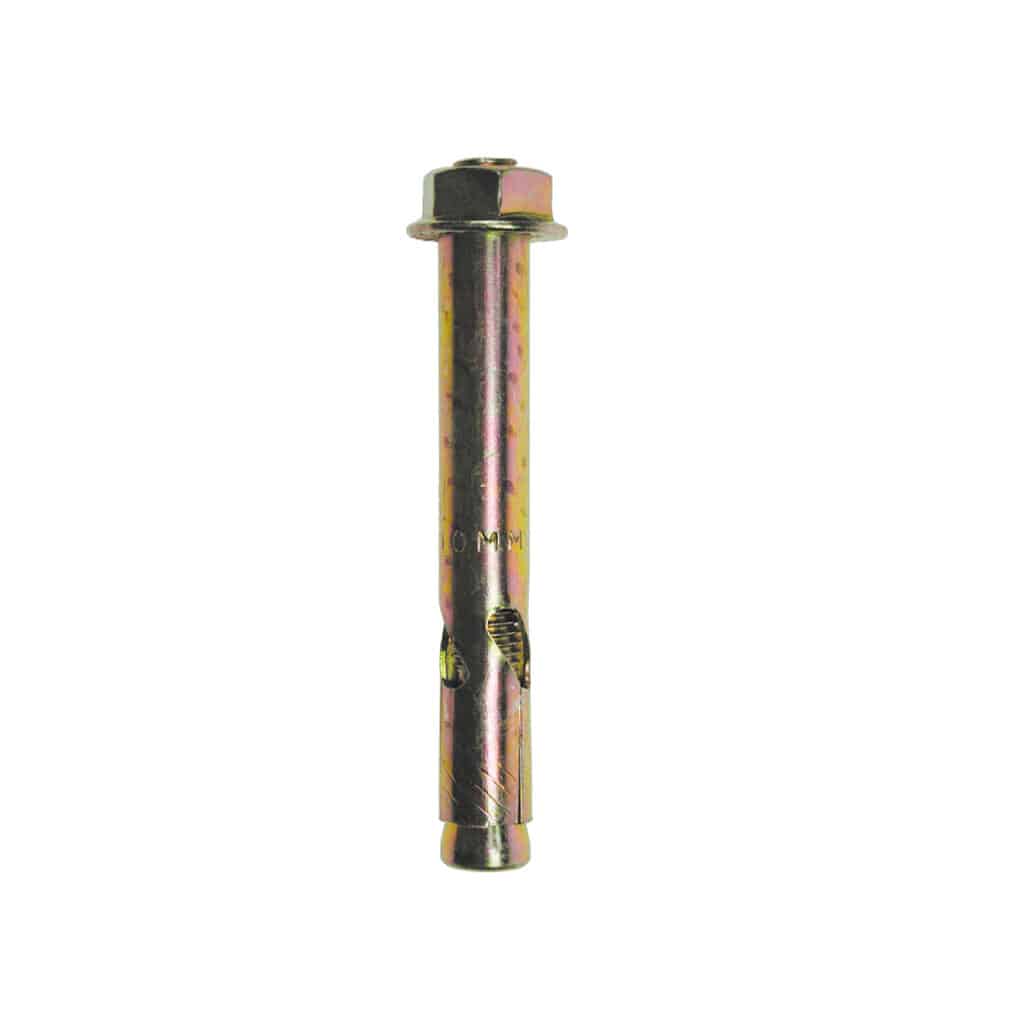

HEXAGON FLANGE NUT SLEEVE ANCHORS ZYP

The hexagon nut sleeve anchor is a thin-walled sleeve anchor suitable for use in most types of non-cracked concrete or masonry. The diagonal slot enables the small gaps to be pulled down and a positive clamping force to be exerted through the fixture.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Clamping Force
Zinc Plated Minimum 5µm
Through Fixing
Suitable for Fixing in to Brick, Blocks and Concrete
Supplied Pre-Assembled for Rapid Installation
Torque Controlled Expansion

Product Information

Non-Cracked Concrete
Stone
Brickwork
Perforated Bricks
Dense Concrete Bricks

  • Plates
  • Hand Rails
  • Racking
  • Stadium Seating
  • Signs

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
Drill Diameter mm
JB8200 8mm x 85mm 8
JB8203 10mm x 75mm 10
JB8206 10mm x 100mm 10
JB8209 12mm x 75mm 12
JB8212 12mm x 100mm 12

Installation Instructions

Position fixture and drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Tighten with torque wrench to recommended torque.

>
