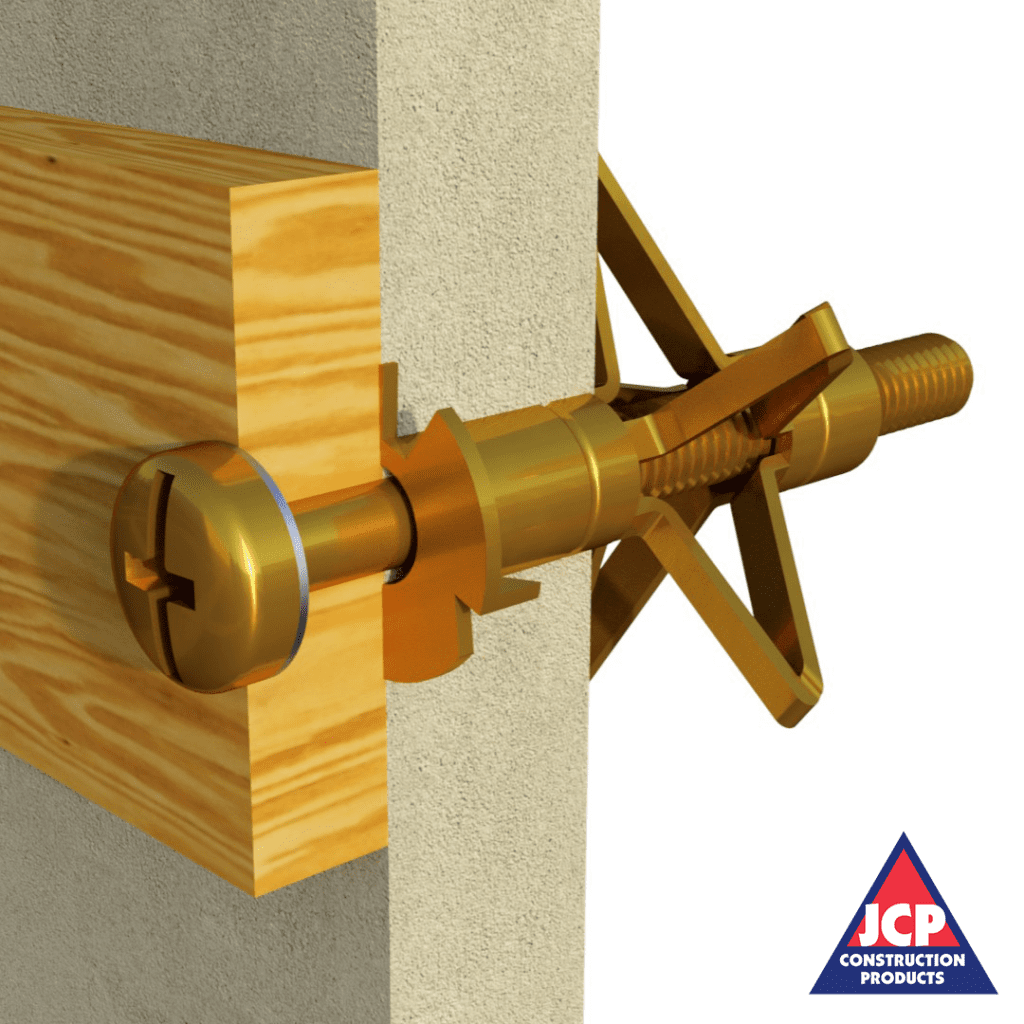

HOLLOW WALL ANCHORS ZYP

The hollow wall anchor provides a strong, permanent anchorage to plasterboard and other partition materials including chipboard, plywood, fibreboard and hardboard.

Finish: Zinc and Yellow Plated
Material: Steel
Provides A Strong, Permanent Anchorage To Plasterboard And Other Partition Material
Five Way Expansion
All Metal Expanding Cavity Anchor
Anti-Rotation Lugs
Flange Head
Complete With Pan Head Screws

Data SheetData Sheet

Product Information

Plasterboard
Chipboard
Plywood
Fibreboard
Hardboard

  • Small Cupboards
  • Mirrors
  • Pictures
  • Hanging Light Suspended Ceilings

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Screw Size mm
Wall Thickness mm
Max Fixture Thickness (tfix) mm
Hole Diameter mm
LHWA04025 M4 X 25 0-4 10 7
LHWA04045 M4 X 45 8-13 15 7
LHWA04050 M4 X 50 16-20 15 7
LHWA04065 M4 X 65 22-27 30 7
LHWA05045 M5 X 45 5-10 15 9
LHWA05060 M5 X 60 5-13 23 9
LHWA05070 M5 X 70 17-25 23 9
LHWA06060 M6 X 60 7-13 23 10
LHWA06070 M6 X 70 16-24 24 10

Installation Instructions

Drill correct diameter hole in base material.

Insert fixing through hole.

Expand anchor using screw or setting tool.

Remove screw, position fixture, insert screw and tighten.

>
