HOOK BOLT SHIELD ANCHORS ZYP

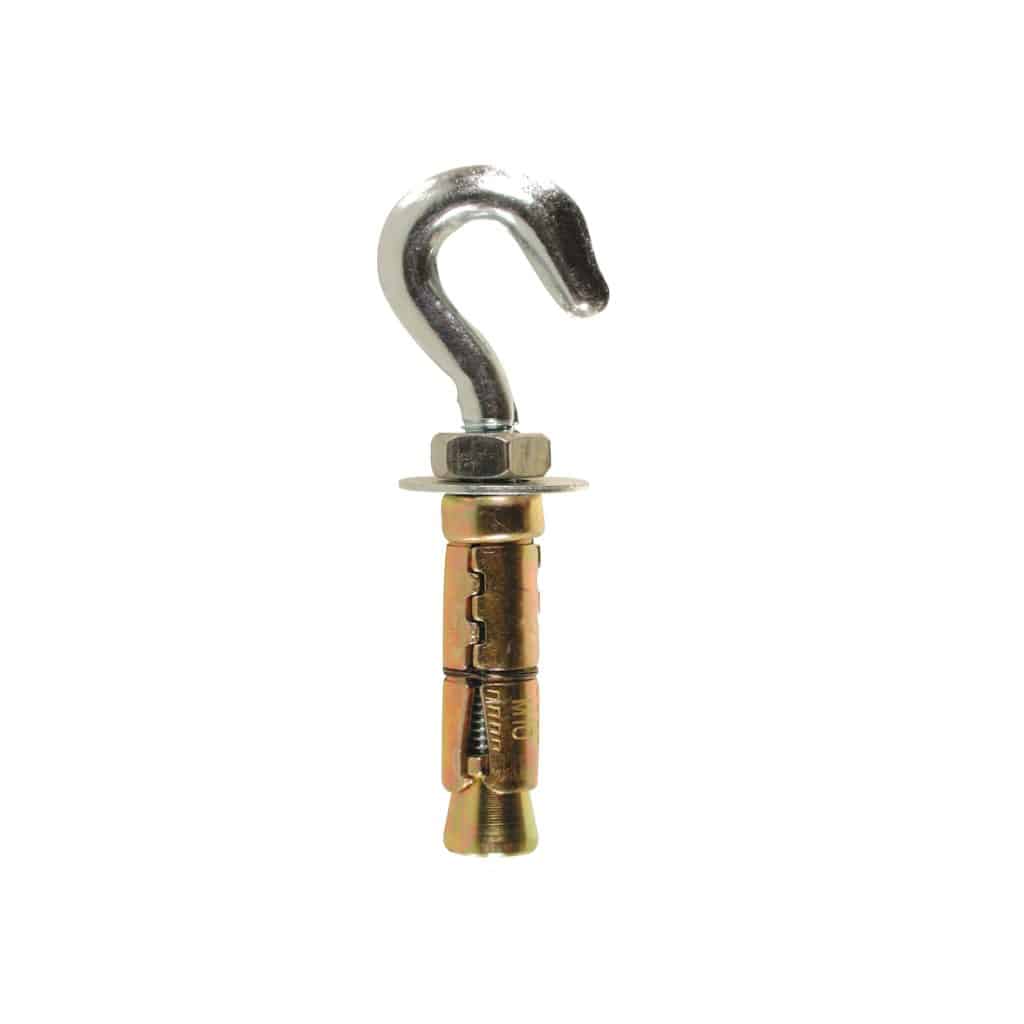

The hook bolt shield anchor is a three-way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brickwork.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion
Forged Hook for Extra Strength
ZINC PLATED MINIMUM 5µm

Data SheetData Sheet

Product Information

Non-Cracked Concrete C20/25 To C50/60
Solid Brickwork
Solid Concrete Blocks

  • Attaching Wires
  • Bird Deterrents
  • Ladder Restraints

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Drill Hole Diameter (d0) mm
Eye Diameter mm
Overall Length mm
Min Hole Depth (h1) mm
AHBM06 M6 12 8 80 50
AHBM08 M8 14 10 95 55
AHBM10 M10 16 12 115 65
AHBM12 M12 20 16 145 85

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert shield with hook or eye assembled, into hole.

Tighten nut to recommended torque.

>
