HOOK BOLTS AND EYE BOLTS

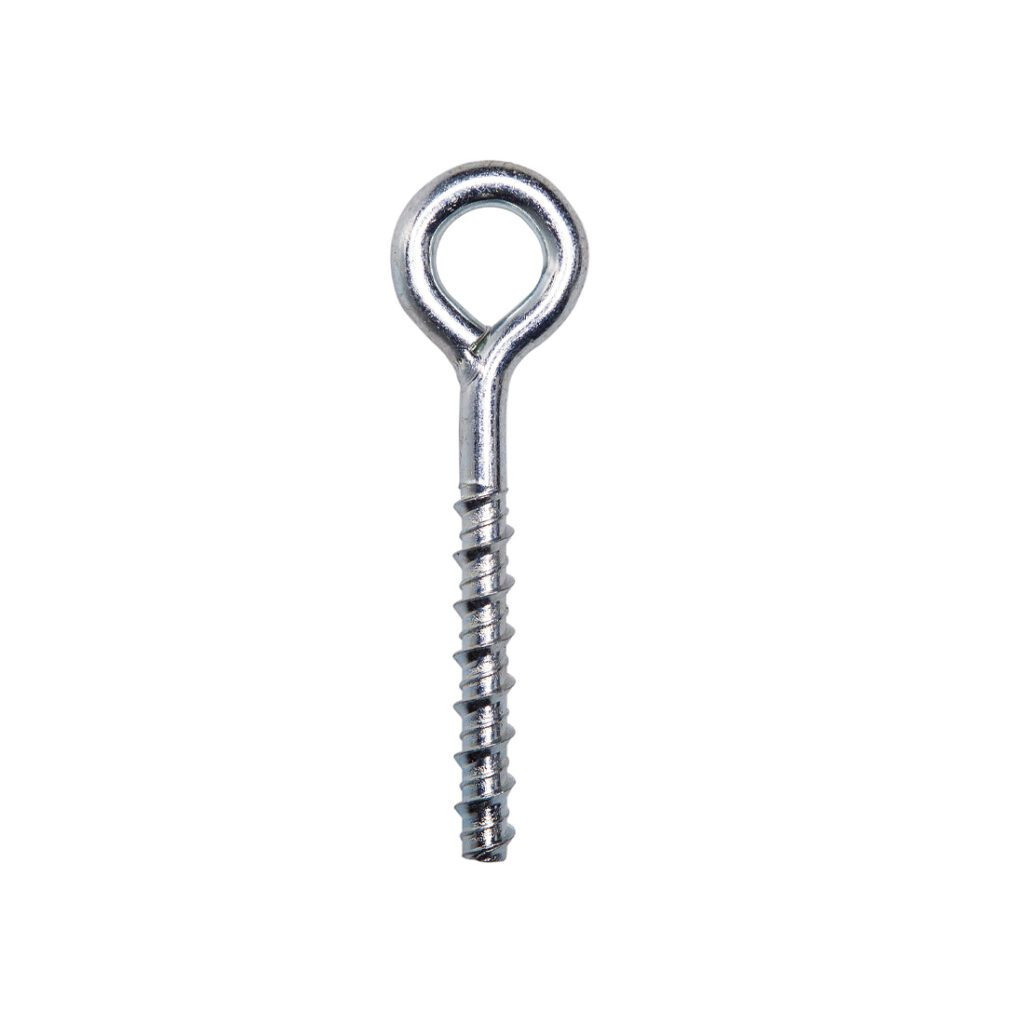

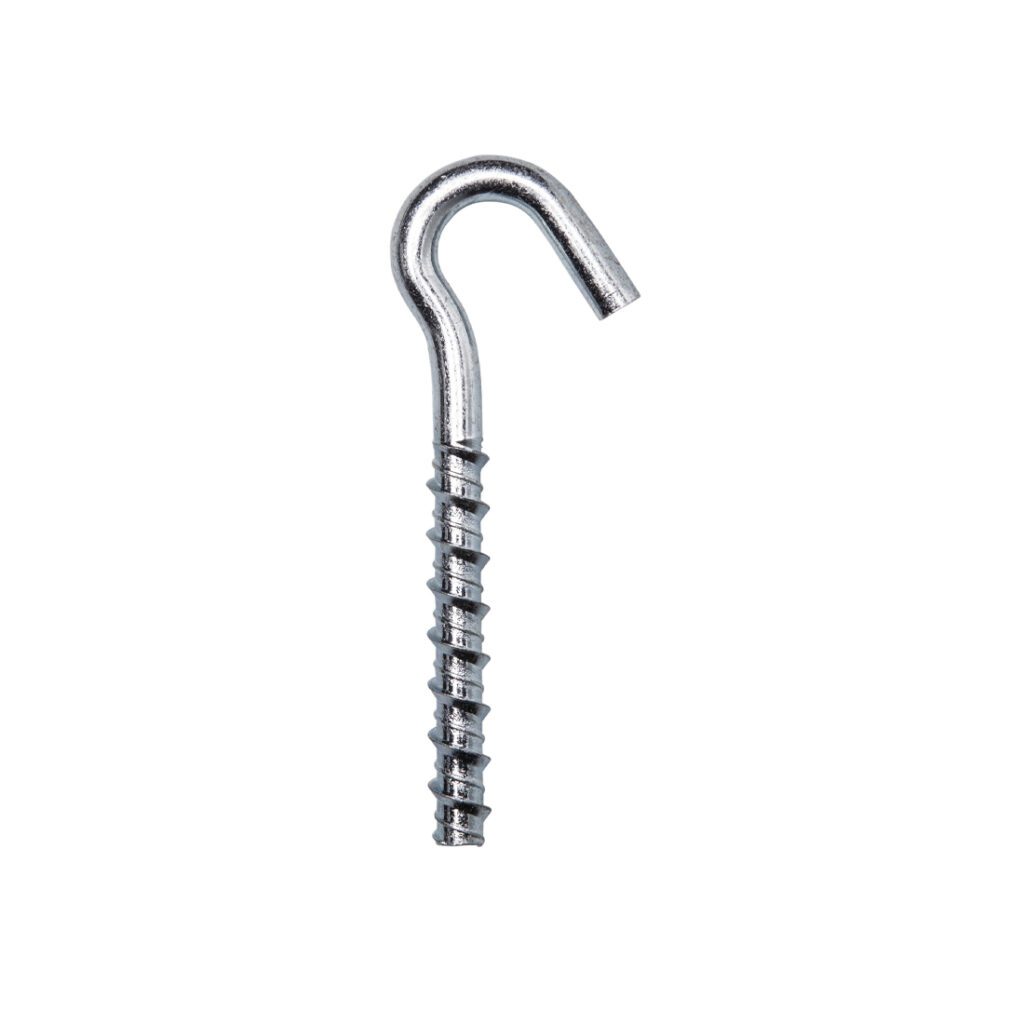

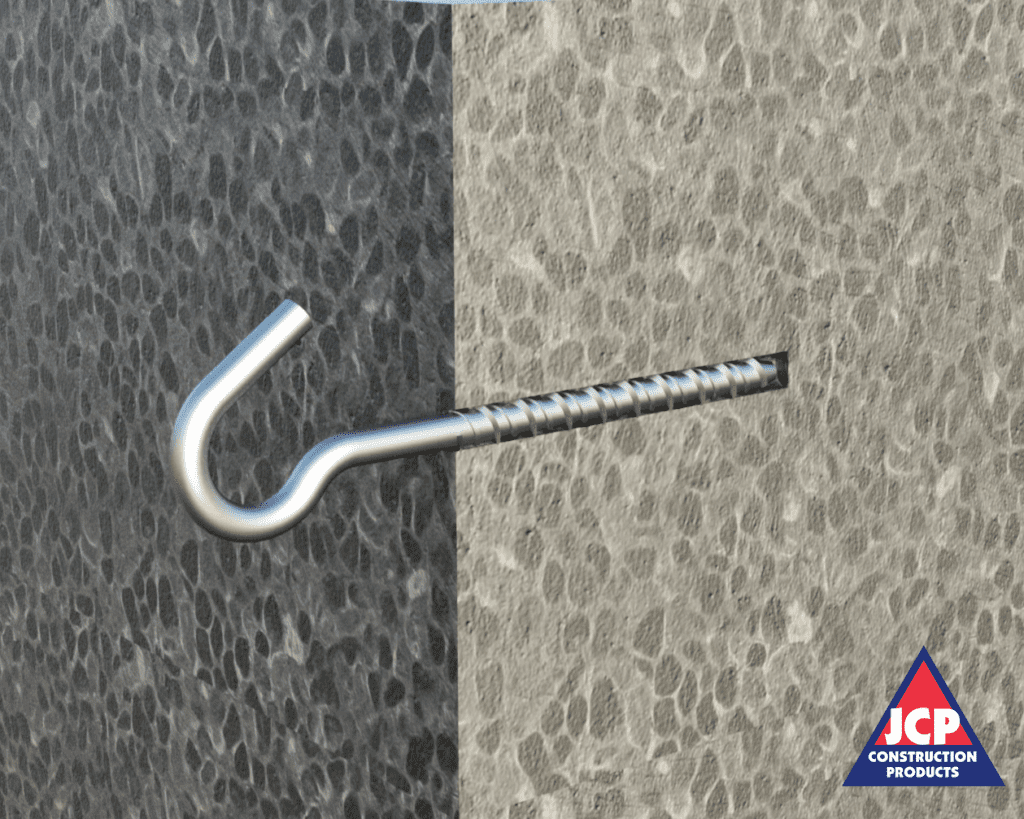

A self-tapping hook bolt and eye bolt that cuts its own thread in base materials. Suitable for use in solid concrete, hollow concrete, bricks, dense blocks and most natural stone.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
Expansion Free
ZINC PLATED MINIMUM 5μM

Data SheetData Sheet

Product Information

Solid Concrete
Bricks
Dense Blocks
Natual Stone

  • Attaching Cables and Ropes to Concrete Structures.

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Anchor Hole Size (d0) mm
Thread Length (Lth) mm
Anchor Length (LH) mm
Min Hole Depth (h1) mm
Eye Diameter mm
JAB06/08050HOOK 6 50 90 65 13
JAB08/10055HOOK 8 55 100 70 14
JAB06/08050EYE 6 50 90 65 13
JAB08/10055EYE 8 55 100 70 14
>
