J-FIX PURE EPOXY RESIN 385ML

Pure epoxy resin is a 3:1 ratio resin with very high load capacities. Red in colour and approved for use in contact with potable (drinking) water.

ETA Option 1 Approved
100 Years Working Life
Dry/Wet/Flooded Holes
Expansion Free
Close Spacing and Edge Distance
High-Performance

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
SEISMIC accreditation
WRAS accreditation

Product Information

Concrete C20/25 To C50/60
Cracked/Non-Cracked Concrete
Dry/Wet/Flooded Holes
Solid Brickwork
Concrete Block
Natural Stone

  • Racking Systems
  • Safety Barriers
  • Formwork Support Systems
  • Structural Steelwork
  • Masonry Support
  • Bolting Machinery
  • Juliet Balconies

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

COSHH Safety Data SheetCOSHH Safety Data Sheet

WRAS ApprovalWRAS Approval

Range Data

Part Number
Volume ml
Description

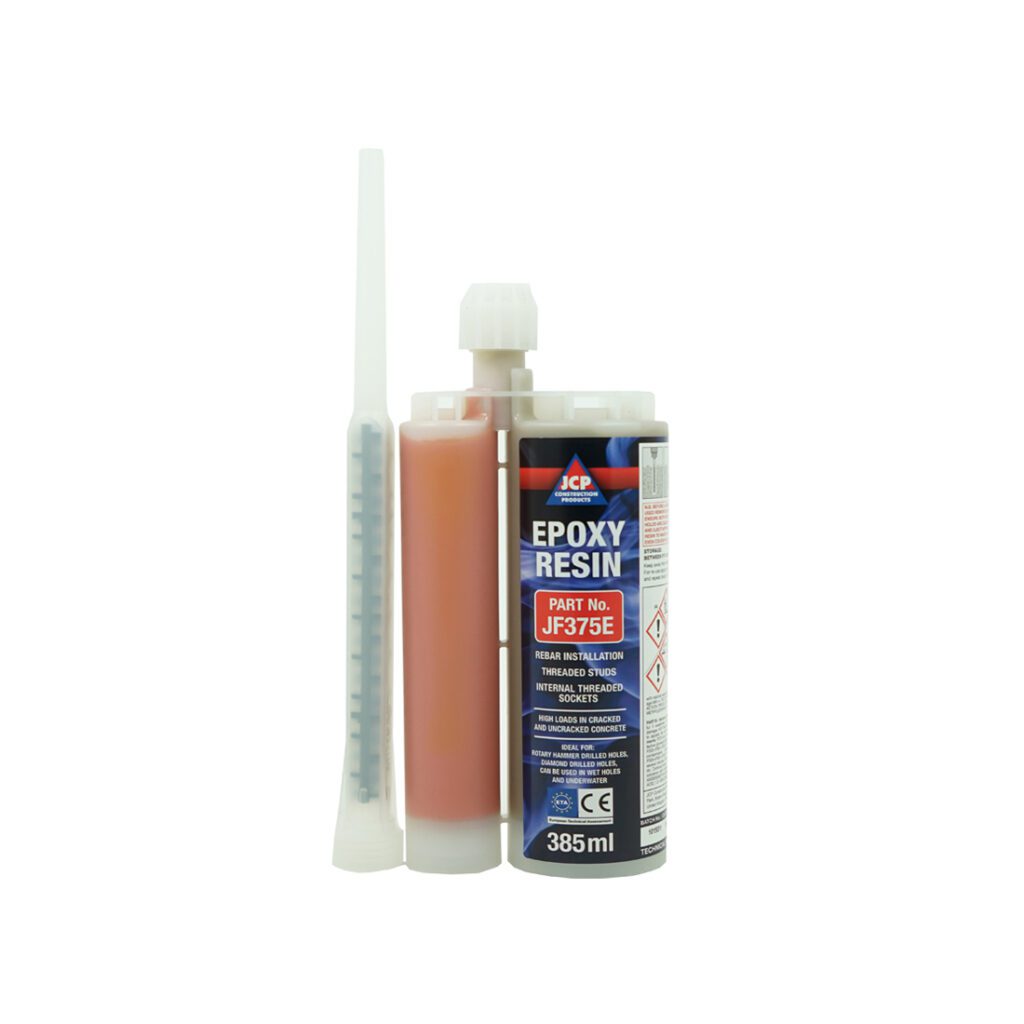

JF375E 385 Pure Epoxy Resin in Cartridge + 1 Mixer Nozzle

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by brushing, blowing to remove drilling debris and dust:
2×Blowing 2×Brushing 2×Blowing 2×Brushing 2×Blowing.

Attach nozzle to cartridge.
Extrude first part to waste until an even colour is achieved.
Fill hole 1/3 to 1/2 full starting from the bottom of the hole.

Insert stud into base material by hand using a twisting motion.

Allow resin to cure.
Attach fixture.
Tighten with torque wrench to recommended torque.

>
