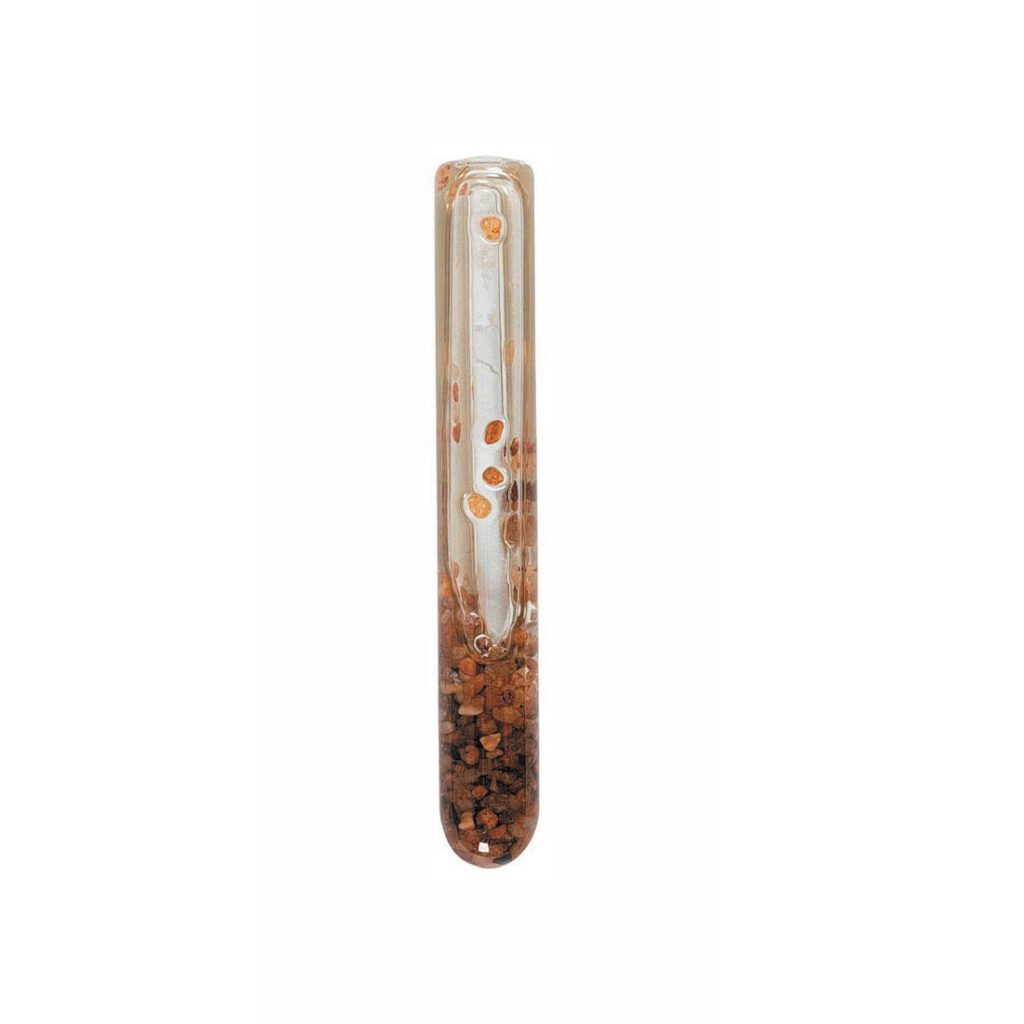

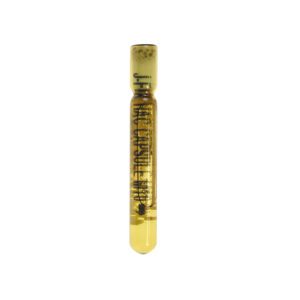

J-FIX SPIN IN GLASS CAPSULES

The j-fix spin in glass capsule anchor is used with the threaded studs to provide a stress free anchorage in concrete. The quartz aggregate contained in the capsule enable the anchor to achieve exceptional loads.

ETA Option 7 Approved
Good Resistance to Vibrating Loads
Can Be Used In Wet And Corrosive Environments
Expansion Free
Epoxy Acrylate
High Performance

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation

Product Information

Concrete C20/25 To C50/60
Non-Cracked Concrete
Dry/Wet/Flooded Holes
Solid Brickwork
Concrete Block
Natural Stone

  • Racking Systems
  • Safety Barriers
  • Formwork Support Systems
  • Structural Steelwork
  • Masonry Support
  • Bolting Machinery
  • Juliet Balconies

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Declaration of PerformanceDeclaration of Performance

Certificate of ConformityCertificate of Conformity

COSHH Safety Data SheetCOSHH Safety Data Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Capsule Diameter (Dp) mm
Drill Hole Diameter (d0) mm
Capsule Length (Lp) mm
Min Hole Depth (h1) mm
Description
JCAPSM08 M8 9 10 80 80 Minimum Hole Depth for the Spin in Capsules: h0=hef
JCAPSM10 M10 11 12 80 90 Minimum Hole Depth for the Spin in Capsules: h0=hef
JCAPSM12 M12 13 14 95 110 Minimum Hole Depth for the Spin in Capsules: h0=hef
JCAPSM16 M16 17 18 95 125 Minimum Hole Depth for the Spin in Capsules: h0=hef
JCAPSM20 M20 17 22 160 170 Minimum Hole Depth for the Spin in Capsules: h0=hef
JCAPSM24 M24 22 26 175 210 Minimum Hole Depth for the Spin in Capsules: h0=hef
JCAPSM30 M30 25 32 230 280 Minimum Hole Depth for the Spin in Capsules: h0=hef

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by brushing, blowing to remove drilling debris and dust:
2×Blowing 2×Brushing 2×Blowing 2×Brushing 2×Blowing.

Insert Spin-In Capsule into drilled hole with air gap in capsule nearest to surface.

Attach setting tool to stud and spin into capsule with drilling machine.
Using rotary hammer action until Depth Mark is reached.

Allow resin to cure.
Attach fixture.
Tighten with torque wrench to recommended torque.

>
