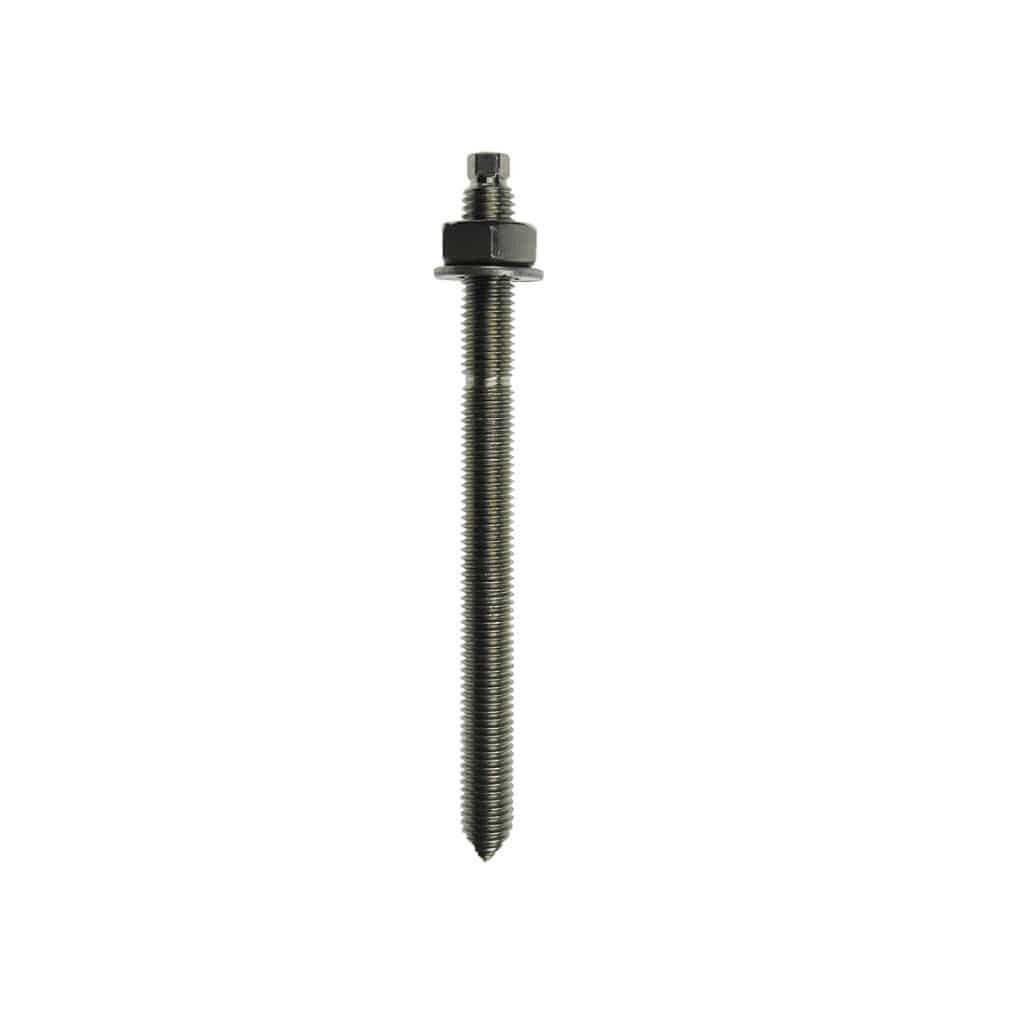

J-FIX STUDS A4 STAINLESS STEEL

Grade A4-316 stainless steel studs for use with J-Fix glass spin in capsules or J-Fix injection resin systems, supplied complete with nut and washer. The studs have external hexagon drive units with one drive unit in each box.

Material: A4-316 Stainless Steel
Witness Mark to Give Correct Setting Depth
Supplied with Setting Tool

Data SheetData Sheet

Product Information

  • Chemical Anchoring Systems

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Length (L) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
JSTUD08110SSA4 8 110 18 80
JSTUD10130SSA4 10 130 25 90
JSTUD12160SSA4 12 160 34 110
JSTUD16190SSA4 16 190 45 125
JSTUD20260SSA4 20 260 55 170
JSTUD24300SSA4 24 300 55 210
>
