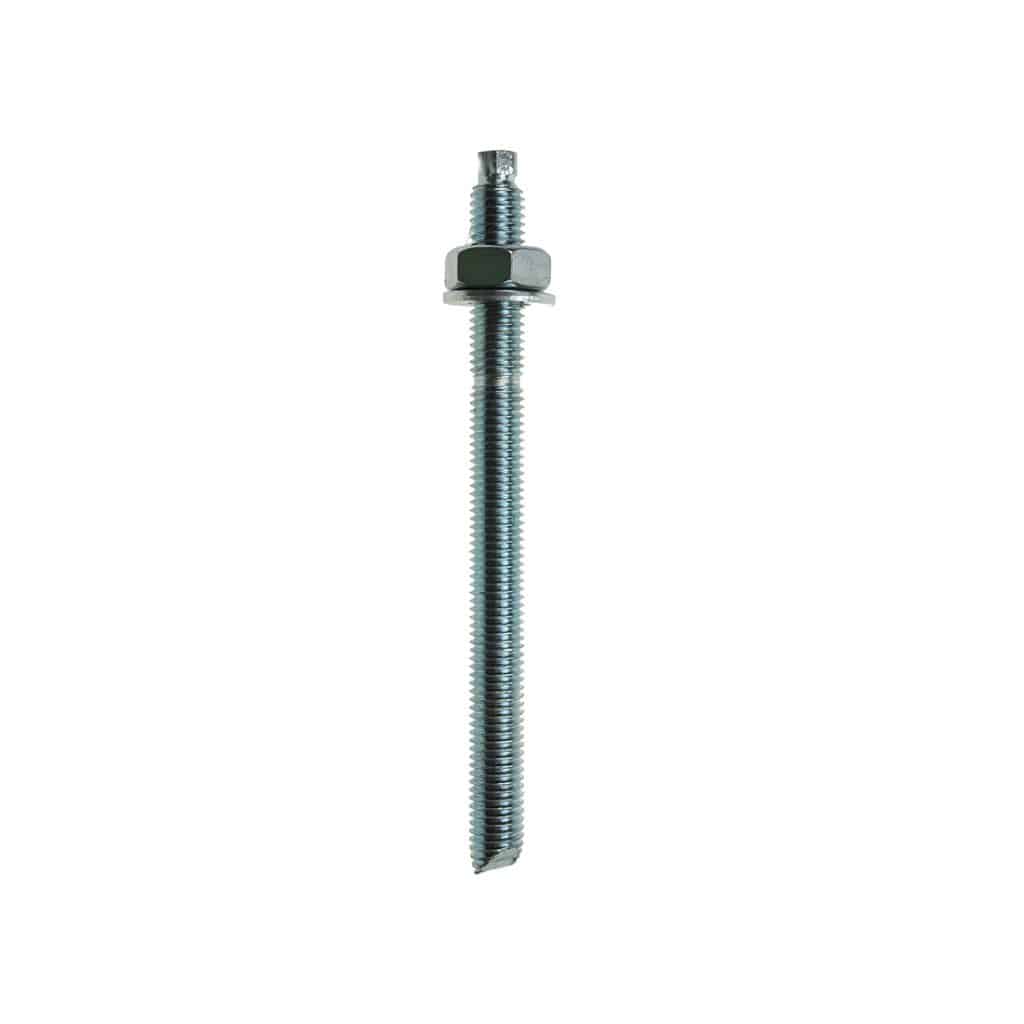

J-FIX STUDS BZP

Grade 5.8 BZP J-Fix Studs for use with J-Fix Glass Spin In Capsules or J-Fix Injection Resin System, supplied complete with nut and washer.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Chisel Point
Grade 5.8 Threaded Stud
Depth Mark Indicates Embedment Depth At Standard Embedment
Minimum 5µm
Supplied with Setting Tool

Data SheetData Sheet

Product Information

  • Chemical Anchoring Systems

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Length (L) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
JSTUD08110 8 110 18 80
JSTUD10130 10 130 25 90
JSTUD12160 12 160 34 110
JSTUD16190 16 190 45 125
JSTUD20260 20 260 55 170
JSTUD24300 24 300 55 210
JSTUD30380 30 380 55 280
>
