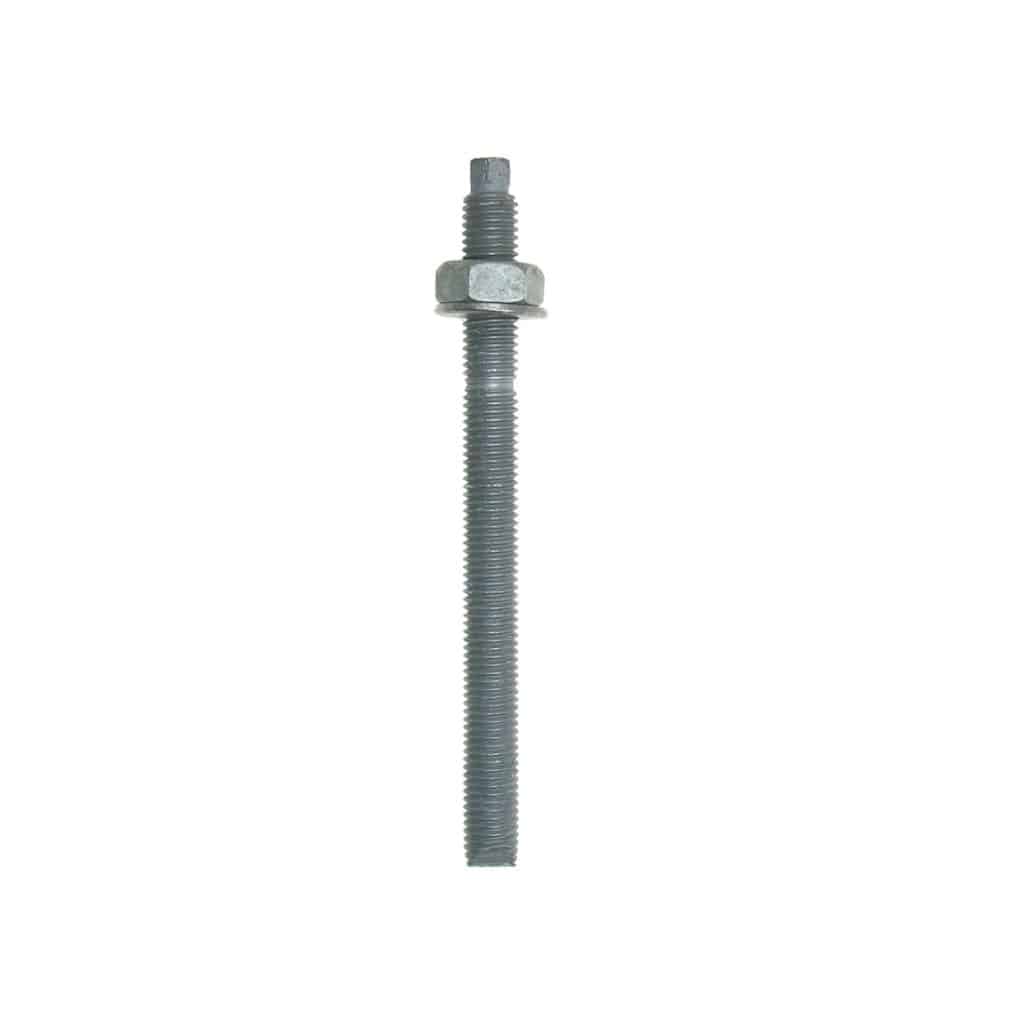

J-FIX STUDS GRADE 8.8 GALV

High tensile grade 8.8 hot dipped galvanised studs for use with J-Fix glass spin in capsules or J-Fix injection resin systems, supplied complete with nut and washer.

Finish: Hot Dipped Galvanised
Material: Grade 8.8 Steel
Chisel Point
Grade 8.8 Threaded Stud
Depth Mark Indicates Embedment Depth At Standard Embedment
BS EN ISO 1461:2009
Supplied with Setting Tool

Data SheetData Sheet

Product Information

  • Chemical Anchoring Systems

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Length (L) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
JSTUD08110GHT 8 110 18 80
JSTUD10130GHT 10 130 25 90
JSTUD12160GHT 12 160 34 110
JSTUD16190GHT 16 190 45 125
JSTUD20260GHT 20 260 55 170
JSTUD24300GHT 24 300 55 210
>
