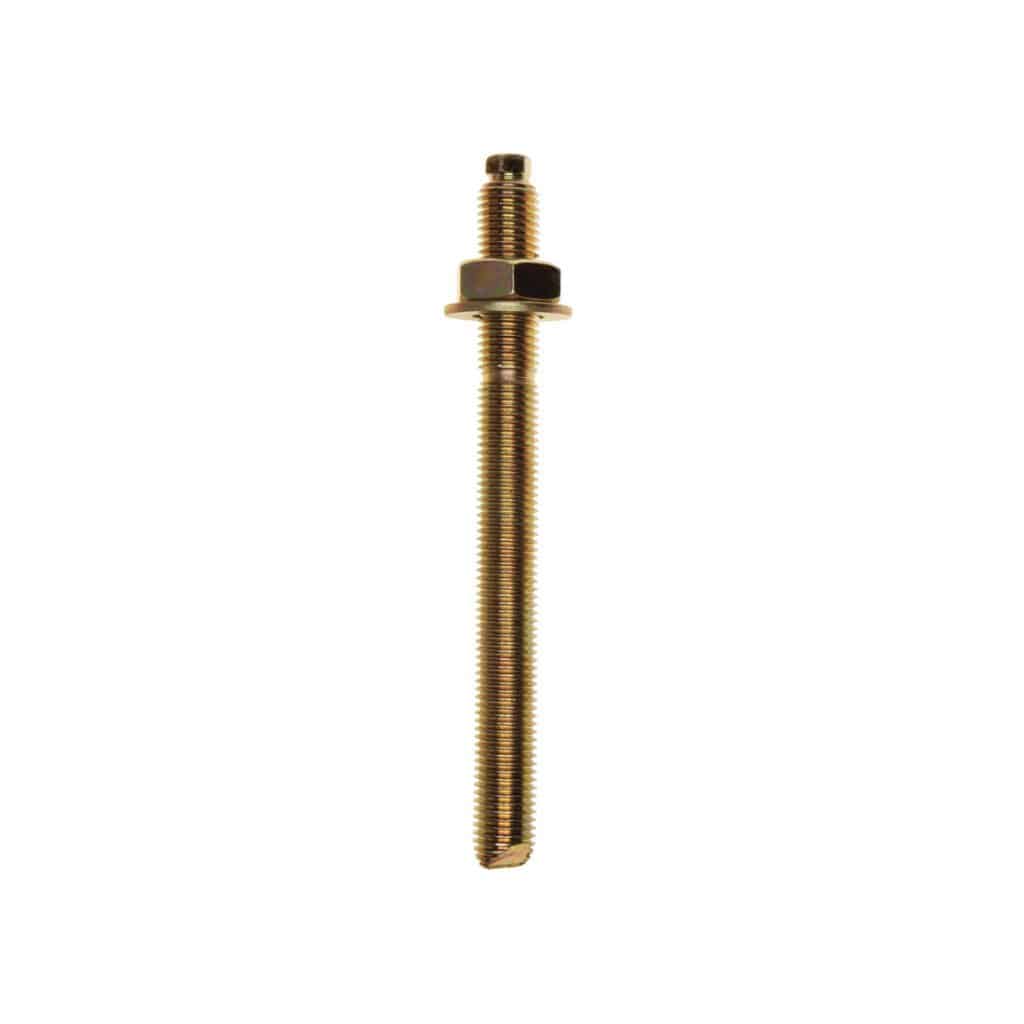

J-FIX HIGH TENSILE STUDS ZYP

High tensile grade 8.8 zinc and yellow passivated to 5 microns studs for use with J-Fix Glass Spin In Capsules or J-Fix Injection Resin Systems, supplied complete with nut and washer.

Finish: Zinc and Yellow Plated
Material: Grade 8.8 Steel
Chisel Point
Grade 8.8 Threaded Stud
Depth Mark Indicates Embedment Depth At Standard Embedment
Minimum 5µm
Supplied with Setting Tool

Data SheetData Sheet

Product Information

  • Chemical Anchoring Systems

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Length (L) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
JSTUD08110HT 8 110 18 80
JSTUD10130HT 10 130 25 90
JSTUD12160HT 12 160 34 110
JSTUD16190HT 16 190 45 125
JSTUD20260HT 20 260 55 170
JSTUD24300HT 24 300 55 210
JSTUD30380HT 30 380 55 280
>
