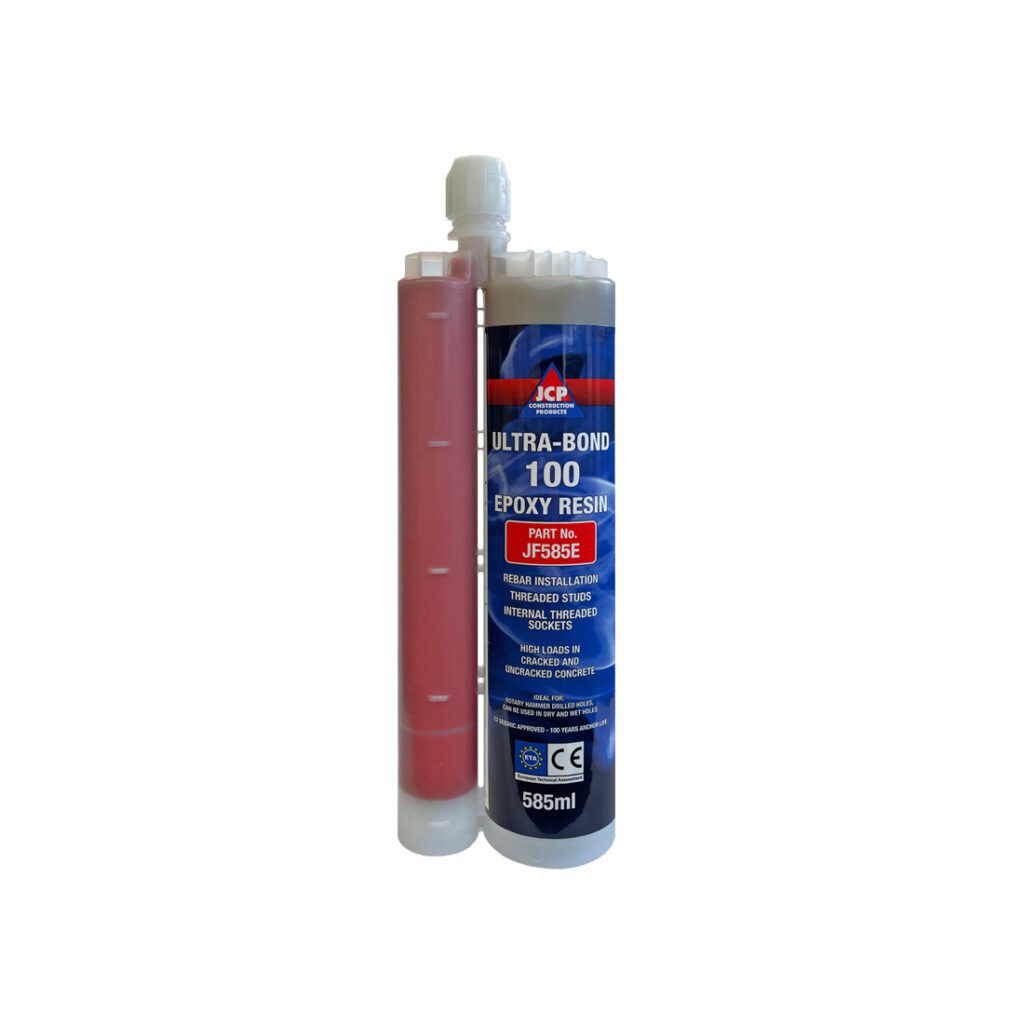

Tube of resin with JCP label on

J-FIX ULTRA-BOND 100 EPOXY RESIN

Ultra-Bond 100 epoxy resin is a formulation derived from pure epoxy with very high bond strength. The two-component chemical anchoring injection system in a 3:1 ratio can achieve high loads and is used for high-performance structural applications where loading is critical.

ETA Option 1 Approved
100 Years Working Life
Our Highest-strength resin
Expansion Free
Close spacing and edge distance
High-Performance

Data SheetData Sheet

Approvals

ETA accreditation
CE accreditation
SEISMIC accreditation
WRAS accreditation

Product Information

Concrete C20/25 To C50/60
Cracked Concrete
Non-Cracked Concrete
Dry/Wet/Flooded Holes

  • Racking Systems
  • Safety Barriers
  • Formwork Support Systems
  • Structural Steelwork
  • Masonry Support
  • Bolting Machinery
  • Juliet Balconies

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

ETAETA

Data SheetData Sheet

Certificate of ConformityCertificate of Conformity

Declaration of PerformanceDeclaration of Performance

WRAS ApprovalWRAS Approval

COSHH Safety Data SheetCOSHH Safety Data Sheet

Range Data

Part Number
Volume ml
Description
JF585E 585 Red Ultra-Bond Epoxy Resin in Cartridge + 1 Mixer Nozzle

Installation Instructions

Drill correct diameter hole to corresponding depth.

Clean hole by brushing, blowing to remove drilling debris and dust:
2×Blowing 2×Brushing 2×Blowing 2×Brushing 2×Blowing.

Attach nozzle to cartridge.
Extrude first part to waste until an even colour is achieved.
Fill hole 1/3 to 1/2 full starting from the bottom of the hole.

Insert stud into base material by hand using a twisting motion.

Allow resin to cure.
Attach fixture.
Tighten with torque wrench to recommended torque.

>
