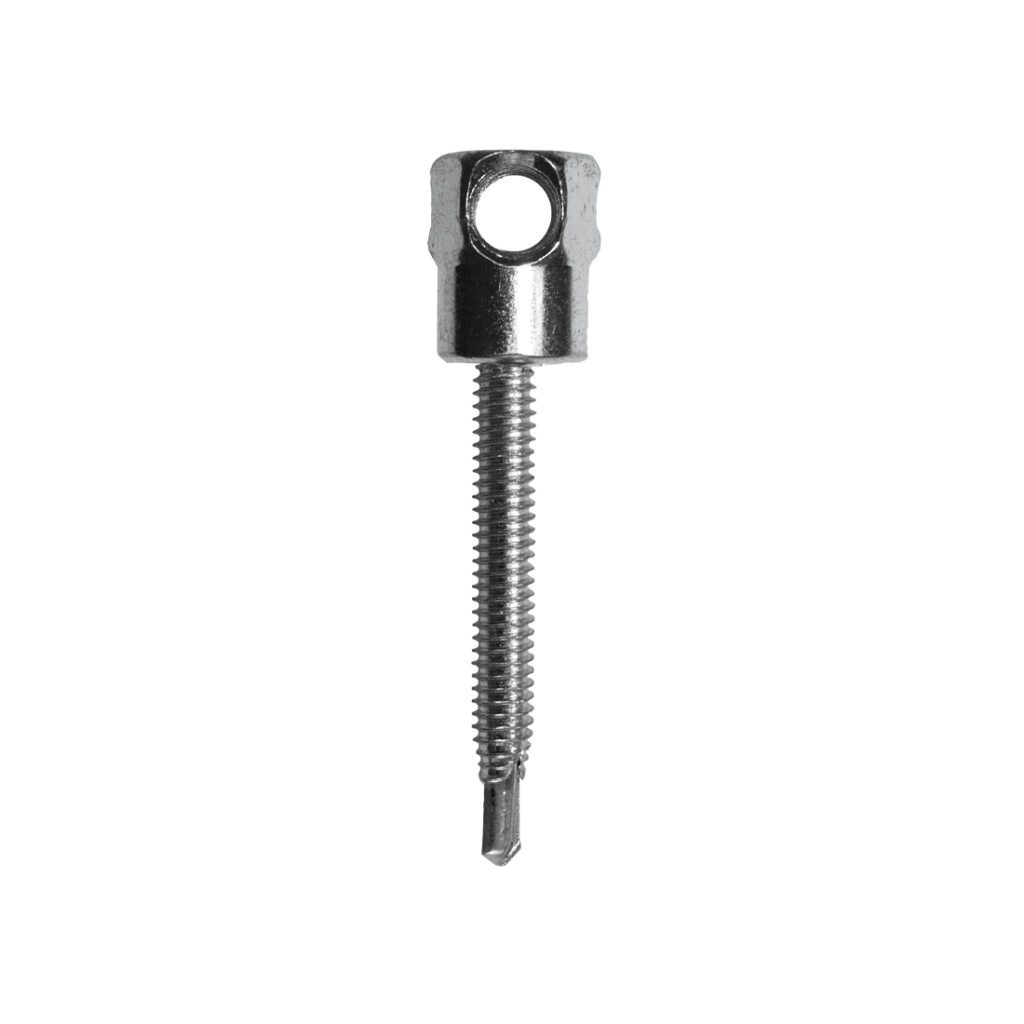

LIGHT SECTION METALFIX HORIZONTAL HANGERS

A self-drilling, internal threaded screw for fixing horizontally into purlins or light section steel between 1.2mm and 3.0mm for suspending vertical threaded rods. Supplied with back-nut for added security.

One Piece Internally Threaded Fastening System
Fast Overhead Installation With A Screwgun
For Hanging Threaded Rods From Purlins, Light Steel Or Heavy Steel
Supplied Complete With Back-Nut For Additional Security
All Steel

Data SheetData Sheet

Product Information

Steel

  • Suspending Threaded Rod Horizontally Overhead from Light Steel Beams
  • Pipe Hanging
  • Fire Protection
  • Electrical Conduit
  • Cable-Tray Applications

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) Inc
Length (L) mm
Point Type
Steel Thickness (tsteel)
Internal Threaded Diameter mm
Across Flats (A/F) Inches
MFL55M0825H 1/4" 25 3 1.2-3.0 8 5/8”
MFL55M1025H 1/4" 25 3 1.2-3.0 10 5/8”
MFL55M1038H 1/4" 38 3 1.2-3.0 10 5/8”
>
