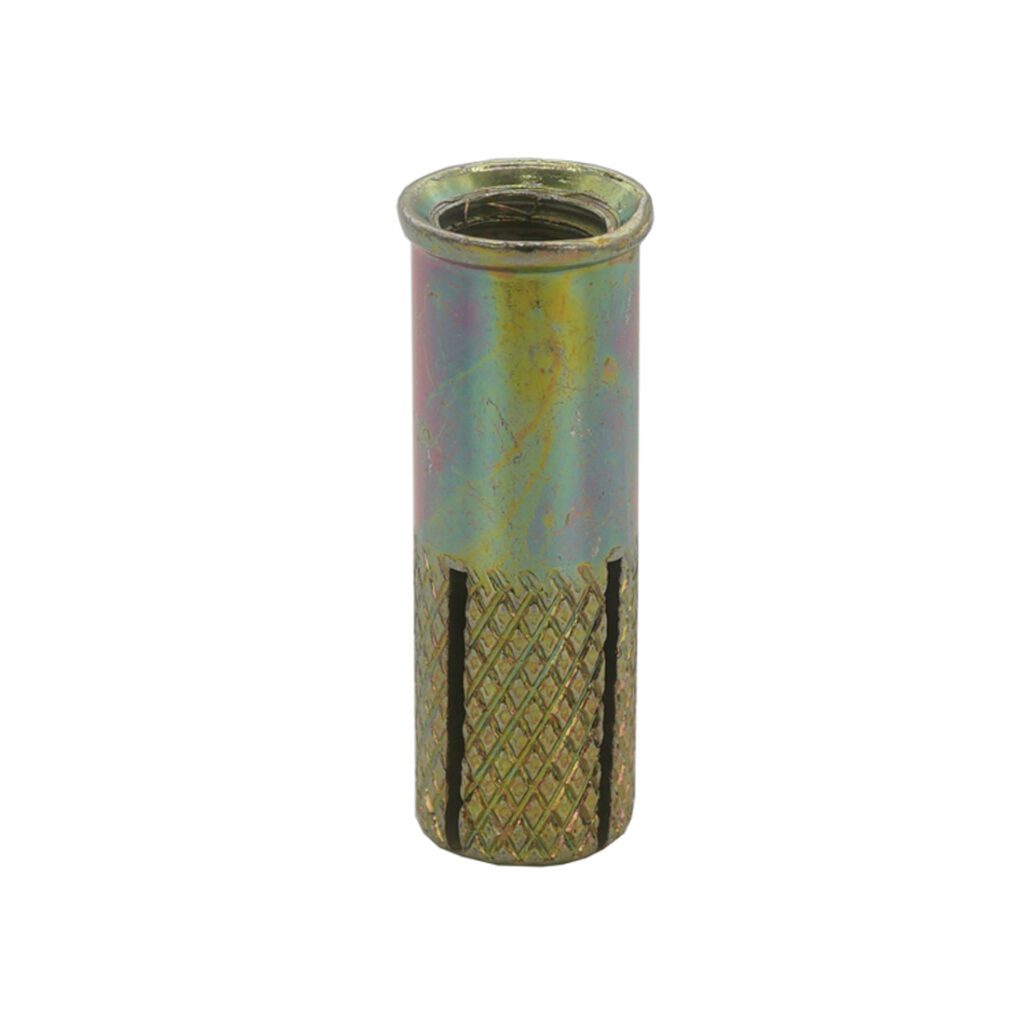

LIPPED DROP IN ANCHORS ZYP

An internally threaded socket anchor for use with bolts or threaded rod of any length. Lipped drop-in anchors can be accurately set independent of the hole depth and can be used in non-cracked concrete. The lip allows the anchor to sit flush against the surface, preventing the anchor from being inserted too far. Full expansion can be guaranteed by using the correct shouldered setting punch.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel

Fast and Secure Installation

Deformation-controlled Expansion

Reaction to Fire Class A1

Zinc Plated and Yellow Passivated Minimum 5µm

Permanent Socket Allows For Removal And Replacement of The Fixture

Data Sheet

Product Information

Concrete C20/25 to C50/60

Dry Internal Conditions

Non-Cracked Concrete

A Permanent Set Socket to Allow Fixture to be Removed
Lipped Version Allows the Anchor to only be Set Flush Avoiding Over Drilling
Scaffold Ring Bolts
Suspending Services with Threaded Rods and Bolts

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data Sheet

Range Data
Installation Instructions

Range Data

Part Number	Drill Hole Diameter (d₀) mm	Depth of Drill Hole (h₀) mm	Overall Embedment Depth (hnom=hef) mm	Anchor Length (L_H) mm	Thread Diameter (d_nom) mm	Internal Threaded Length (L_th) mm	Fixture Clearance Hole (d_f) mm	Minimum Member Thickness (h_min) mm	Setting Punch	Tightening Torque (T_inst) Nm
DBM06SH	8	25	25	25	6	10	7	100	DZSP06	4
DBM08SH	10	30	30	30	8	14	9	100	DZSP08	9
DBM10SH	12	30	30	30	10	15	12	100	DZSP10	17
DBM10SHL	12	40	40	40	10	15	12	130	DZSP10	17
DBM12SH	15	50	50	50	12	20	14	140	DZSP12	30
DBM16SH	20	65	65	65	16	22	18	160	DZSP16	75
