LOOSE BOLT SHIELD ANCHORS ZYP

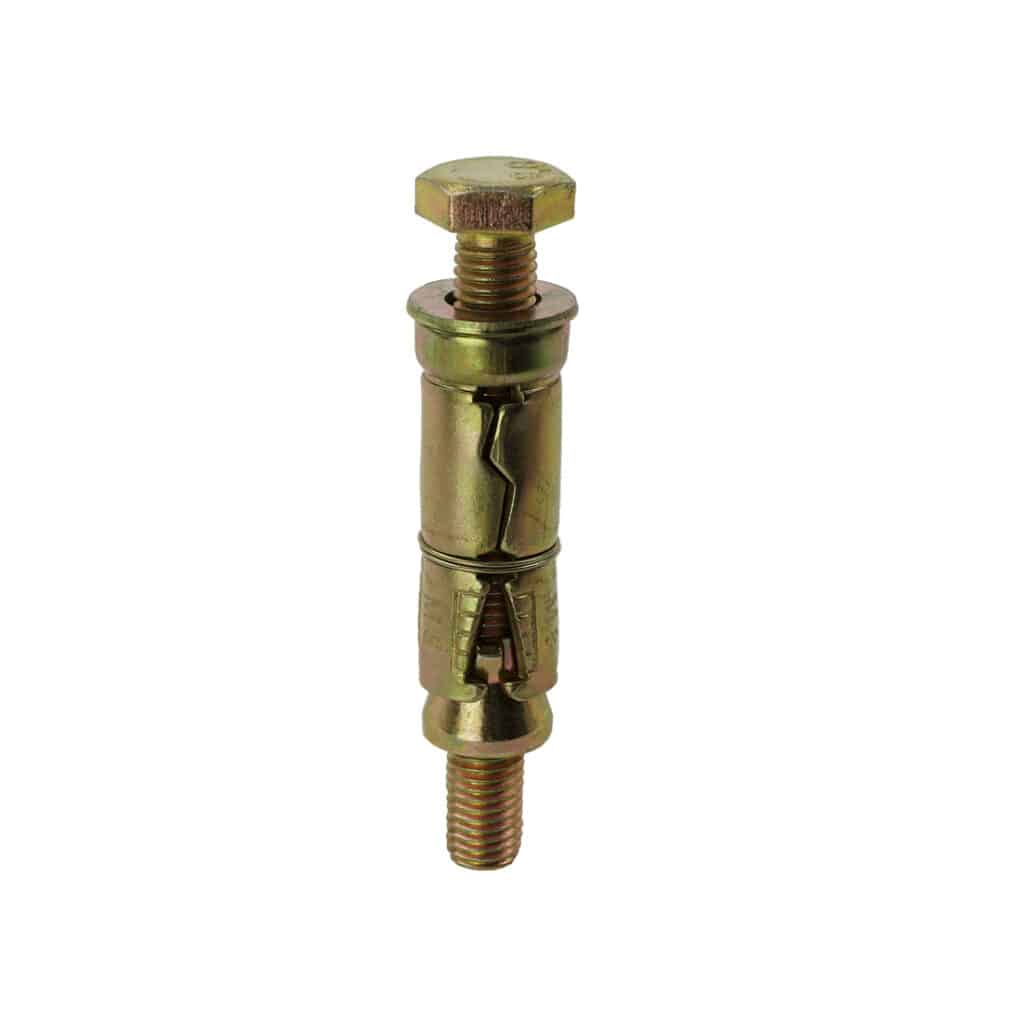

The loose bolt shield anchor is a three way expansion shield suitable for use in brick and concrete. The thick walls of the expanders give the anchor its exceptional grip and allow it to cater for oversized holes caused by powerful drills in weaker materials such as brick work.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
All Steel Anchor
Medium to Heavy Duty Loads
Torque Controlled Expansion

Product Information

Non-Cracked Concrete C20/25 & C50/60
Solid Brickwork
Solid Concrete Blocks

  • Security Shutters
  • Fencing
  • Gates
  • Fire Doors
  • Pipe and Ductwork

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Size
JP3147 M6 x 10mm
JP3150 M6 x 25mm
JP3153 M8 x 10mm
JP3156 M8 x 25mm
JP3159 M8 x 40mm
JP3162 M10 x 10mm
JP3165 M10 x 25mm
JP3168 M10 x 50mm
JP3171 M10 x 75mm

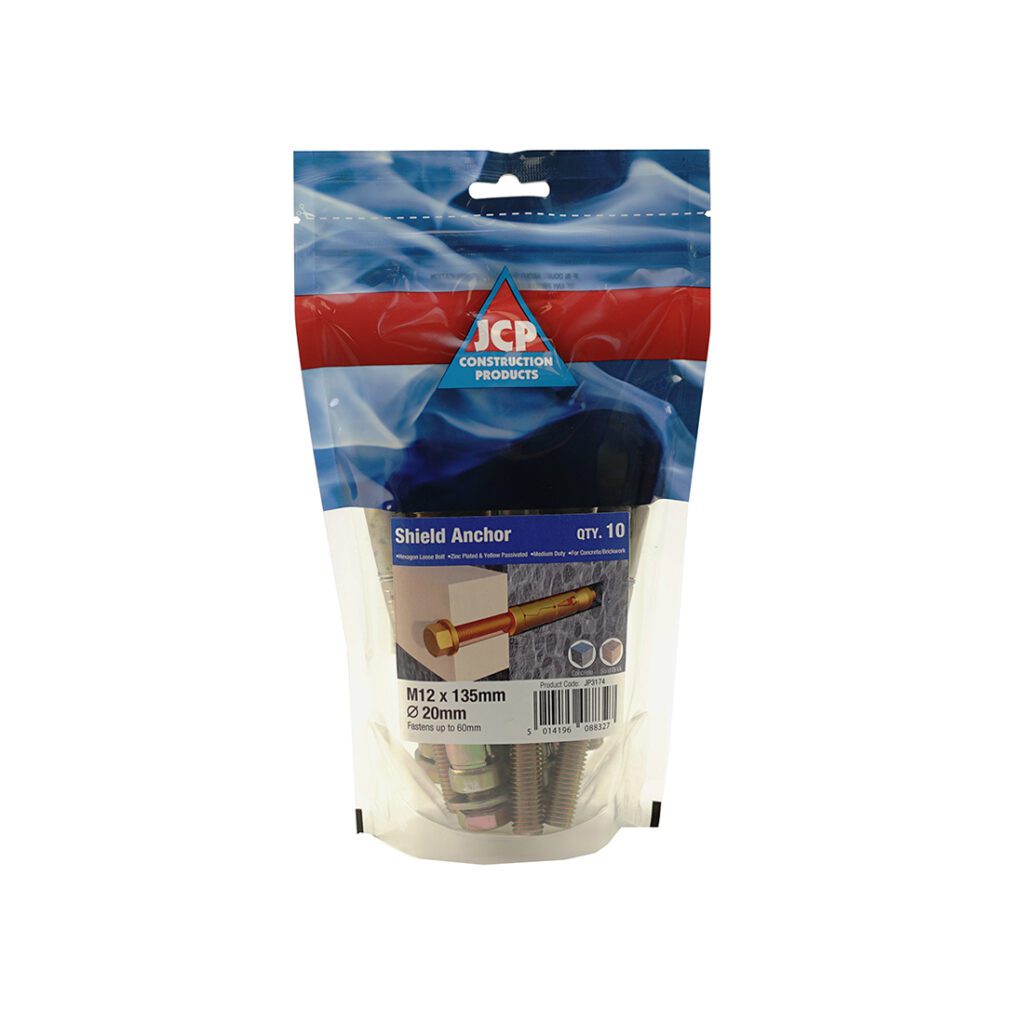

JP3174 M12 x 60mm

Installation Instructions

Drill correct diameter hole to correct depth.

Clean hole by brushing and blowing to remove all dust and drilling debris.

Insert assembled anchor through fixture into concrete.

Position fixture. Insert bolt.
Tighten with torque wrench to recommended torque.

>
