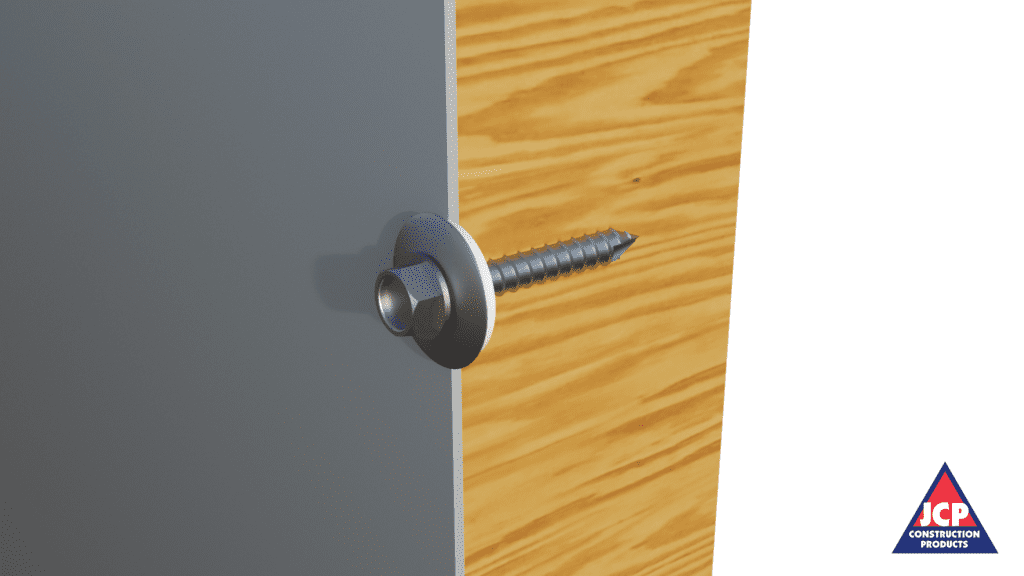

METALFIX GASH POINT SELF-DRILLING SCREWS BZP

Hexagon head gash point self-drilling screws for joining thin metal sheet to timber, supplied with a 16 or 19mm EPDM washer.

Finish: Bright Zinc Plated (BZP)
Material: Steel
For Fixing Steel To Timber
Supplied With 16mm or 19mm Washer
EPDM Washer To Prevent Water Ingress
Gash Point for Quick Penetration
Hexagon Head
Sharp Threads Ensure a Low Torque and Strong Fixing
Minimum 8µm
High-Clamping Action

Product Information

  • Fixing Steel Sheets to Timber

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Range Data

Part Number
Thread Diameter (dnom) mm
Length (L) mm
Steel Thickness (tsteel)
Max Fixture Thickness (tfix) mm
Washer Diameter (d2) mm
GP6303216W 6.3 32 0.7-1.4 1 16
GP6304516W 6.3 45 0.7-1.4 5 16
GP6306016W 6.3 60 0.7-1.4 15 16
GP6308016W 6.3 80 0.7-1.4 35 16
GP6310016W 6.3 100 0.7-1.4 55 16
GP6312516W 6.3 125 0.7-1.4 80 16
GP6302519W 6.3 25 0.7-1.4 1 19
GP6303219W 6.3 32 0.7-1.4 1 19
GP6304519W 6.3 45 0.7-1.4 5 19
GP6306019W 6.3 60 0.7-1.4 15 19
GP6308019W 6.3 80 0.7-1.4 35 19
GP6310019W 6.3 100 0.7-1.4 55 19
GP6312519W 6.3 125 0.7-1.4 80 19
GP6315019W 6.3 150 0.7-1.4 105 19
>
