Data Sheet
Data SheetRange Data
| Part Number |
Thread Diameter
(dnom) mm
|
Length
(L) mm
|
Point Type
|
Steel Thickness
(tsteel)
|
Max Fixture Thickness
(tfix) mm
|
Washer Diameter
(d2) mm
|
Description
|
|---|---|---|---|---|---|---|---|

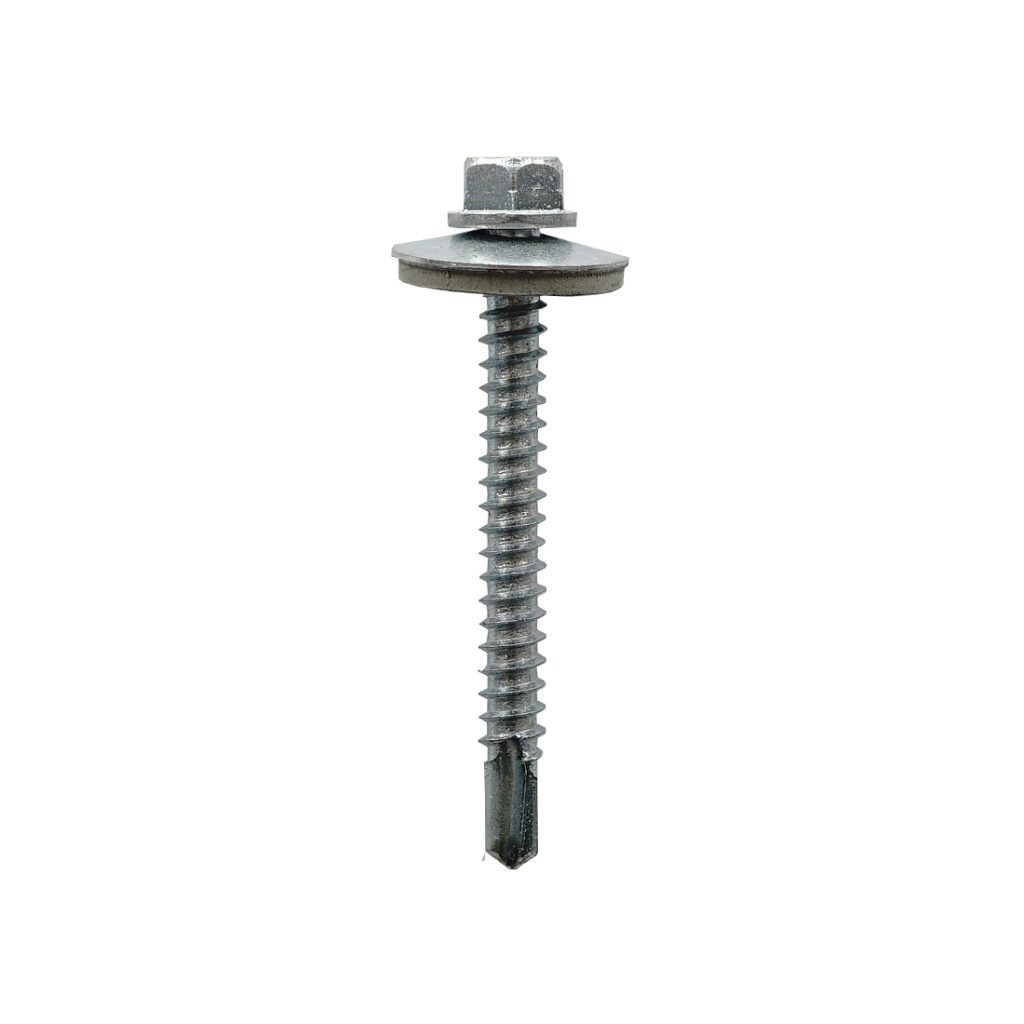

| MFL55025W19 | 5.5 | 25 | 3 | 1.2-3.0 | 7 | 19 | Light Section |
| MFL55032W19 | 5.5 | 32 | 3 | 1.2-3.0 | 14 | 19 | Light Section |
| MFL55038W19 | 5.5 | 38 | 3 | 1.2-3.0 | 20 | 19 | Light Section |
| MFL55050W19 | 5.5 | 50 | 3 | 1.2-3.0 | 32 | 19 | Light Section |
| MFL55075W19 | 5.5 | 75 | 3 | 1.2-3.0 | 57 | 19 | Light Section |

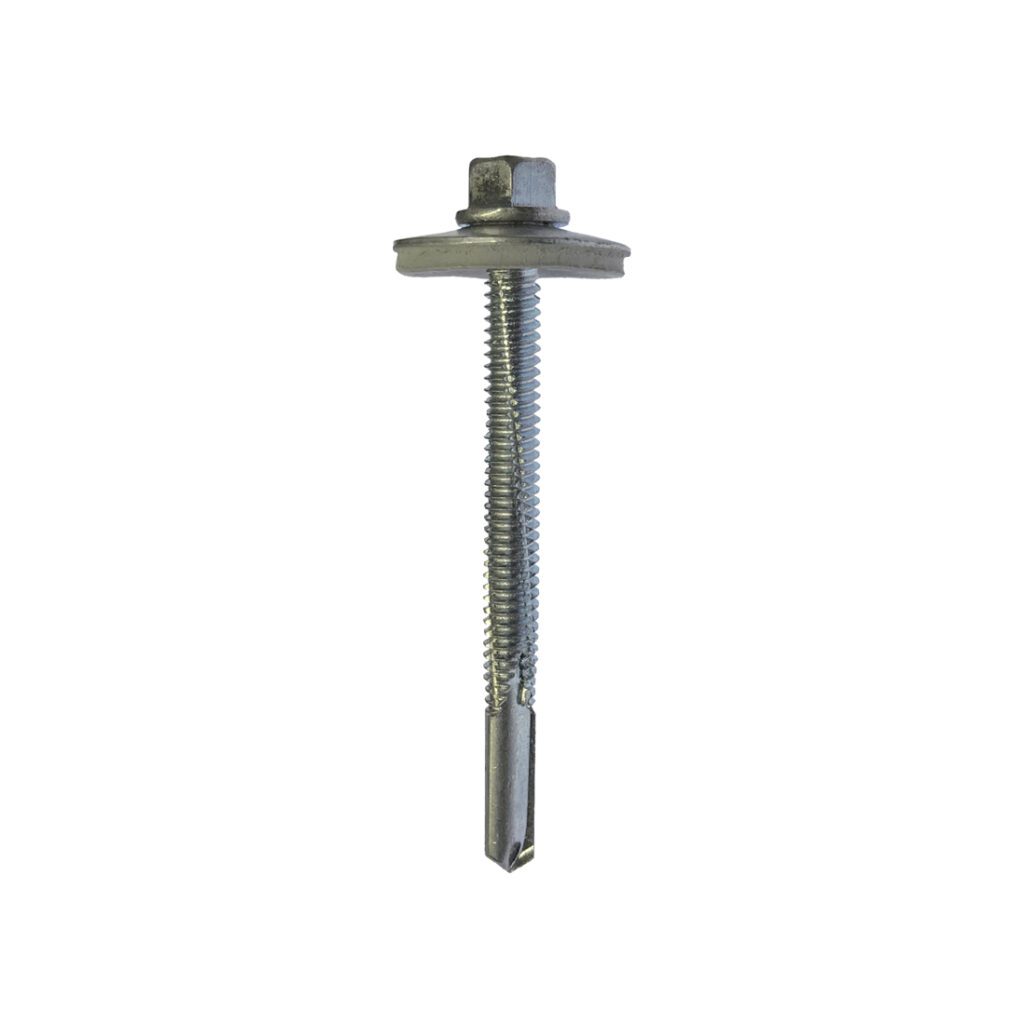

| MFH55022W19 | 5.5 | 22 | 4 | 3.0-6.0 | 1.2 | 19 | Heavy Section |
| MFH55032W19 | 5.5 | 32 | 5 | 4.0-12.5 | 2 | 19 | Heavy Section |
| MFH55040W19 | 5.5 | 40 | 5 | 4.0-12.5 | 10 | 19 | Heavy Section |
| MFH55050W19 | 5.5 | 50 | 5 | 4.0-12.5 | 20 | 19 | Heavy Section |
| MFH55060W19 | 5.5 | 60 | 5 | 4.0-12.5 | 30 | 19 | Heavy Section |
| MFH55070W19 | 5.5 | 70 | 5 | 4.0-12.5 | 40 | 19 | Heavy Section |
| MFH55080W19 | 5.5 | 80 | 5 | 4.0-12.5 | 50 | 19 | Heavy Section |
| MFH55100W19 | 5.5 | 100 | 5 | 4.0-12.5 | 70 | 19 | Heavy Section |
| MFH55120W19 | 5.5 | 120 | 5 | 4.0-12.5 | 90 | 19 | Heavy Section |
