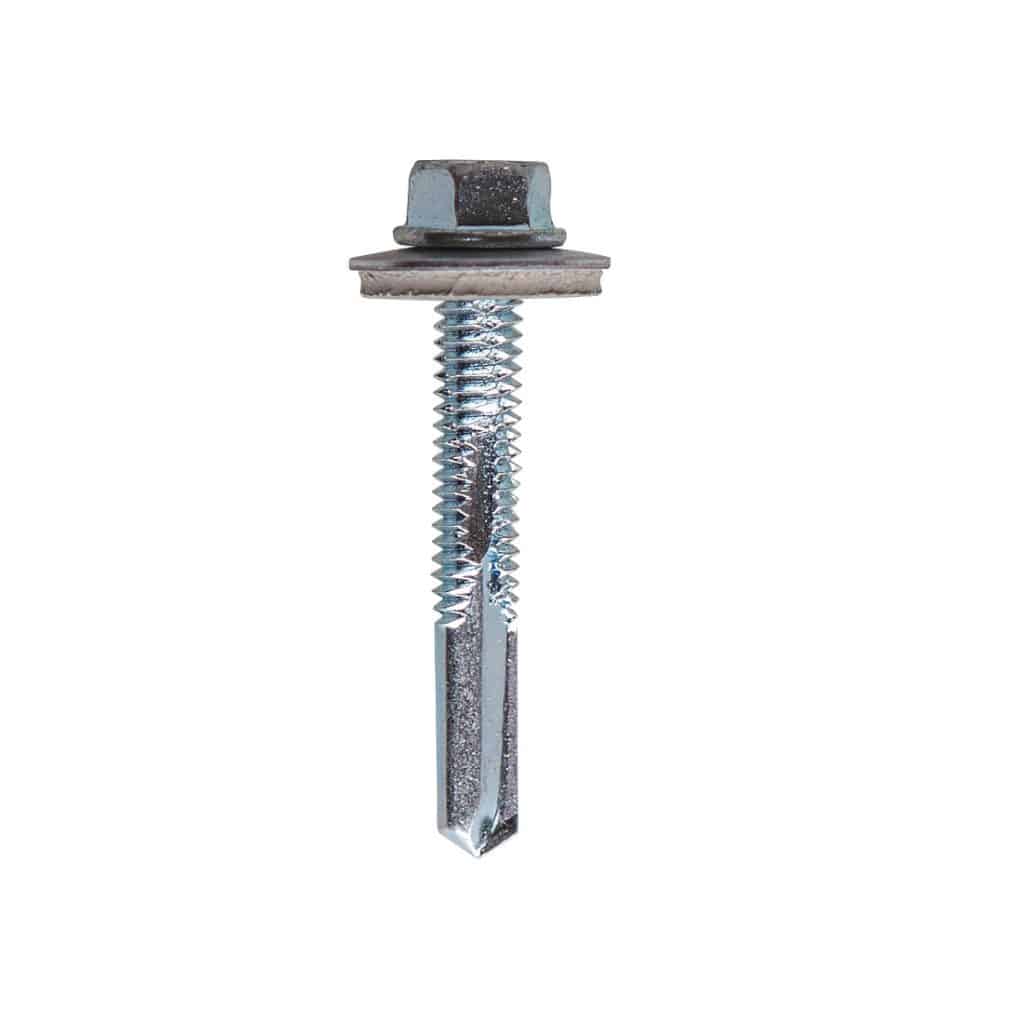

METALFIX WITH WASHER BI-METAL A2 STAINLESS STEEL

Bi-Metallic A2 stainless steel hexagon head self-drilling screws for fixing steel to steel, supplied with a 16mm EPDM washer.

Material: A2-304 Stainless Steel
For Fixing Steel And Steel
Supplied with 16mm Washer for General Purpose Applications
EPDM Washer to Prevent Water Ingress
For General Purpose Applications
Hexagon Head
High-Clamping Action
Stainless Steel Provides Excellent Corrosion Resistance

Data SheetData Sheet

Product Information

  • Roofing and Cladding Applications Where a Watertight Seal is Required
  • Use in External Conditions

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Thread Diameter (dnom) mm
Length (L) mm
Point Type
Steel Thickness (tsteel)
Max Fixture Thickness (tfix) mm
Washer Diameter (d2) mm
Description
MFL55022SSW16 5.5 22 3 1.2-3.0 2 16 Light Section
MFL55025SSW16 5.5 25 3 1.2-3.0 7 16 Light Section
MFL55032SSW16 5.5 32 3 1.2-3.0 14 16 Light Section
MFL55038SSW16 5.5 38 3 1.2-3.0 20 16 Light Section
MFL55050SSW16 5.5 50 3 1.2-3.0 32 16 Light Section
MFH55038SSW16 5.5 38 5 4.0-12.5 8 16 Heavy Section
MFH55050SSW16 5.5 50 5 4.0-12.5 20 16 Heavy Section
>
