NAIL IN SOCKETS

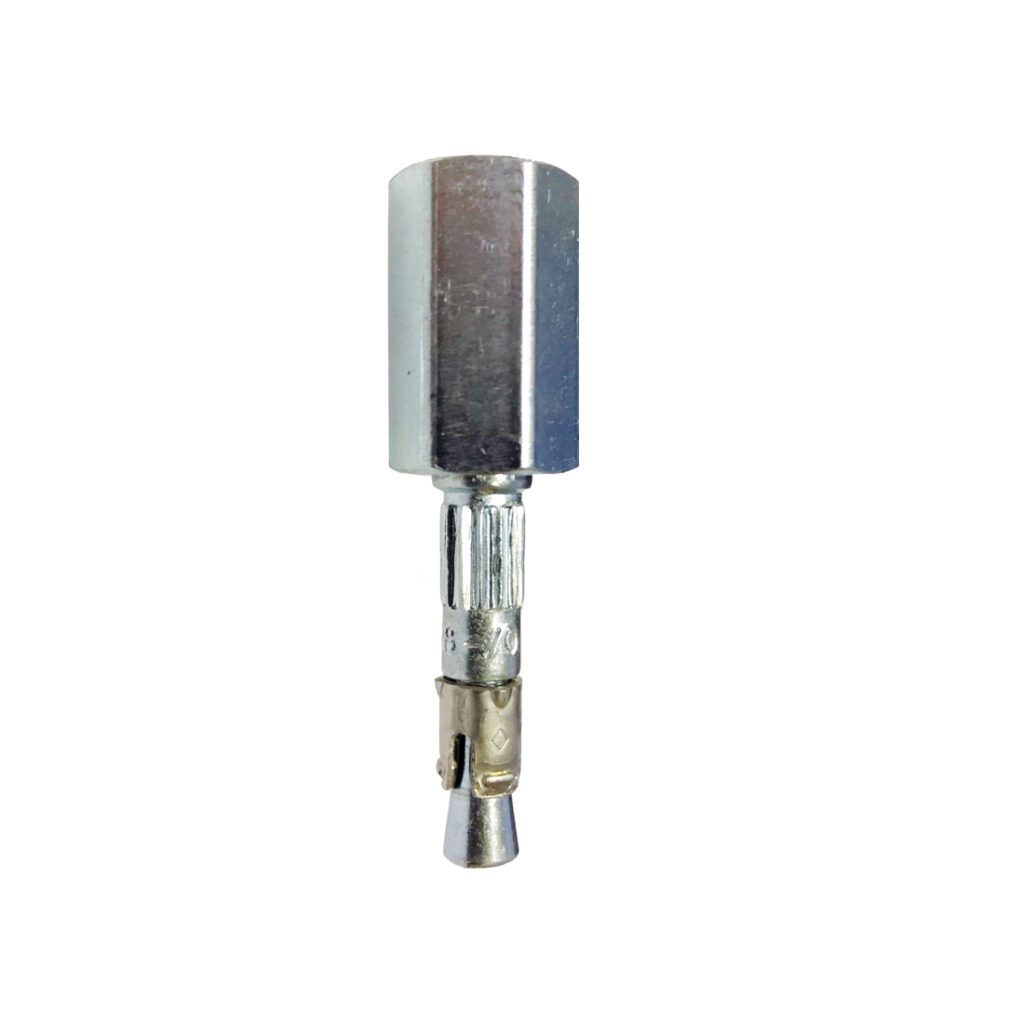

The nail in socket is a hammer in dual thread anchor for multiple use in non-structural concrete applications. An M8 and M10 dual-thread socket that is simply hammered into the base material.
The fast and accurate installation along with the auto-expansion feature provides a rapid secure fixing.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
Fast and Secure Installation
Auto Expanding Action
No Torque Wrench Required
Fire Resistant Classification R120
Reaction to Fire Class A1

Data SheetData Sheet

Approvals

ETA accreditation
FR accreditation
CE accreditation

Product Information

Concrete C12/15
Concrete C20/25 To C50/60
Cracked/Non-Cracked Concrete
Lightweight Suspended Ceilings

  • Ceiling Constructions
  • Piping
  • Cladding

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Drill Hole Diameter (d0) mm
Hole Depth
Overall Length mm mm
Effective Embedment Depth (hef) mm
M8 Internal Thread Length (lTh) mm
M10 Internal Thread Length (lTh) mm
Width Across Flats (A/F) mm
NAS0625 6 35 63 25 7 10 13
NAS0630 6 40 58 30 7 10 13

Installation Instructions

Drill correct diameter hole to corresponding depth.

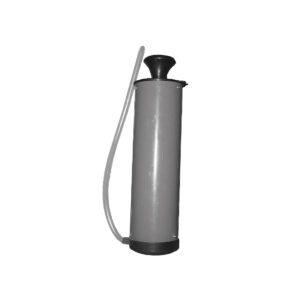

Clean hole by blowing to remove drilling debris and dust.

Check the coupling nut is completely tightened. Insert anchor into concrete by using a suitable hammer.

Use the desired threaded rod.

>
