COUNTERSUNK NYLON FRAME FIXINGS ZYP

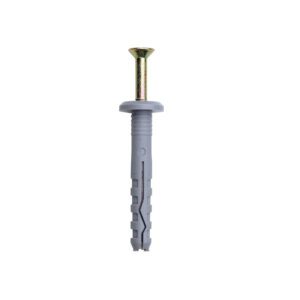

The nylon frame fixing includes a matched screw and extended plug for anchoring timber to a wide variety of materials. For fixing timber frames, battens, windows and other wooden products.

Finish: Zinc and Yellow Plated (ZYP)
Material: Steel
For Use In Solid Base Materials
Countersunk Head Gives A Flush Finish
Strong Grip In Weaker Materials
Through Fixing
High-Expansion Ratio
Ribbed Plug Manufactured From Polyamide PA6 Nylon

Data SheetData Sheet

Product Information

Non-Cracked Concrete
Masonry

  • Timber Frames
  • Battens
  • Windows and Other Wooden Products to Concrete and Masonry

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Range Data

Part Number
Anchor Hole Size (d0) mm
Anchor Plug Length (Lplug) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
NFF08060 8 60 20 45
NFF08080 8 80 40 45
NFF08100 8 100 60 45
NFF08120 8 120 80 45
NFF10080 10 80 35 50
NFF10100 10 100 55 50
NFF10120 10 120 75 50
NFF10140 10 140 95 50
NFF10160 10 160 115 50

Installation Instructions

Drill correct diameter hole through fixture to correct depth in base material.

Clean hole by brushing and blowing.

Insert frame fixing through fixture into base material and tighten screw.

>
