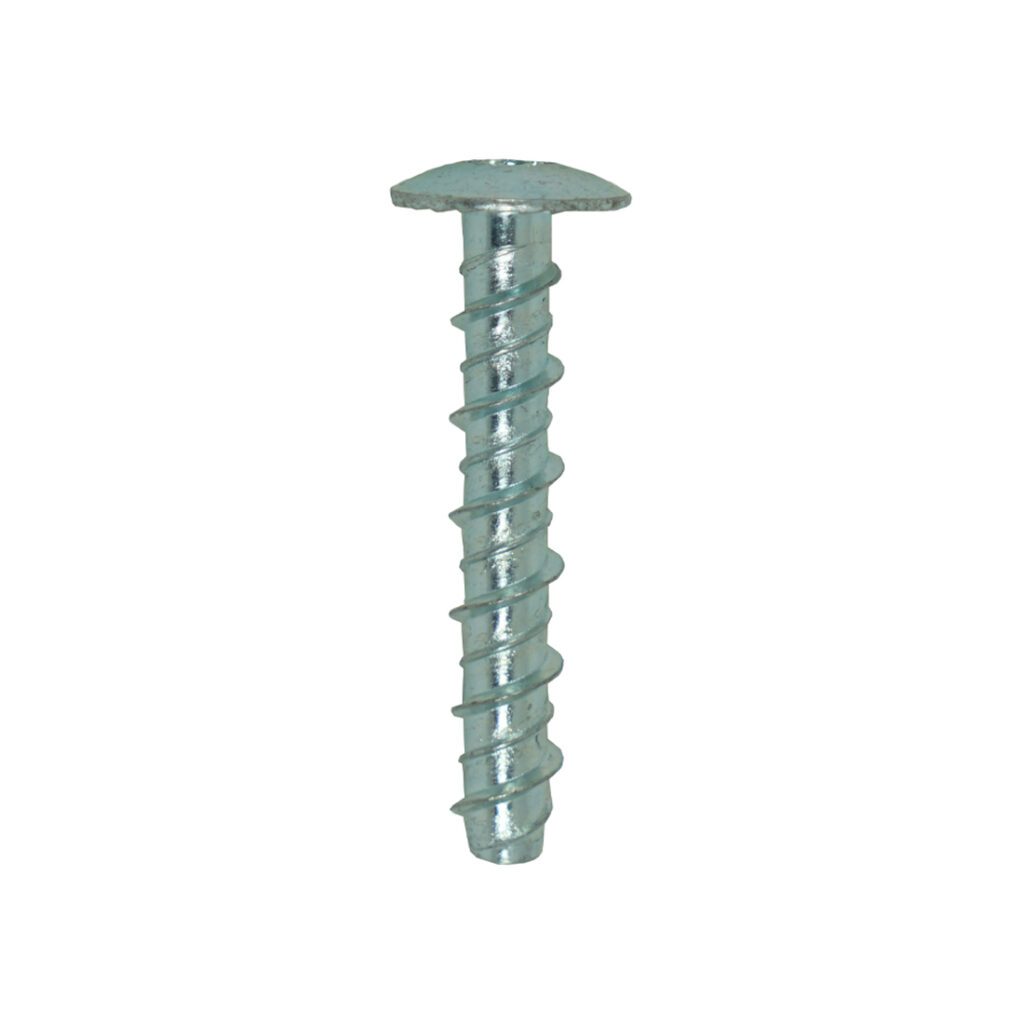

PAN HEAD ANKERBOLTS BZP

The pan head ankerbolt is a self-tapping anchor for use in a variety of base materials. The pan head gives a wider bearing area to give greater contact with the fixture. The undercutting action provides a positive anchorage with no expansion forces.

Finish: Bright Zinc Plated (BZP)
Material: Steel
Fast and Secure Installation
Expansion Free
Undercutting Action
Through Fixing
High Performance
Zinc Plated Minimum 5µm (For Dry, Internal Applications Only)

Data SheetData Sheet

Product Information

Concrete C20/25 To C50/60
Non-Cracked Concrete
Hollow Concrete Planks
Solid Brickwork
Concrete Block
Natural Stone

  • Railings and Handrails
  • Wooden Beams
  • Brackets
  • Pipeline and Cable Routes
  • Suspended Ceilings
  • Temporary Fastening on Sites

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Visit the Owlett-Jaton Website

Downloads

Data SheetData Sheet

Shallow Embedment

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (LH) mm
Fixture Clearance Hole (df) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Min. Structure Thickness (hc) mm
Drive Size
Tightening Torque (Tinst) Nm
JAB05/06050PH 5 6 50 8 25 35 25 100 Torx Drive T25 15
JAB05/06075PH 5 6 75 8 50 35 25 100 Torx Drive T25 15
JAB05/06100PH 5 6 100 8 75 35 25 100 Torx Drive T25 15
JAB06/08030PH 6 8 30 10 5 35 25 100 Torx Drive T30 25
JAB06/08050PH 6 8 50 10 20 40 30 100 Torx Drive T30 25
JAB06/08075PH 6 8 75 10 45 40 30 100 Torx Drive T30 25
JAB06/08100PH 6 8 100 10 70 40 30 100 Torx Drive T30 25

Deep Embedment

Part Number
Drill Hole Diameter (d0) mm
Thread Diameter (dnom) mm
Anchor Length (L) mm
Fixture Clearance Hole (df) mm
Max Fixture Thickness (tfix) mm
Min Hole Depth (h1) mm
Embedment Depth (hnom) mm
Min. Structure Thickness (hc) mm
Driver Size
Tightening Torque (Tinst) Nm
JAB05/06050PH 5 6 50 8 13 50 37 100 Torx Drive T25 15
JAB05/06075PH 5 6 75 8 38 50 37 100 Torx Drive T25 15
JAB05/06100PH 5 6 100 8 63 50 37 100 Torx Drive T25 15
JAB06/08030PH 6 8 30 10 N/A 55 45 100 Torx Drive T30 25
JAB06/08050PH 6 8 50 10 40 55 45 100 Torx Drive T30 25
JAB06/08075PH 6 8 75 10 30 55 45 100 Torx Drive T30 25
JAB06/08100PH 6 8 100 10 55 55 45 100 Torx Drive T30 25

Installation Instructions

Position fixture and drill correct diameter hole to corresponding depth by using the rotary hammer drilling mode.

Clean hole by blowing to remove drilling debris and dust.

Insert anchor through fixture into concrete using suitable impact wrench and stop before the anchor touches the fixture.

Finish by tightening with torque wrench to recommended torque.

>
