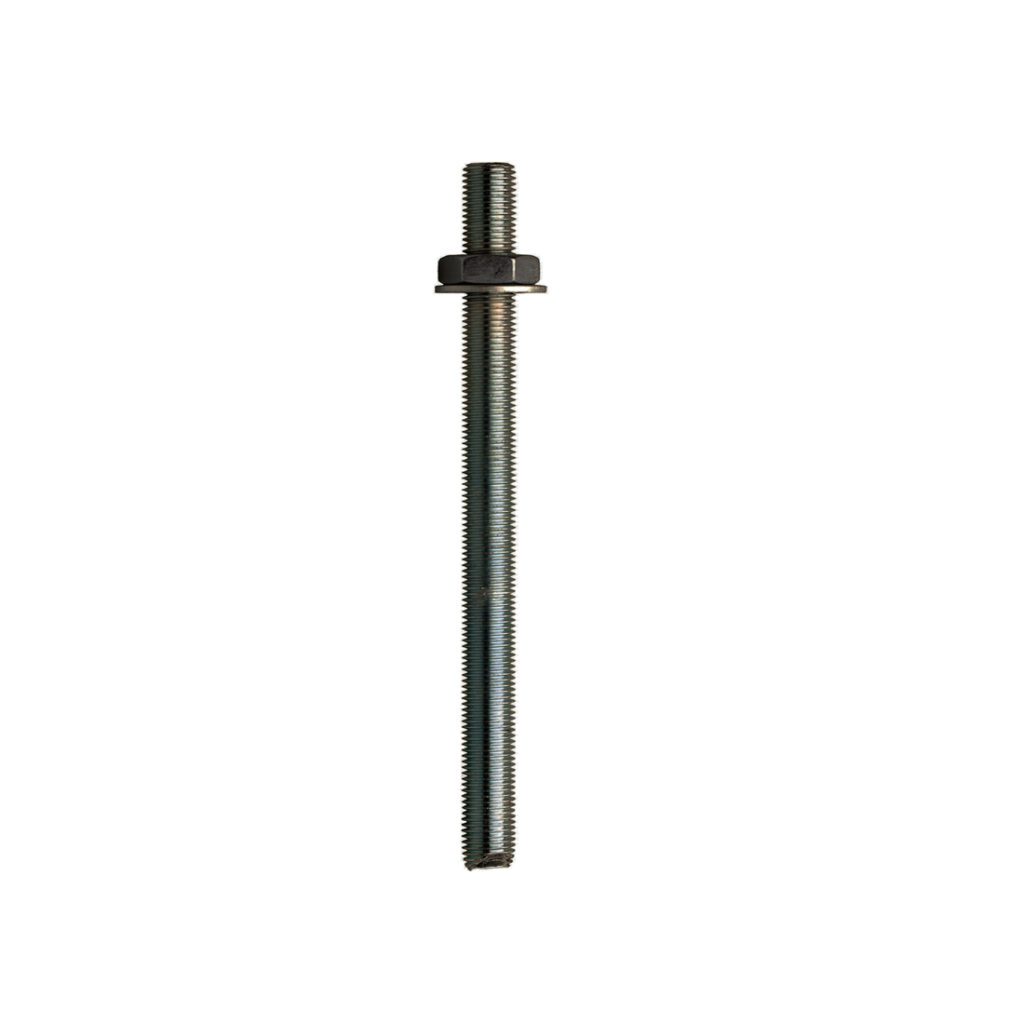

PLAIN ENDED J-FIX STUDS A4 STAINLESS STEEL

Stainless steel grade A4-316 plain ended studs for use with injection resin.

Material: A4-316 Stainless Steel

Plain Ended

For Use with Injection Resin

Product Information

JCP distributors can view pricing, check stock levels and place orders on the Owlett-Jaton website.

Datasheet

Part Number	Thread Diameter (d_nom) mm	Length (L) mm	Min Hole Depth (h₁) mm	Max Fixture Thickness (t_fix) mm
JSTUD08150PESS	8	150	80	62
JSTUD10105PESS	10	105	90	5
JSTUD10150PESS	10	150	90	50
JSTUD10200PESS	10	200	90	100
JSTUD12110PESS	12	110	-	-
JSTUD12150PESS	12	150	110	27
JSTUD12200PESS	12	200	110	77
JSTUD16110PESS	16	110	-	-
JSTUD16250PESS	16	250	128	104
JSTUD16350PESS	16	350	128	204
JSTUD20200PESS	20	200	170	9
JSTUD20400PESS	20	400	170	209
